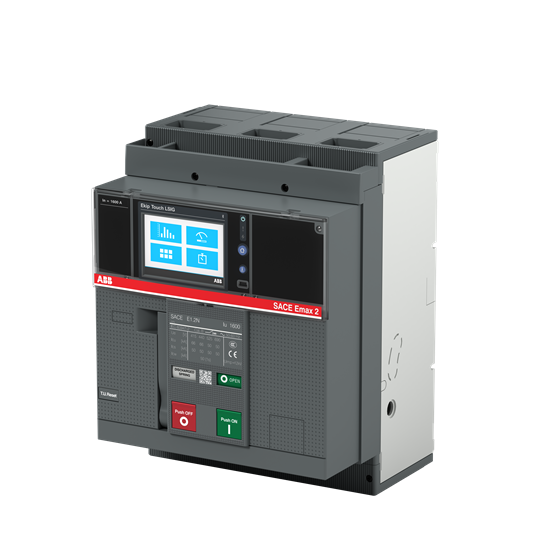

1SDA070708R1 ABB - E1.2B 630 Ekip Hi-Touch LSI 3p F F

1SDA070708R1 ABB - E1.2B 630 Ekip Hi-Touch LSI 3p F F

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 76.4 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
34c13e8b-37b2-4660-8689-a18a34fc494f Italy
Simplified SCIP:
b05824a6-aad9-4e9d-96c5-845c239476d4 Poland
a8db667f-7baf-4179-a18c-eac0e27bf822 Sweden
2bae2921-1cf8-4a51-bed5-075516ee048a Finland
989103fe-0b17-46fd-b41b-acf6f9b271f0 Denmark
75872ad8-0cbc-41de-bef5-52045afa236f Portugal
7e7c189c-4a77-4fb4-b343-b374d4fc1ff2 Germany
4497cb59-ffac-4933-9568-bdb7dc4f5e77 Norway
9f219d8a-fa03-441d-ba85-e2b8baaeee9c Belgium
2a14dc5d-0766-4e58-aa1a-43c1165b1773 Belgium
364cc871-7192-4671-8092-55e8f8a9df94 Germany
938c987b-4cf0-455b-839c-01209bad507d Bulgaria
c5117865-8c81-4287-bae7-9500807d62d2 Greece
5ca59db2-2c92-46ae-a269-781381240511 Germany
b95871b9-2606-444b-a25c-c8ad94233cd2 Croatia
d52bd63d-7970-4a9e-89a4-9890424214c2 Poland
3b4a750d-0a47-4d0c-ae82-85c9f7d313ea Netherlands
1e2f70ef-d9d1-4451-9706-8c322d62bc74 Poland
ef43fca2-34b4-4b7d-b645-26d8ee178aba France
d9b74fa1-2e9b-4591-b8be-0a6727f1e975 Germany
1c793145-b531-4d9c-977f-e5032d9252c0 Hungary
e1fe2592-ab14-45be-a0d3-f5123a31bdbd Sweden
0a83b364-4cc5-4093-b436-fe68e15d6799 Czech Republic
1d5a2d83-d0ce-4a9e-a6b3-4c3da8ff7c20 Germany
6626f7d7-4037-4bbc-95c0-6f6433efdda9 Hungary
d4255f1a-ef5f-4a58-81bc-134004089973 Spain
ad6adb9c-f67c-4cf7-aa22-b91451f0aa2e France
06d95105-3cf7-42ec-8d3e-032943272976 Estonia
b05824a6-aad9-4e9d-96c5-845c239476d4 Poland
a8db667f-7baf-4179-a18c-eac0e27bf822 Sweden
2bae2921-1cf8-4a51-bed5-075516ee048a Finland
989103fe-0b17-46fd-b41b-acf6f9b271f0 Denmark
75872ad8-0cbc-41de-bef5-52045afa236f Portugal
7e7c189c-4a77-4fb4-b343-b374d4fc1ff2 Germany
4497cb59-ffac-4933-9568-bdb7dc4f5e77 Norway
9f219d8a-fa03-441d-ba85-e2b8baaeee9c Belgium
2a14dc5d-0766-4e58-aa1a-43c1165b1773 Belgium
364cc871-7192-4671-8092-55e8f8a9df94 Germany

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
Z1BNEEBJ200A000000XX
EAN:
8015644745585
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
210 mm
Product Net Height:
296 mm
Product Net Depth / Length:
183 mm
Product Net Weight:
14 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
270 mm
Package Level 1 Height:
350 mm
Package Level 1 Depth / Length:
330 mm
Package Level 1 Gross Weight:
16 kg
Package Level 1 EAN:
8015644745585

Additional Information

Product Main Type:
SACE Emax 2
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 8000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Ue =< 440 V 8000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability:
20000 cycle
60 cycles per hour
20000 cycle
60 cycles per hour
Number of Poles:
3P
Power Loss:
31 W
Rated Current (In):
630 A
Rated Impulse Withstand Voltage (Uimp):
acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui):
AC 1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 42 kA
(230 V AC) 42 kA
(380 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
(220 V AC) 42 kA
(230 V AC) 42 kA
(380 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):
100 %
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 42 kA
for 3 s 24 kA
for 1 s 42 kA
for 3 s 24 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(525 V AC) 42 kA
(690 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(525 V AC) 42 kA
(690 V AC) 42 kA
Rated Uninterrupted Current (Iu):
630 A
Rated Voltage (Ur):
690 V
Recommended Screw Driver:
Main Circuit M10
Release:
Ekip Hi-Touch LSI
Release Type:
EL
Short-Circuit Performance Level:
B
Standards:
IEC
Sub-type:
E1.2
Suitable for IT Networks:
Yes, 690V
Terminal Connection Type:
Front
Terminal Type:
Bolt
Tightening Torque:
45 N·m

Certificates and Declarations

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4926 >> Air circuit breakers
Object Classification Code:
Q
UNSPSC:
39121615
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
