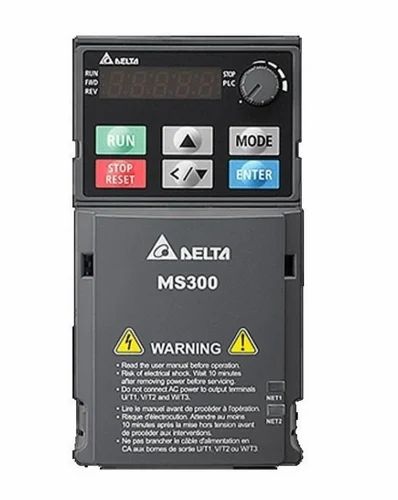

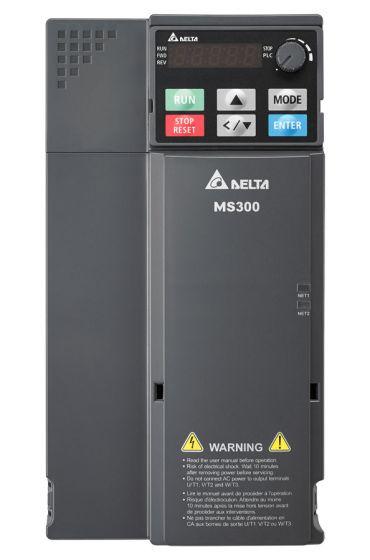

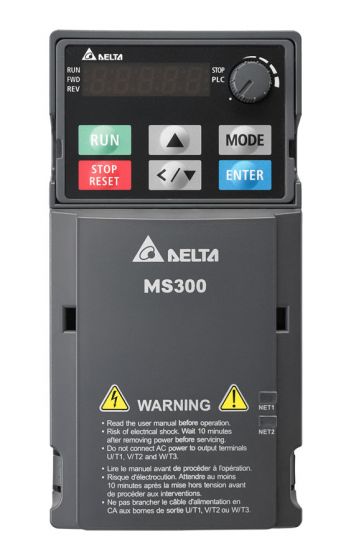

Standard Models (0-599 Hz) Without EMC Filter Part Number: VFD4A2MS43ANSAA Nominal Input VAC: 480 Volts AC Input Range VAC: 460 Volts AC HP: 2 HP Amps (HD): 4.2A Amps (ND): 4.6A Input Phase : 3 PH Operator Controls: Sold Separately, See Accessories Brake Type: DC Injection; Dynamic Braking Motor Control-Max Level: Open Loop Vector-(Sensorless Vector) Closed Loop: NO AC Line Regenerative: NO Dynamic Braking Trans: Included Enclosure Rating: IP20 Frame Size: B1 Height: 5.59 Inches Width: 2.83 Inches Depth: 5.63 Inches Net Weight: 4 Lbs. Delta’s MS300 series is a standard compact vector control drive that inherits Delta’s superior drive technology. It supports both IM and PM motor control for application flexibility and provides STO safety mechanism. Also built-in various essential functions, including PLC capacity for simple programming needs, a communication slot for various communication cards, and a USB port to make data uploads and downloads fast and easy. Saving space, reducing setup and wiring time, while providing high efficiency and stability system, all included in the MS300 series with drive size reduced up to 40%. Delta VFD MS300 Micro Drive Accessories

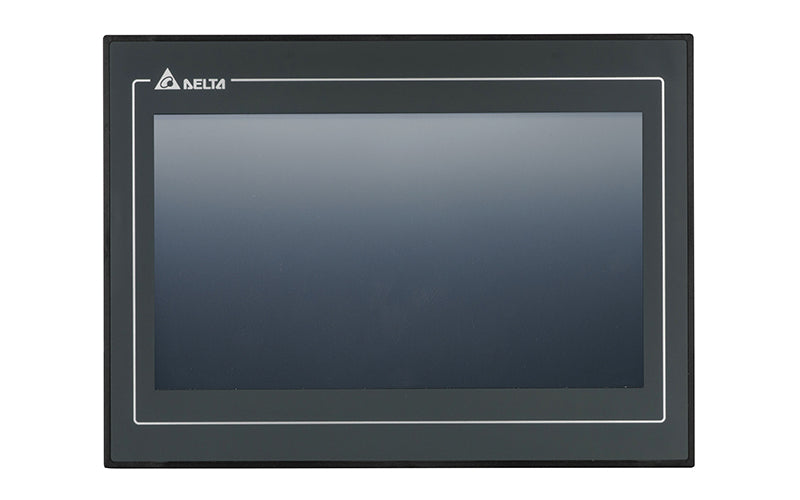

7”(800*600) 65,536 Colors TFT Cortex-A8 800MHz CPU 256 MB RAM 256 MB ROM Built-in Ethernet 2 sets of COM ports / 1 extension COM port USB Host USB Client Supports SD card CE / UL certified Operation Temperature: 0℃ ~ 50℃ Storage Temperature: -20℃ ~ 60℃ Pressing times: >10,000K times
7” (800 * 480) 65536 Colors TFT Cortex-A8 800MHz CPU 256MB RAM 256MB ROM 1 COM port / 1 extension COM port USB Host USB Client CE/UL certified Operating temperature: 0°C – 50°C Storage temperature: -20°C - 60°C Number of keystrokes: > 10,000k times

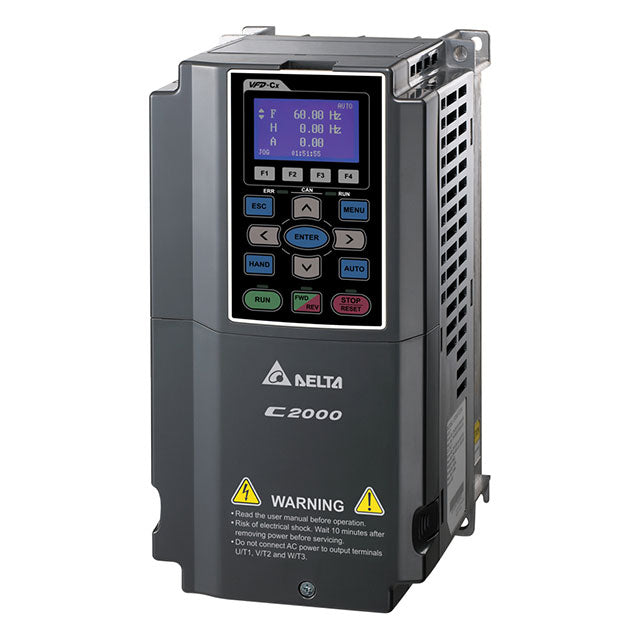

The C2000 Plus Series features precise speed, torque and position control functions that are suitable for both sensor and sensorless synchronous / asynchronous motors. 460 V – 3 Phase 7.5 kW – 10 HP – 18 A
Standard Models (0-599 Hz) Without EMC Filter Part Number: VFD25AMS43ANSAA Nominal Input VAC: 480 Volts AC Input Range VAC: 460 Volts AC HP: 15 HP Amps (HD): 25A Amps (ND): 28A Input Phase : 3PH Operator Controls : Sold Seperately, See Accessories Brake Type : DC Injection; Dynamic Braking Motor Control-Max Level: Open Loop Vector-(Sensorless Vector) Closed Loop: NO AC Line Regenerative: NO Dynamic Braking Trans: Included Enclosure Rating: IP20 Frame Size : E1 Height: 9.84 Inches Width: 5.12 Inches Depth: 7.83 Inches Net Weight: 14 Lbs. Delta’s MS300 series is a standard compact vector control drive that inherits Delta’s superior drive technology. It supports both IM and PM motor control for application flexibility and provides STO safety mechanism. Also built-in various essential functions, including PLC capacity for simple programming needs, a communication slot for various communication cards, and a USB port to make data uploads and downloads fast and easy. Saving space, reducing setup and wiring time, while providing high efficiency and stability system ,all included in the MS300 series with drive size reduced up to 40%. Delta VFD MS300 Micro Drive Accessories

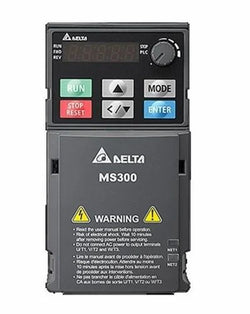

Part Number: Delta VFD5A5MS43ANSAA Nominal Input VAC: 480 Volts AC Input Range VAC: 380 to 480 Volts AC HP: 3 HP Amps (HD): 5.5A Amps (ND): 4.6A Input Phase : 3 PH Operator Controls : Sold Seperately, See Accessories Brake Type : DC Injection; Dynamic Braking Motor Control-Max Level: Open Loop Vector-(Sensorless Vector) Closed Loop: NO AC Line Regenerative: NO Dynamic Braking Trans: Included Enclosure Rating: IP20 Frame Size : C1 Height: 6.18 Inches Width: 3.43 Inches Depth: 5.98 Inches Net Weight: 5 Lbs. Delta’s MS300 series is a standard compact vector control drive that inherits Delta’s superior drive technology. It supports both IM and PM motor control for application flexibility and provides STO safety mechanism. Also built-in various essential functions, including PLC capacity for simple programming needs, a communication slot for various communication cards, and a USB port to make data uploads and downloads fast and easy. Saving space, reducing setup and wiring time, while providing high efficiency and stability system, all included in the MS300 series with drive size reduced up to 40%.
Delta’s VFD-EL-W series is the new generation compact vector control drive. Simple, delicate and durable design inherits Delta’s superior drive technology. Various essential functions are built-in as standard, including: Multi-step Operation; Torque Compensation; PID Control; Multi-Pump Control; Water Supply at Constant Pressure; Leakage Detection function and so on. 460 V – 3 Phase 0.75 KW – 1 HP – 2.5 A
CP2000 Series AC motor drive for energy-saving HVAC systems and for pump and fan applications. The CP2000 Series is equipped with special HVAC parameters and PID control functions for efficient operation, as well as multi-segment V/F control curve and soft start functions to assist frequent torque change and constant output applications with energy-saving performance. 50 HP – 37 kW – 73 Amps 460 V – 3 Phase
10.1” (1024 * 600) 65,536 Colors TFT Cortex-A8 800MHz CPU 512 MB RAM 256 MB ROM Built-in Ethernet interface 2 set of COM ports / 1 extension COM port USB Host USB Client Supports SD card
