Sysmac NX1P CPU with 24 Digital Transistor I/O (PNP) 1.5 MB memory EtherCAT (0 servo axes 4 PTP axes 16 EtherCAT nodes) EtherNet/IP and 1 serial option port
Analog I/O unit, 4 x inputs -10 to 10 V, 0 to 5 V, 0 to 10 V, 1 to 5 V, 4 to 20 mA, 2 x outputs -10 to 10 V, 0 to 5 V, 0 to 10 V, 1 to 5 V, 4 to 20 mA, resolution 1:4000 scalable to ±32000 or 1:8000, screw terminal
EtherNet I/P module, STP (shielded twisted-pair) cable of category 5, 5e, or higher, tag data link message service communications, 1 unit numbers word, 410 mA 5/DC
Touch screen HMI, 8.4 inch, TFT, 256 colors (32,768 colors for .BMP/.JPG), 640x480 pixels, 2 x RS-232C ports, 60MByte memory, 24 VDC, black case

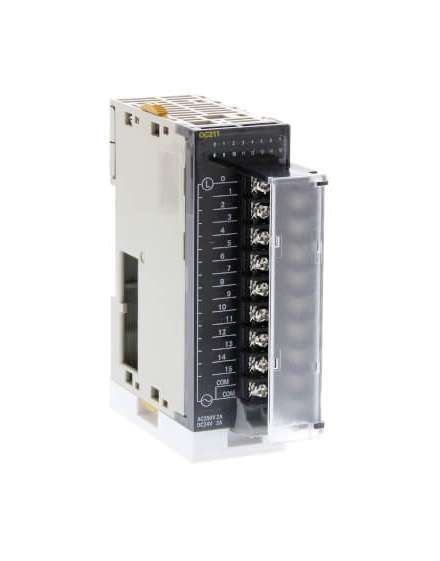

Digital output unit 16 x relay outputs 250 VAC/24 VDC 2 A max screw terminal
CPU with built-in EtherNet/IP port, 10K steps program, 32K words data memory, 32K words x 1 bank EM, 2560 I/O max, option port for RS-232C/485, USB programming port, 3 expansion racks max
Analog input unit, 8 x inputs 1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA, resolution 1:4000 / 8000, screw terminal
CPU with built-in EtherNet/IP port, 60K steps program, 32K words data memory, 32K words x 4 banks EM, 2560 I/O max, option port for RS-232C/485, USB programming port, 3 expansion racks max.
Sysmac NJ3 CPU 5MB memory built-in EtherCAT (4 servo axes in total 192 EtherCAT nodes) and EtherNet/IP
I/O Unit, digital input module, 64-point, Fujitsu connection, 4.1 mA at 24/DC
Expansion I/O interface unit connects to left hand side of expansion I/O rack up to 3 expansion racks
CPU with built-in EtherNet/IP port, 20K steps program, 32K words data memory, 32K words x 1 bank EM, 2560 I/O max, option port for RS-232C/485, USB programming port, 3 expansion racks max.
CPU with built-in EtherNet/IP port, 5K steps program, 32K words data memory, 32K words x 1 bank EM, 2560 I/O max, option port for RS-232C/485, USB programming port, 3 expansion racks max.
Profibus-DP master module, 9.6 to 12Mbit/s, 7k words I/O and 25 words CIO, 9-pin female sub-D connector, rotary switch, 400 mA at 5/DC
Touch screen HMI, 10.4 inch, TFT, 256 colors (32,768 colors for .BMP/.JPG), 640x480 pixels, 2 x RS-232C ports, 60MByte memory, 24 VDC, black case
