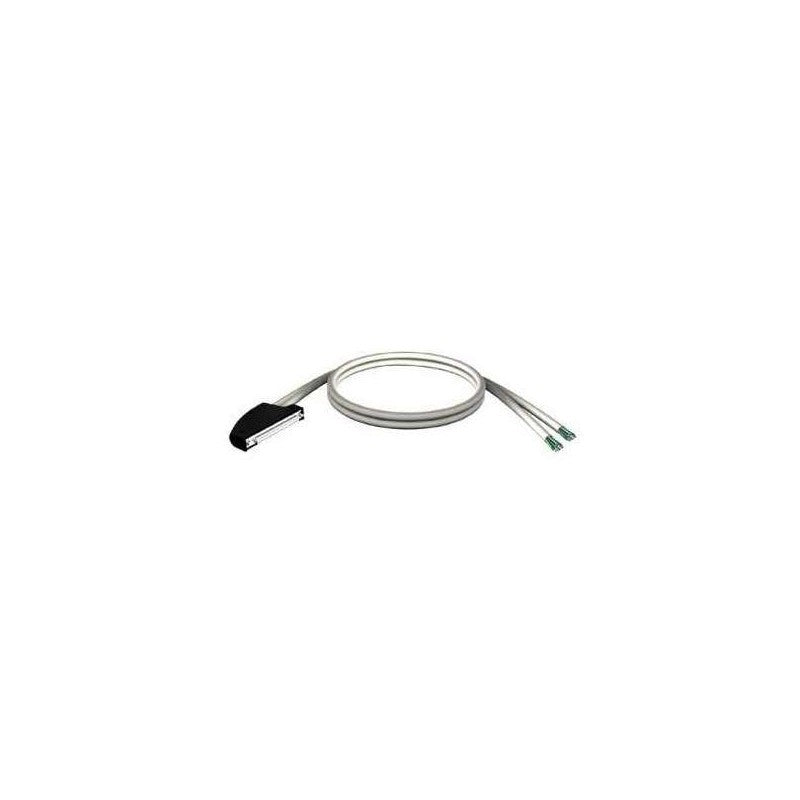

Schneider BMXFCC053 Schneider

$63.45

Only 6 units left

cord set - 40-way terminal - 2 x HE10 connector - for M340 I/O - 0.5 m

Schneider BMXFCC1001 Schneider

$0.00

Sold Out

Main

Characteristic	Value(s)
Range of Product	Modicon X80
Accessory / Separate Part Type	Preformed cordset
Accessory / separate part designation	Preformed cordset for Telefast Advantys ABE7 sub-bases
Accessory / separate part destination	For I/O module with 40-way connectors
Number of cables	1
Electrical connection	1 connector 40 ways 1 connector HE10
Cable length	32.8 ft (10 m)

Complementary

Characteristic	Value(s)
Total number of wires	20
Wire section	0.0005 inÂ² (0.324 mmÂ²)
Product Weight	6.13 lb(US) (2.78 kg)

Schneider BMXFCC101 Schneider

$0.00

Sold Out

Main

Characteristic	Value(s)
Range of Product	Modicon X80
Accessory / Separate Part Type	Preformed cordset
Accessory / separate part designation	Preformed cordset for Telefast Advantys ABE7 sub-bases
Accessory / separate part destination	For I/O module with 40-way connectors
Number of cables	1
Electrical connection	1 connector 40 ways 1 connector HE10
Cable length	3.3 ft (1 m)

Complementary

Characteristic	Value(s)
Total number of wires	20
Wire section	0.0005 inÂ² (0.324 mmÂ²)
Product Weight	0.430 lb(US) (0.195 kg)

Schneider BMXFCC103 Schneider

$113.29

Only 8 units left

cord set - 40-way terminal - 2 x HE10 connector - for M340 I/O - 1 m

Schneider BMXFCC201 Schneider

$0.00

Sold Out

Main

Characteristic	Value(s)
Range of Product	Modicon X80
Accessory / Separate Part Type	Preformed cordset
Accessory / separate part designation	Preformed cordset for Telefast Advantys ABE7 sub-bases
Accessory / separate part destination	For I/O module with 40-way connectors
Number of cables	1
Electrical connection	1 connector 40 ways 1 connector HE10
Cable length	6.6 ft (2 m)

Complementary

Characteristic	Value(s)
Total number of wires	20
Wire section	0.0005 inÂ² (0.324 mmÂ²)
Product Weight	1.23 lb(US) (0.56 kg)

Schneider BMXFCC203 Schneider

$104.99

Only 6 units left

This preassembled cordset is part of the Modicon X80 modules. It is compatible with 32-channels I/O modules. It enables the connection between I/O of modules with 40-way connectors to Modicon Telefast ABE7 rapid wiring connection. It is equipped with one 40-way connector at one end and two HE 10 connectors at the other end, and is 2 meters long.

Main

Characteristic	Value(s)
Range of Product	Modicon X80
Accessory / Separate Part Type	Preformed cordset
Accessory / separate part designation	Preformed cordset for Telefast Advantys ABE7 sub-bases
Accessory / separate part destination	For I/O module with 40-way connectors
Number of cables	2
Electrical connection	1 connector 40 ways 2 connectors HE10
Cable length	6.6 ft (2 m)

Complementary

Characteristic	Value(s)
Total number of wires	40
Wire section	0.0005 inÂ² (0.324 mmÂ²)
Product Weight	1.39 lb(US) (0.63 kg)

Schneider BMXFCC301 Schneider

$99.18

Only 7 units left

Main

Characteristic	Value(s)
Range of Product	Modicon X80
Accessory / Separate Part Type	Preformed cordset
Accessory / separate part designation	Preformed cordset for Telefast Advantys ABE7 sub-bases
Accessory / separate part destination	For I/O module with 40-way connectors
Number of cables	1
Electrical connection	1 connector 40 ways 1 connector HE10
Cable length	9.8 ft (3 m)

Complementary

Characteristic	Value(s)
Total number of wires	20
Wire section	0.0005 inÂ² (0.324 mmÂ²)
Product Weight	1.85 lb(US) (0.84 kg)

Schneider BMXFCC303 Schneider

$121.61

Only 5 units left

cord set - 40-way terminal - 2 x HE10 connector - for M340 I/O - 3 m

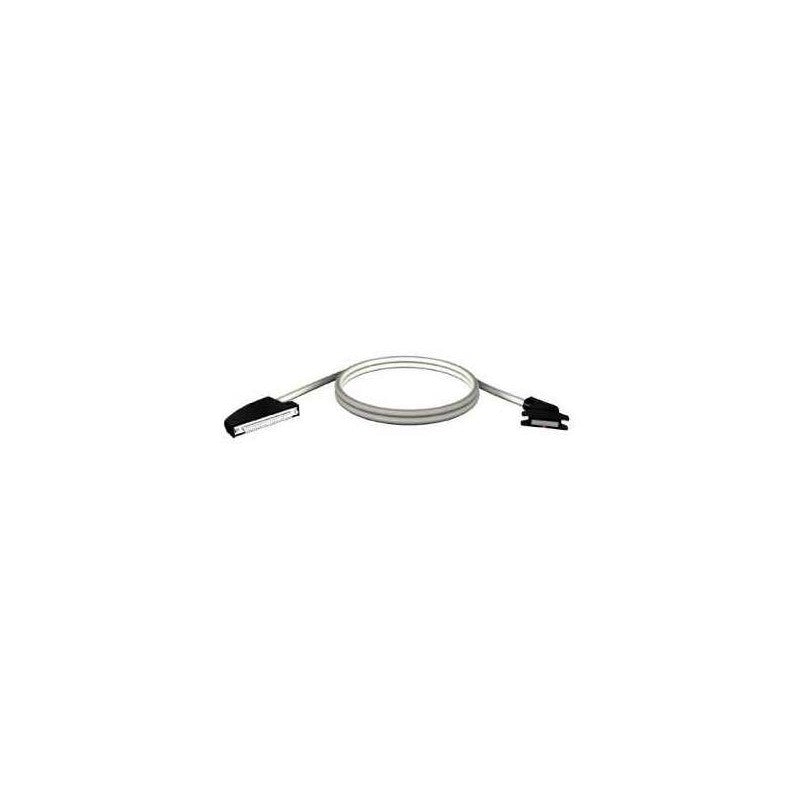

Schneider BMXFCC501 Schneider

$0.00

Sold Out

Main

Characteristic	Value(s)
Range of Product	Modicon X80
Accessory / Separate Part Type	Preformed cordset
Accessory / separate part designation	Preformed cordset for Telefast Advantys ABE7 sub-bases
Accessory / separate part destination	For I/O module with 40-way connectors
Number of cables	1
Electrical connection	1 connector 40 ways 1 connector HE10
Cable length	16.4 ft (5 m)

Complementary

Characteristic	Value(s)
Total number of wires	20
Wire section	0.0005 inÂ² (0.324 mmÂ²)
Product Weight	3.06 lb(US) (1.39 kg)

Schneider BMXFCC503 Schneider

$167.04

Only 7 units left

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This cordset is an accessory of I/O module. The length of this cable is 5m. This product is robust, high quality and based on the latest innovative technology. It is furnished with 40-way connector and two HE10 connectors for electrical connection. It weighs 1.53kg. It is suitable for medium to large process applications. This cordset is compatible with Telefast Advantys ABE7 sub-bases and I/O module with 40-way connectors. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Main

Characteristic	Value(s)
Range of Product	Modicon X80
Accessory / Separate Part Type	Preformed cordset
Accessory / separate part designation	Preformed cordset for Telefast Advantys ABE7 sub-bases
Accessory / separate part destination	For I/O module with 40-way connectors
Number of cables	2
Electrical connection	1 connector 40 ways 2 connectors HE10
Cable length	16.4 ft (5 m)

Complementary

Characteristic	Value(s)
Total number of wires	40
Wire section	0.0005 inÂ² (0.324 mmÂ²)
Product Weight	3.37 lb(US) (1.53 kg)

Schneider BMXFCW1001 Schneider

$0.00

Sold Out

Main

Characteristic	Value(s)
Range of Product	Modicon X80
Accessory / Separate Part Type	Preformed cordset
Accessory / separate part designation	Preformed cordset with one end with flying leads
Accessory / separate part destination	For I/O module with 40-way connectors
Number of cables	1
Electrical connection	1 connector 40 ways 1 end with color-coded flying leads DIN 47100
Cable length	32.8 ft (10 m)

Complementary

Characteristic	Value(s)
Total number of wires	20
Wire section	0.0005 inÂ² (0.324 mmÂ²)
AWG Gauge	AWG 22
Product Weight	6.11 lb(US) (2.77 kg)

Schneider BMXFCW301 Schneider

$98.75

Only 7 units left

Main

Characteristic	Value(s)
Range of Product	Modicon X80
Accessory / Separate Part Type	Preformed cordset
Accessory / separate part designation	Preformed cordset with one end with flying leads
Accessory / separate part destination	For I/O module with 40-way connectors
Number of cables	1
Electrical connection	1 connector 40 ways 1 end with color-coded flying leads DIN 47100
Cable length	9.8 ft (3 m)

Complementary

Characteristic	Value(s)
Total number of wires	20
Wire section	0.0005 inÂ² (0.324 mmÂ²)
AWG Gauge	AWG 22
Product Weight	1.81 lb(US) (0.82 kg)

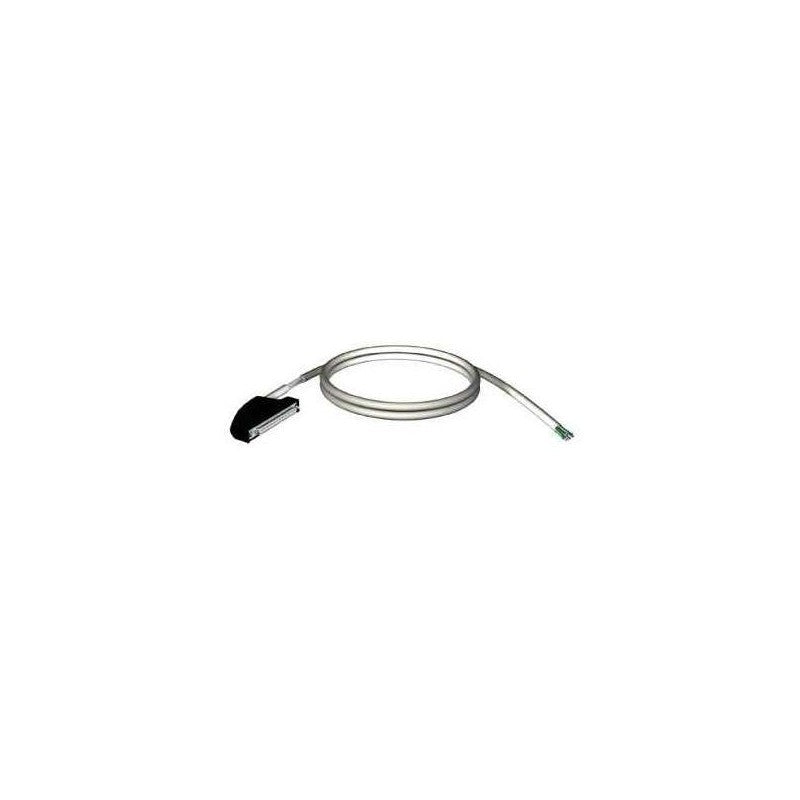

Schneider BMXFCW301S Schneider

$113.29

Only 6 units left

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This cordset is an accessory of I/O module. The length of this cable is 3m. This product is robust, high quality and based on the latest innovative technology. It is furnished with 40-way connector for module side and free-end color-coded flying leads (conforming to DIN 47100) for electrical connection. It weighs 0.48kg. It is suitable for medium to large process applications. This cordset is compatible with Modicon X80 BMXART0414 and BMXART0814 analogue input module. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Main

Characteristic	Value(s)
Range of Product	Modicon X80
Accessory / Separate Part Type	Preformed cordset
Product Compatibility	BMXART0414 BMXART0814
Electrical connection	1 connector 40 ways module side 1 free end with color-coded flying leads terminal block analogue sensor
Cable length	9.8 ft (3 m)

Complementary

Characteristic	Value(s)
Product Weight	1.06 lb(US) (0.48 kg)

Schneider BMXFCW303 Schneider

$104.42

In stock, 11 units

cord set - 40-way terminal - two ends flying leads - for M340 I/O - 3 m

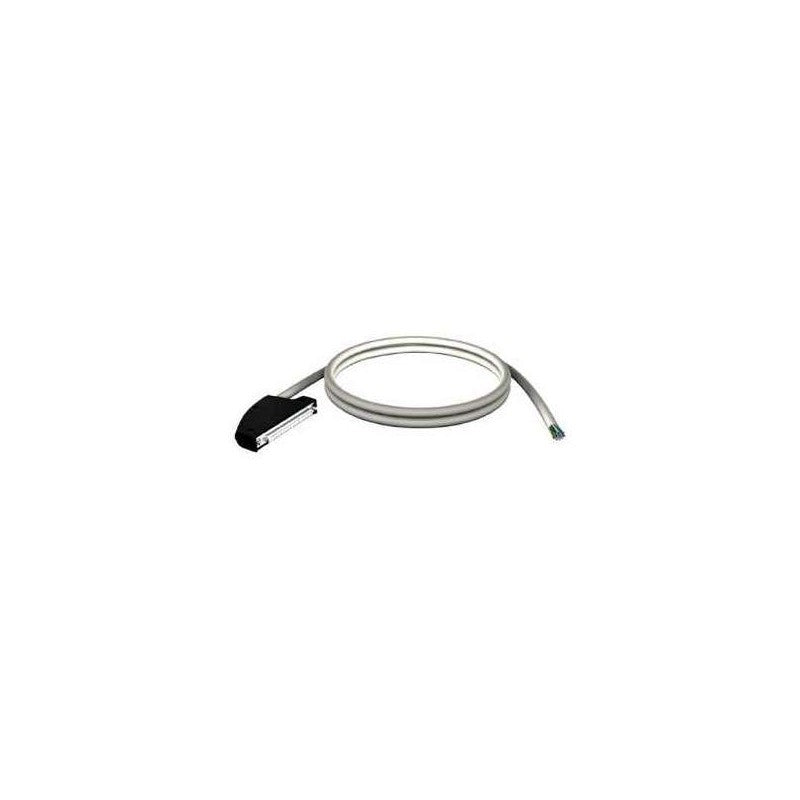

Schneider BMXFCW501 Schneider

$113.29

Only 8 units left

Main

Characteristic	Value(s)
Range of Product	Modicon X80
Accessory / Separate Part Type	Preformed cordset
Accessory / separate part designation	Preformed cordset with one end with flying leads
Accessory / separate part destination	For I/O module with 40-way connectors
Number of cables	1
Electrical connection	1 connector 40 ways 1 end with color-coded flying leads DIN 47100
Cable length	16.4 ft (5 m)

Complementary

Characteristic	Value(s)
Total number of wires	20
Wire section	0.0005 inÂ² (0.324 mmÂ²)
AWG Gauge	AWG 22
Product Weight	3.02 lb(US) (1.37 kg)

Schneider BMXFCW501S Schneider

$175.61

Only 7 units left

shielded cord set - 40-way terminal - one end flying leads - for M340 I/O - 5 m

Schneider BMXFCW503 Schneider

$129.91

Only 8 units left

cord set - 40-way terminal - two ends flying leads - for M340 I/O - 5 m

Schneider BMXFTA150 Schneider

$0.00

Sold Out

cord set - 28 ways terminal - SUB-D 25 for M340 I/O - 1.5 m

Schneider BMXFTA152 Schneider

$136.15

Only 8 units left

Main

Characteristic	Value(s)
Range of Product	Modicon X80
Accessory / Separate Part Type	Preformed cordset
Product Compatibility	BMXAMO0802 ABE7CPA02
Electrical connection	1 connector SUB-D 25 sub-base side 1 removable terminal block, 20 ways module side
Cable length	4.9 ft (1.5 m)

Complementary

Characteristic	Value(s)
Product Weight	0.71 lb(US) (0.32 kg)

Schneider BMXFTA1522 Schneider

$0.00

Sold Out

Main

Characteristic	Value(s)
Range of Product	Modicon X80
Accessory / Separate Part Type	Preformed cordset
Product Compatibility	ABE7CPA31 ABE7CPA03 BMXAHI0812 ABE7CPA02
Electrical connection	1 connector SUB-D 25 sub-base side 1 removable terminal block, 20 ways module side
Cable length	4.9 ft (1.5 m)

Complementary

Characteristic	Value(s)
Product Weight	0.71 lb(US) (0.32 kg)

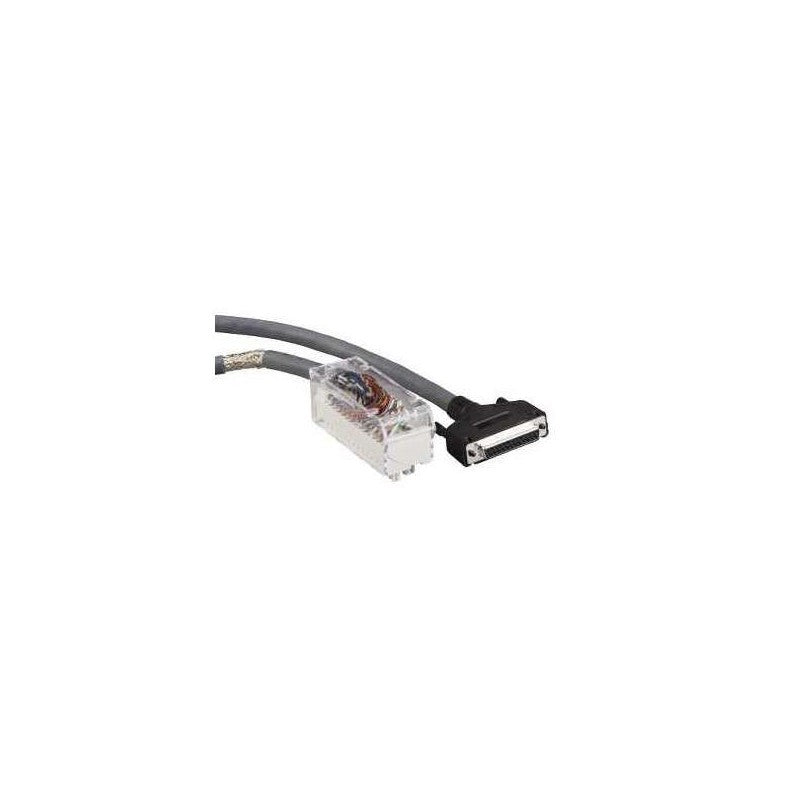

Schneider BMXFTA300 Schneider

$136.15

Only 8 units left

cord set - 28 ways terminal - SUB-D 25 for M340 I/O - 3 m

Schneider BMXFTA302 Schneider

$144.45

Only 9 units left

cord set - 20 ways terminal - SUB-D 25 for M340 I/O - 3 m

Schneider BMXFTA3022 Schneider

$0.00

Sold Out

Main

Characteristic	Value(s)
Range of Product	Modicon X80
Accessory / Separate Part Type	Preformed cordset
Product Compatibility	BMXAHI0812 ABE7CPA02 ABE7CPA03 ABE7CPA31
Electrical connection	1 connector SUB-D 25 sub-base side 1 removable terminal block, 20 ways module side
Cable length	9.8 ft (3 m)

Complementary

Characteristic	Value(s)
Product Weight	1.1 lb(US) (0.5 kg)

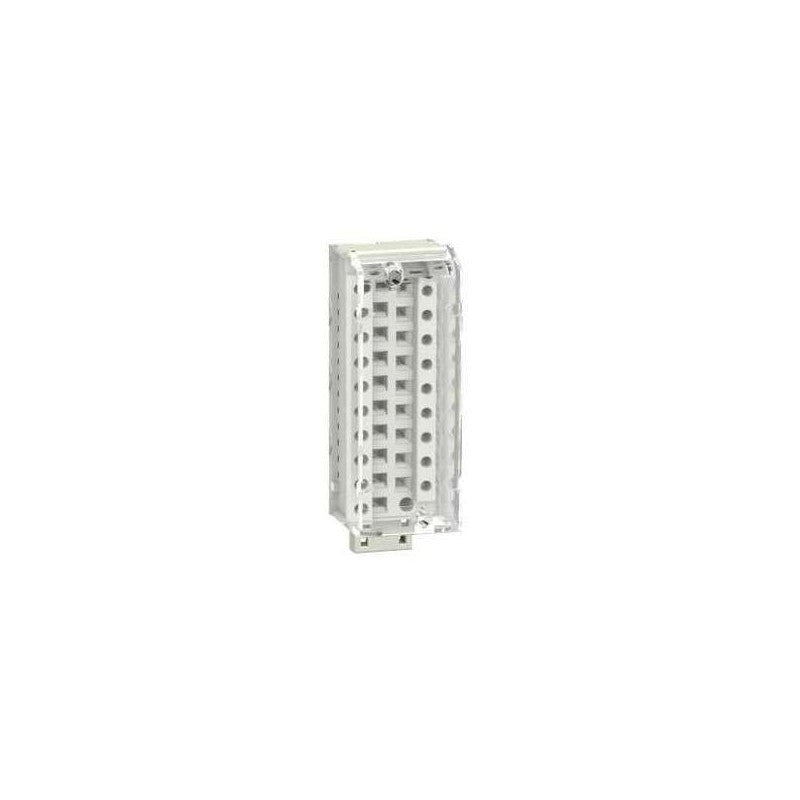

Schneider BMXFTB2000 Schneider

$74.25

Only 5 units left

20-way removable cage clamp terminal block -1 x 0.34..1 mm2
