Modules

822 products

Showing 1 - 24 of 822 products

Showing 1 - 24 of 822 products
View
140-ACI-040-00 Schneider
Schneider 140-ACI-040-00 Schneider
$813.71
Only 10 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Analogue input module
Type of filter Single pole low pass - 3 dB at 34 Hz +/- 25 %

Complementary

Characteristic Value(s)
Analogue input number 16
Input type Differential
Addressing requirement 17 input words
Analogue input resolution 0...16000 counts 4...20 mA
0...20000 counts 0...20 mA
0...25000 counts 0...25 mA
0...4095 counts 4...20 mA
Absolute maximum input 30 mA
Input impedance 250 Ohm
Absolute accuracy error +/- 0.125 % of full scale
Linearity error +/- 12 µA max 4...20 mA
+/- 6 µA max 0...20 mA
+/- 6 µA max 0...25 mA
+/- 6 µA max 4...20 mA
Accuracy drift according to temperature +/- 0.0025 % of full scale/°C
<= 0.0050 % of full scale /°C
Common mode rejection > - 90 dB 60 Hz
Isolation between channels and bus 1780 V AC 60 s
Update time 15 ms 2 wires/4 wires
Fault type Broken wire 4...20 mA
Marking CE
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault
16 LEDs (green) for channel is turned on
16 LEDs (red) for channel fault
Bus current requirement 360 mA
Power dissipation in W 5 W
Module format Standard
Product Weight 0.7 lb(US) (0.3 kg)
140ACI03000 Schneider
Schneider 140ACI03000 Schneider
$499.97
In stock, 14 units

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Analogue input module
Type of filter Single pole low pass - 3 dB at 15 Hz +/- 20 %

Complementary

Characteristic Value(s)
Analogue input number 8
Input type Differential
Addressing requirement 9 input words
Analogue input resolution 12 bits
Linear measuring range 1...5 V
4...20 mA
Absolute maximum input 50 V DC
25 mA
Input impedance 250 Ohm current +/- 0.01 %
> 20 MOhm voltage
Absolute accuracy error +/- 0.05 % of full scale
+/- 0.1 % of full scale maximum
Linearity error +/- 0.04 %
Accuracy drift according to temperature +/- 0.0025 % of full scale/°C
<= 0.005 % of full scale/°C
Common mode rejection > - 72 dB 60 Hz
Isolation between channels and bus 1000 V DC
3000 V DC 60 s
Isolation between channels 30 V DC
Update time 5 ms
Fault type Broken wire 4...20 mA
Undervoltage range 1...5 V
Marking CE
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault
8 LEDs (green) for channel is turned on
8 LEDs (red) for channel fault
Bus current requirement 240 mA
Power dissipation in W 2 W
Module format Standard
Product Weight 0.7 lb(US) (0.3 kg)
140ACI04000 Schneider
Schneider 140ACI04000 Schneider
$813.71
Only 10 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Analogue input module
Type of filter Single pole low pass - 3 dB at 34 Hz +/- 25 %

Complementary

Characteristic Value(s)
Analogue input number 16
Input type Differential
Addressing requirement 17 input words
Analogue input resolution 0...16000 counts 4...20 mA
0...20000 counts 0...20 mA
0...25000 counts 0...25 mA
0...4095 counts 4...20 mA
Absolute maximum input 30 mA
Input impedance 250 Ohm
Absolute accuracy error +/- 0.125 % of full scale
Linearity error +/- 12 µA max 4...20 mA
+/- 6 µA max 0...20 mA
+/- 6 µA max 0...25 mA
+/- 6 µA max 4...20 mA
Accuracy drift according to temperature +/- 0.0025 % of full scale/°C
<= 0.0050 % of full scale /°C
Common mode rejection > - 90 dB 60 Hz
Isolation between channels and bus 1780 V AC 60 s
Update time 15 ms 2 wires/4 wires
Fault type Broken wire 4...20 mA
Marking CE
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault
16 LEDs (green) for channel is turned on
16 LEDs (red) for channel fault
Bus current requirement 360 mA
Power dissipation in W 5 W
Module format Standard
Product Weight 0.7 lb(US) (0.3 kg)
140ACO02000 Schneider
Schneider 140ACO02000 Schneider
$499.97
In stock, 11 units

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Analogue output module

Complementary

Characteristic Value(s)
Analogue output number 4
Addressing requirement 4 output words
Loop voltage 12…30 V DC
Maximum voltage drop <30 V 20 mA
Analogue output range 4...20 mA 0...4096 counts, 12 bits bipolar current
Absolute accuracy error +/- 0.20 % of full scale 77 °F (25 °C)
Linearity +/- 1 LSB
Accuracy drift according to temperature +/- 0.004 % of full scale/°C
+/- 0.007 % of full scale/°C maximum
Isolation between channels 500 V 47...63 Hz AC
750 V for 1 minute DC
Update time 3 ms
Setting time 900 µs to +/- 0.1 % of the final value
Fault type Open circuit 4...20 mA
Bus current requirement 480 mA
Maximum power dissipation in W 5.3 W
External power requirement 12...30 V
Marking CE
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault
for channel is turned on 4 LEDs (green)
for channel fault 4 LEDs (red)
Module format Standard
Product Weight 0.7 lb(US) (0.3 kg)
140ACO13000 Schneider
Schneider 140ACO13000 Schneider
$744.69
In stock, 14 units

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Analogue output module

Complementary

Characteristic Value(s)
Analogue output number 8
Addressing requirement 8 output words
Loop voltage 6…30 V DC
Maximum voltage drop <30 V 25 mA
Analogue output range 0...20 mA 0...20000 counts
0...25 mA 0...25000 counts
4...20 mA 0...16000 counts
4...20 mA 0...4095 counts
Absolute accuracy error +/- 0.2 % of full scale 77 °F (25 °C)
Linearity +/- 12 µA 4...20 mA 0...4095 counts
+/- 4 µA 0...20 mA 0...20000 counts
+/- 4 µA 0...25 mA 0...25000 counts
+/- 4 µA 4...20 mA 0...16000 counts
Accuracy drift according to temperature 0.004 % of full scale/°C typical
0.007 % of full scale/°C maximum
Isolation between channels and bus 1780 V for 1 minute AC
Update time 5 ms
Setting time 3.2 ms to +/-0.1% of the final value
1.6 ms to 5% of the final value
Fault type Open circuit 4...20 mA
Bus current requirement 550 mA
Maximum power dissipation in W 5 W
External power requirement 6...30 V
Marking CE
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault
8 LEDs (green) for channel is turned on
8 LEDs (red) for channel fault
Module format Standard
Product Weight 0.7 lb(US) (0.3 kg)
140AII33010C Schneider
Schneider 140AII33010C Schneider
$0.00
Sold Out

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Intrinsically safe current input module
Software designation Concept V2.2 and above
ProWORX
Unity Pro
Type of filter Single low pass input filter -3 dB 15 Hz +/- 20 %

Complementary

Characteristic Value(s)
Product destination In conjunction with products for zone 20, 21 or 22
Analogue input number 8
Analogue input range 0...25 mA
0...20 mA
4...20 mA
Analogue input resolution 0...16000 counts 4...20 mA
0...20000 counts 0...20 mA
0...25000 counts 0...25 mA
0...4095 counts 4...20 mA
Absolute maximum input 25 mA internally limited
Input impedance 100 Ohm +/- 0.1 %
Absolute accuracy error +/- 0.05 % typical of full scale 77 °F (25 °C)
+/- 0.1 % of full scale maximum 77 °F (25 °C)
Accuracy drift according to temperature 0.005 % maximum of full scale/°C
+/- 0.0025 % typical of full scale/°C
Linearity error 0.003 % of full scale
Common mode rejection > 100 dB 50/60 Hz
Update time 750 ms
Isolation between channels and bus 2500 V for 1 minute DC
1780 V 47...63 Hz AC
Fault type Broken wire 4...20 mA
Power dissipation in W 7.5 W
Hot swapping fallback Not allowed per intrinsic safety standards
Protection Type Internal fuse
Marking CE
II1 G/D-EEx ia IIC
Bus current requirement 1500 mA
Module format Standard
Product Weight 0.7 lb(US) (0.3 kg)

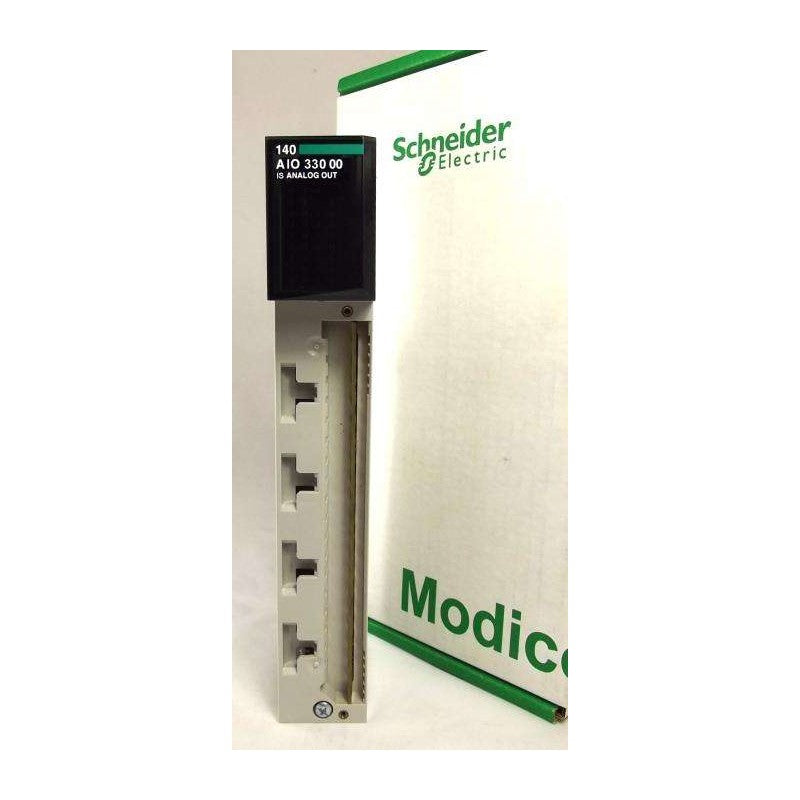

140AIO33000 Schneider
Schneider 140AIO33000 Schneider
$799.82
Only 4 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Intrinsically safe analog output module
Software Designation Concept V2.2 and above
ProWORX
Unity Pro

Complementary

Characteristic Value(s)
Product destination In conjunction with products for zone 20, 21 or 22
Analogue output number 8
Analogue output range 0...20 mA 0 to 20000 points
0...25 mA 0 to 25000 points
4...20 mA 15 bits, 0 to 16000 points
4...20 mA 15 bits, 0 to 4095 points
Maximum loop resistance 500 Ohm
Absolute accuracy error +/- 0.2 % of full scale 77 °F (25 °C)
Accuracy drift according to temperature 40 ppm/°C
<= 70 ppm/°C
Linearity +/- 1 LSB
Update time 4 ms
Setting time 1 ms to +/- 0.1 % of the final value
Isolation between channels and bus 1780 Vrms 60 s AC
Fault type Open circuit 4...20 mA
Power dissipation in W 12.5 W
Hot swapping fallback Not allowed per intrinsic safety standards
Protection Type Internal fuse
Marking CE
II1 G/D-EEx ia IIC
Bus current requirement 2.5 A
Module format Standard
Product Weight 0.7 lb(US) (0.3 kg)

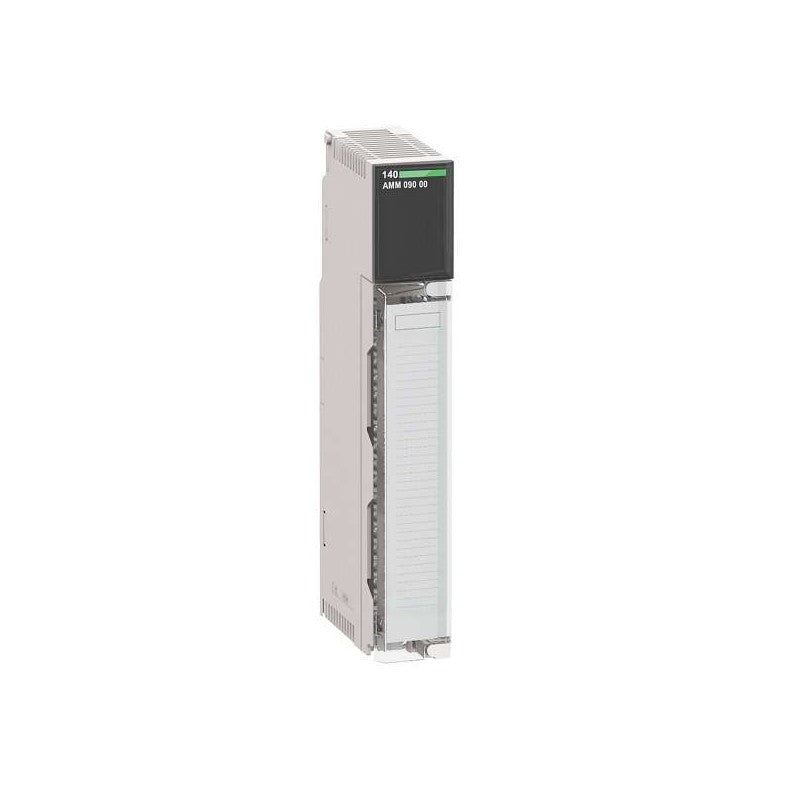

140AMM09000 Schneider
Schneider 140AMM09000 Schneider
$804.47
Only 5 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Input/output analog module
Type of filter Single pole low pass - 3 dB at 21 Hz +/- 20 % input circuit

Complementary

Characteristic Value(s)
I/O modularity 6 channels
Addressing requirement 2 output words
5 input words
Analogue input number 4
Analogue input type Bipolar current +/- 20 mA 15 bits DC
Bipolar voltage +/- 10 V 16 bits DC
Bipolar voltage +/- 5 V 15 bits DC
Unipolar current 0...20 mA 15 bits DC
Unipolar offset current 4...20 mA 14 bits DC
Unipolar offset voltage 1...5 V 14 bits DC
Unipolar voltage 0...10 V 16 bits DC
Unipolar voltage 0...5 V 15 bits DC
Absolute maximum input +/- 25 mA current
+/- 50 V voltage
Input impedance > 10 MOhm voltage
> 250 Ohm current
Offset +/- 0.0014 % of full scale maximum/°C 0...60 °C input circuit
Gain shift +/- 0.002 of full scale maximum 0...60 °C input circuit
Common mode rejection > 80 dB 50/60 Hz input circuit
Analogue output number 2
Analogue output range 4...20 mA
Analogue output resolution 12 bits
Loop voltage 0…60 V DC with external resistance output circuit
7…30 V DC output circuit
Maximum voltage drop <30 V DC 20 mA
Setting time 900 µs to +/- 0.1 % of the final value output circuit
External power requirement 7...30 V output circuit
Absolute accuracy error +/- 0.004 % of full scale 32…140 °F (0…60 °C) output circuit
+/- 0.007 %/°C of full scale maximum 32…140 °F (0…60 °C) output circuit
+/- 0.03 % 77 °F (25 °C) input circuit
+/- 0.05 % of full scale maximum 77 °F (25 °C) input circuit
+/- 0.20 % of full scale 77 °F (25 °C) output circuit
Linearity 2.4 % over and under range voltage
2.4 % over range, and - 9.6 % under range current
Monotonic +/- 1 LSB input
Monotonic +/- 1 LSB output
Update time 15 ms output circuit
320 ms input circuit
Fault type Open circuit input/output circuit
Overtacking scale (unipolar) input circuit
Status byte output circuit
Isolation between channels 500 V AC for 1 minute
750 V DC for 1 minute
Isolation between channels and bus 500 V AC for 1 minute
750 V DC for 1 minute
Isolation between input channel and output channel 500 V for 1 minute
750 V for 1 minute
Marking CE
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault
for channel is turned on 6 LEDs (green)
for channel fault 6 LEDs (red)
Bus current requirement 350 mA
Module format Standard
Product Weight 0.7 lb(US) (0.3 kg)
140ARI03010 Schneider
Schneider 140ARI03010 Schneider
$506.74
Only 4 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Analogue input module

Complementary

Characteristic Value(s)
Analogue input number 8
Input type Differential
Addressing requirement 9 input words
Analogue input type Temperature probe - 100...450 °C Pt 100, Pt 200, Pt 500, Pt 1000
Temperature probe - 200...850 °C Pt 100, Pt 200, Pt 500, Pt 1000
Temperature probe - 60...180 °C Ni 100, Ni 200, Ni 500, Ni 1000
Temperature probe 0.5 mA Ni 100, Ni 200, Ni 500, Ni 1000
Temperature probe 2.5 mA Pt 100, Pt 200, Ni 100, Ni 200
Analogue input resolution 13 bits
Input impedance >= 10 MOhm
Absolute accuracy error 0.1 °C
Linearity error +/- 0.01 % full scale
+/- 0.5 °C
Accuracy drift according to temperature +/- 0.5 °C 77 °F (25 °C)
+/- 0.9 °C 32…140 °F (0…60 °C)
Isolation between channels and bus 1780 V AC 47...63 Hz 60 s
2500 V DC 60 s
Isolation between channels 300 Vrms AC
Update time 1200 ms 3 wires
640 ms 2 wires/4 wires
Fault type Broken wire
Overtacking scale
Marking CE
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault
for channel is turned on 8 LEDs (green)
for channel fault 8 LEDs (red)
Bus current requirement 200 mA
Power dissipation in W 1 W
Module format Standard
Product Weight 0.7 lb(US) (0.3 kg)
140ATI03000 Schneider
Schneider 140ATI03000 Schneider
$562.72
In stock, 12 units

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Analogue input module
Type of filter Notch filter - 3 dB at 50/60 Hz
Single pole low pass - 3 dB at 20 Hz

Complementary

Characteristic Value(s)
Analogue input number 8
Addressing requirement 10 input words
Analogue input type Thermocouple - 210...760 °C thermocouple J
Thermocouple - 270...1000 °C thermocouple E
Thermocouple - 270...1370 °C thermocouple K
Thermocouple - 270...400 °C thermocouple T
Thermocouple - 50...1665 °C thermocouple R
Thermocouple - 50...1665 °C thermocouple S
Analogue input resolution 16 bits
Absolute accuracy error +/- 2 °C plus + 0.1 % of reading thermocouple E
+/- 2 °C plus + 0.1 % of reading thermocouple J
+/- 2 °C plus + 0.1 % of reading thermocouple K
+/- 2 °C plus + 0.1 % of reading thermocouple T
+/- 4 °C plus + 0.1 % of reading thermocouple R
+/- 4 °C plus + 0.1 % of reading thermocouple S
Linearity error 1 °C, 0.1 °C, 1 F, 0.1 F - 210...760 °C
1 °C, 0.1 °C, 1 F, 0.1 F - 270...1000 °C
1 °C, 0.1 °C, 1 F, 0.1 F - 270...1370 °C
1 °C, 0.1 °C, 1 F, 0.1 F - 270...400 °C
1 °C, 0.1 °C, 1 F, 0.1 F - 50...1665 °C
Accuracy drift according to temperature 0.15 µV/°C + 0.0015 % of reading/°C max low level voltage
Common mode rejection > - 120 dB 50/60 Hz
Isolation between channels and bus 1780 V AC 60 s
2500 V DC 60 s
Isolation between channels 300 V DC
220 V AC
Update time 1000 ms
Fault type Broken wire
Overtacking scale
Marking CE
Cold junction compensation Internal 32…140 °F (0…60 °C)
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault
for channel is turned on 8 LEDs (green)
for channel fault 8 LEDs (red)
Bus current requirement 280 mA
Power dissipation in W 1.5 W
Module format Standard
Product Weight 0.7 lb(US) (0.3 kg)
140AVI03000 Schneider
Schneider 140AVI03000 Schneider
$725.87
In stock, 17 units

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Analogue input module
Type of filter Single pole low pass - 3 dB at 847 Hz +/- 20 %

Complementary

Characteristic Value(s)
Analogue input number 8
Input type Differential
Addressing requirement 9 input words
Analogue input type Bipolar current 20 mA
Bipolar voltage +/- 10 V
Bipolar voltage +/- 5 V
Unipolar current 0...20 mA
Unipolar voltage 0...10 V
Unipolar voltage 0...5 V
Analogue input resolution 16 bits +/- 10 V
16 bits +/- 5 V
16 bits 0...10 V
16 bits 0...20 mA
16 bits 0...5 V
16 bits 20 mA
Linear measuring range (input range) x 1.024 mA
(input range) x 1.024 V
Absolute maximum input 50 V DC
25 mA
Input impedance > 20 Ohm voltage
250 MOhm +/- 0.03 %
Absolute accuracy error +/- 0.03 %
+/- 0.05 % of full scale maximum
Linearity error +/- 0.008 %
Accuracy drift according to temperature +/- 0.0015 % of full scale/°C
<= 0.004 % of full scale /°C
Common mode rejection > - 80 dB 60 Hz
Isolation between channels and bus 500 Vrms AC 60 s
750 V DC
Isolation between channels 135 Vrms AC
200 V DC
Update time 10 ms
Fault type Broken wire 4...20 mA
Overtacking scale 1...5 V
Marking CE
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault
8 LEDs (green) for channel is turned on
8 LEDs (red) for channel fault
Bus current requirement 280 mA
Power dissipation in W 2.2 W
Module format Standard
Product Weight 0.7 lb(US) (0.3 kg)

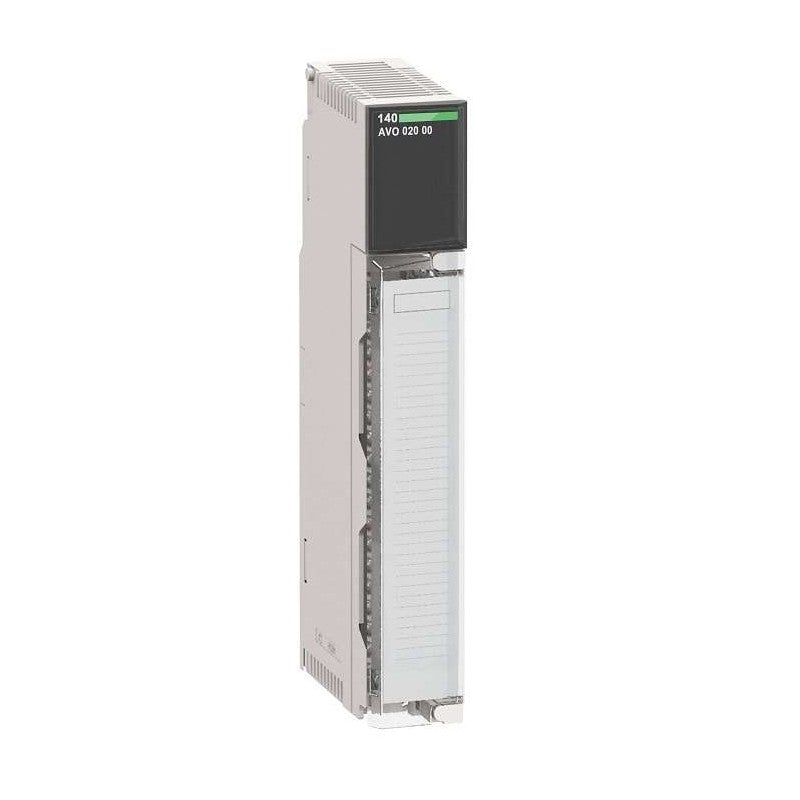

140AVO02000 Schneider
Schneider 140AVO02000 Schneider
$615.01
In stock, 11 units

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Analogue output module

Complementary

Characteristic Value(s)
Analogue output number 4
Addressing requirement 4 output words
Analogue output range +/- 10 V >= 1000 Ohm bipolar voltage
+/- 5 V >= 500 Ohm bipolar voltage
0...10 V >= 1000 Ohm unipolar voltage
0...5 V >= 500 Ohm unipolar voltage
Analogue output resolution 12 bits
Analogue output current -10…10 mA
Source resistance 0.1 Ohm
Maximum cable distance between devices 1312.3 ft (400 m)
Absolute accuracy error +/- 0.15 % of full scale 77 °F (25 °C)
Linearity +/- 1 LSB
Accuracy drift according to temperature 0.003 % of full scale/°C unipolar
0.004 % of full scale/°C bipolar
0.005 % of full scale/°C maximum unipolar
0.007 % of full scale/°C maximum bipolar
Isolation between channels 500 V for 1 minute 47...63 Hz AC
Isolation between channels and bus 780 V for 1 minute AC
Update time 3 ms
Setting time 700 µs to +/- 0.1 % of the final value maximum
Bus current requirement 700 mA
Maximum power dissipation in W 4.5 W
Associated fuse rating 0.063 mA 3 AG fast blow 250 V
Marking CE
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault
4 LEDs (green) for channel is turned on
4 LEDs (red) for channel fault
Module format Standard
Product Weight 0.7 lb(US) (0.3 kg)

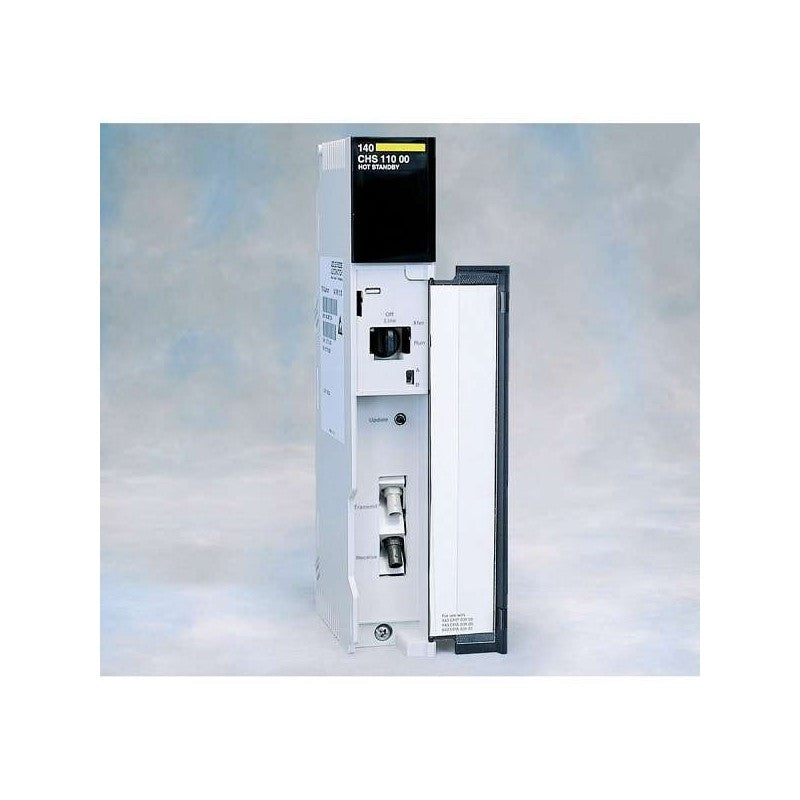

140CHS11000 Schneider
Schneider 140CHS11000 Schneider
$813.71
In stock, 15 units

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Hot standby module
Software designation Concept >= V2.0
ProWORX 32 NxT V2.0

Complementary

Characteristic Value(s)
Product Compatibility All legacy 140CPU with LL984 language
All 140CPU43412A/534 with IEC language
Input/output type 800 Series
Sy/Max (remote I/O only)
Quantum
Transmission Rate 10 Mbit/s
Transmission support medium Fiber optic 9.8 ft (3 m)
Switching time 13...48 ms
Electrical connection 1 connector RJ45 for fiber optic receiver
1 connector RJ45 for fiber optic transmitter
Local signalling 1 LED (amber) for module in standby
1 LED (green) for communication with I/O module
1 LED (green) for control process
1 LED (green) for ready module
1 LED (red) for communication error
Bus current requirement 700 mA
Module format Standard
Product Weight 2.34 lb(US) (1.06 kg)
140CHS21000 Schneider
Schneider 140CHS21000 Schneider
$0.00
Sold Out

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform

Complementary

Characteristic Value(s)
Kit type Hot Standby kit
Kit composition 1 installation manual
1 fiber optic (3m) hot standby cable
1 loadable software package
1 S908 terminator kit
2 hot standby modules

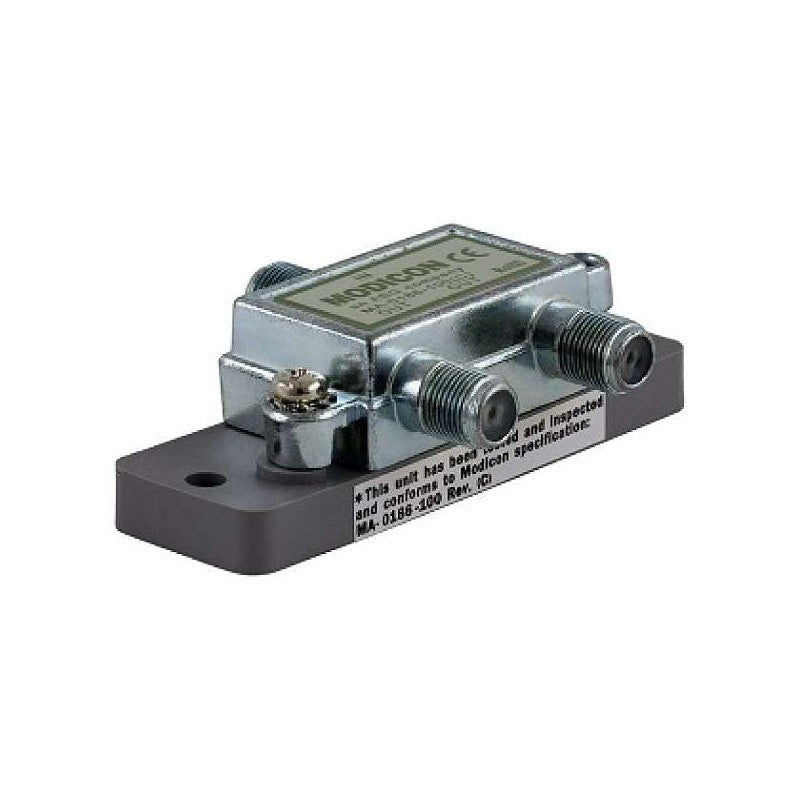

140CHS32000 Schneider
Schneider 140CHS32000 Schneider
$314.47
Only 4 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Accessory / separate part designation Hot Standby splitter kit for coaxial cable
Accessory / Separate Part Type Splitter kit
Accessory / separate part category Connection accessories
Accessory / separate part destination Coaxial cable with terminator 520402000 for trunk cable

Complementary

Characteristic Value(s)
Kit composition 2 splitter boxes MA0186100
4 line impedances 520720000
140CHS41010 Schneider
Schneider 140CHS41010 Schneider
$0.00
Sold Out

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform

Complementary

Characteristic Value(s)
Kit type Hot Standby kit
Kit composition 1 CHS loadable software package
1 installation manual
2 140CPU11302 Quantum CPUs
1 S908 terminator kit
2 140CRP93101 remote I/O processors
2 140XBP00600 backplanes
1 fiber optic (3m) hot standby cable
2 140CPS11100 power supplies
2 140CHS11000 hot standby processors
140CHS41020 Schneider
Schneider 140CHS41020 Schneider
$0.00
Sold Out

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform

Complementary

Characteristic Value(s)
Kit type Hot Standby kit
Kit composition 2 140CRP93101 remote I/O processors
2 140CPU11303 Quantum CPUs
2 140CPS11100 power supplies
1 S908 terminator kit
2 140CHS11000 hot standby processors
1 fiber optic (3m) hot standby cable
2 140XBP00600 backplanes
1 CHS loadable software package
1 installation manual
140CRA21100 Schneider
Schneider 140CRA21100 Schneider
$0.00
Sold Out

DIO drop interface Modicon Quantum - 115/230 V AC - 1 single port

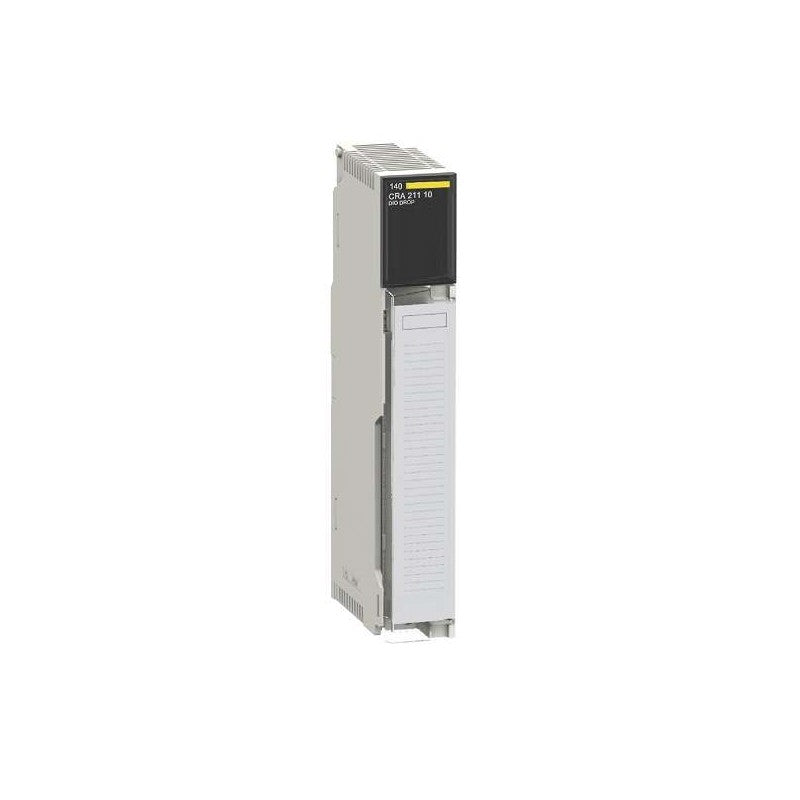

140CRA21110 Schneider
Schneider 140CRA21110 Schneider
$951.37
In stock, 13 units

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type DIO drop interface

Complementary

Characteristic Value(s)
Number of port 1 single
[Us] rated supply voltage 115/230 V AC
Supply voltage limits 85…276 V
Supply frequency 47...63 Hz
Maximum supply current 0.2 A 115 V
0.4 A 230 V
Inrush current 10 A 115 V
20 A 230 V
Rated power in VA 50 VA
Associated fuse rating 1.5 A
Output voltage 5.1 V
nominal output current 3 A
Minimum load current 0 A
Short-circuit protection With
Output overvoltage protection With
I/O words 30 I/32 O
Typical backplanes 3 positions
2 positions
6 positions
16 positions
10 positions
4 positions
Diagnostics startup RAM address
RAM
Checksum
Diagnostics run time RAM address
RAM
Checksum
Power dissipation in W 11 W
Connections - Terminals Terminal block, 7 poles
Module format Standard

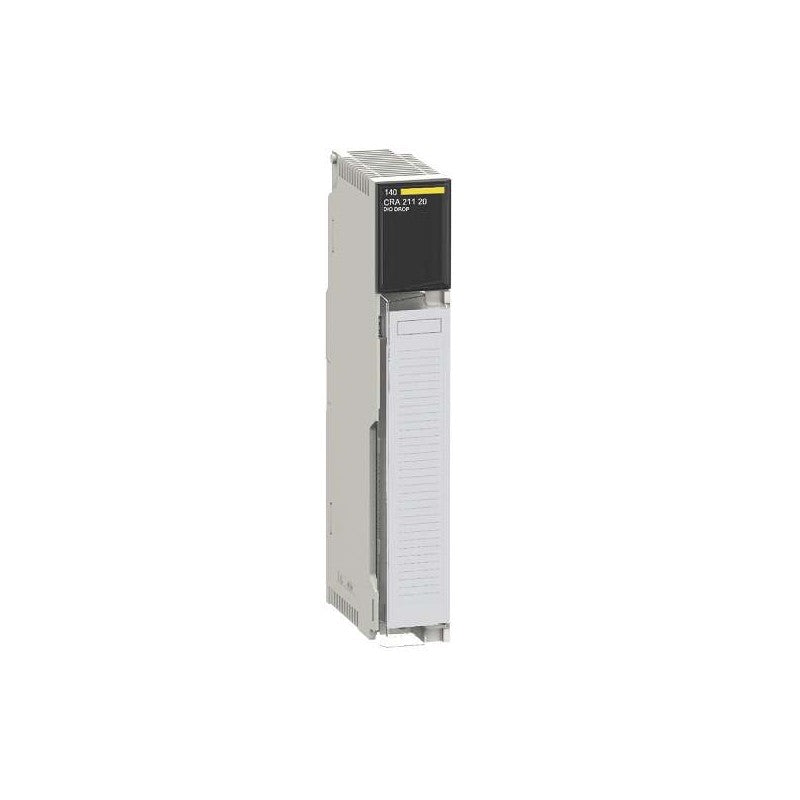

140CRA21120 Schneider
Schneider 140CRA21120 Schneider
$1,108.01
Only 5 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type DIO drop interface

Complementary

Characteristic Value(s)
Number of port 2 redundant
[Us] rated supply voltage 24 V DC
Supply voltage limits 20…30 V
Maximum supply current 1.6 A 24 V
Inrush current 30 A 24 V
Maximum buffer time 1 ms
Associated fuse rating 2.5 A
Output voltage 5.1 V
nominal output current 3 A
Minimum load current 0 A
Short-circuit protection With
Output overvoltage protection With
I/O words 30 I/32 O
Typical backplanes 2 positions
3 positions
6 positions
16 positions
4 positions
10 positions
Diagnostics startup Checksum
RAM
RAM address
Diagnostics run time Checksum
RAM address
RAM
Power dissipation in W 11 W
Connections - Terminals Terminal block, 7 poles
Module format Standard
140CRA21210 Schneider
Schneider 140CRA21210 Schneider
$564.18
Only 7 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type DIO drop interface

Complementary

Characteristic Value(s)
Number of port 1 single
[Us] rated supply voltage 115/230 V AC
Supply voltage limits 85…276 V
Supply frequency 47...63 Hz
Maximum supply current 0.2 A 115 V
0.4 A 230 V
Inrush current 10 A 115 V
20 A 230 V
Rated power in VA 50 VA
Associated fuse rating 1.5 A
Output voltage 5.1 V
nominal output current 3 A
Minimum load current 0 A
Short-circuit protection With
Output overvoltage protection With
I/O words 30 I/32 O
Typical backplanes 16 positions
6 positions
3 positions
2 positions
4 positions
10 positions
Diagnostics startup RAM address
Checksum
RAM
Diagnostics run time RAM address
RAM
Checksum
Power dissipation in W 11 W
Connections - Terminals Terminal block, 7 poles
Module format Standard
140CRA93100 Schneider
Schneider 140CRA93100 Schneider
$583.63
In stock, 14 units

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type RIO drop adaptor module

Complementary

Characteristic Value(s)
Product Compatibility Quantum
Maximum Number of I/O Expansion Module 27
Type of cable 75 Ohm coaxial
Transmission Rate 1544 Mbit/s
Dynamic range 35 dB
Isolation voltage 500 V DC coaxial center and ground
Electrical connection 1 female connector F, elbowed with single cable
Diagnostics startup Executive checksum
RAM address/data
Power up and runtime
Power dissipation in W 3 W 1 channel
Bus current requirement 600 mA 1 channel
Module format Standard

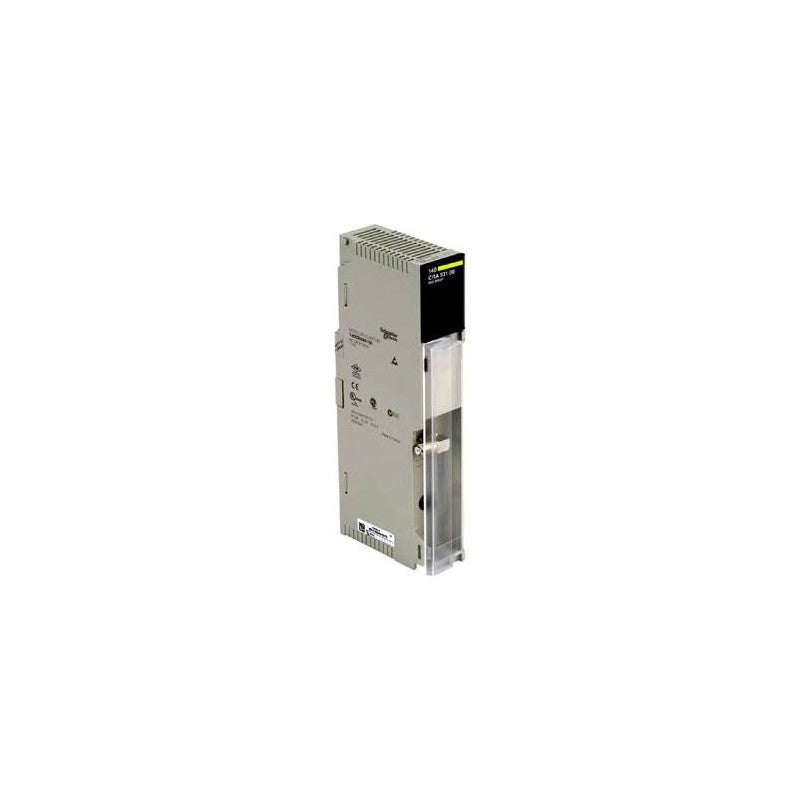

140CRA93100C Schneider
Schneider 140CRA93100C Schneider
$1,425.76
Only 2 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type RIO drop adaptor module

Complementary

Characteristic Value(s)
Product Compatibility Quantum
Maximum Number of I/O Expansion Module 27
Type of cable 75 Ohm coaxial
Transmission Rate 1544 Mbit/s
Dynamic range 35 dB
Isolation voltage 500 V DC coaxial center and ground
Electrical connection 1 female connector F, elbowed with single cable
Diagnostics startup Power up and runtime
RAM address/data
Executive checksum
Power dissipation in W 3 W 1 channel
Bus current requirement 600 mA 1 channel
Module format Standard

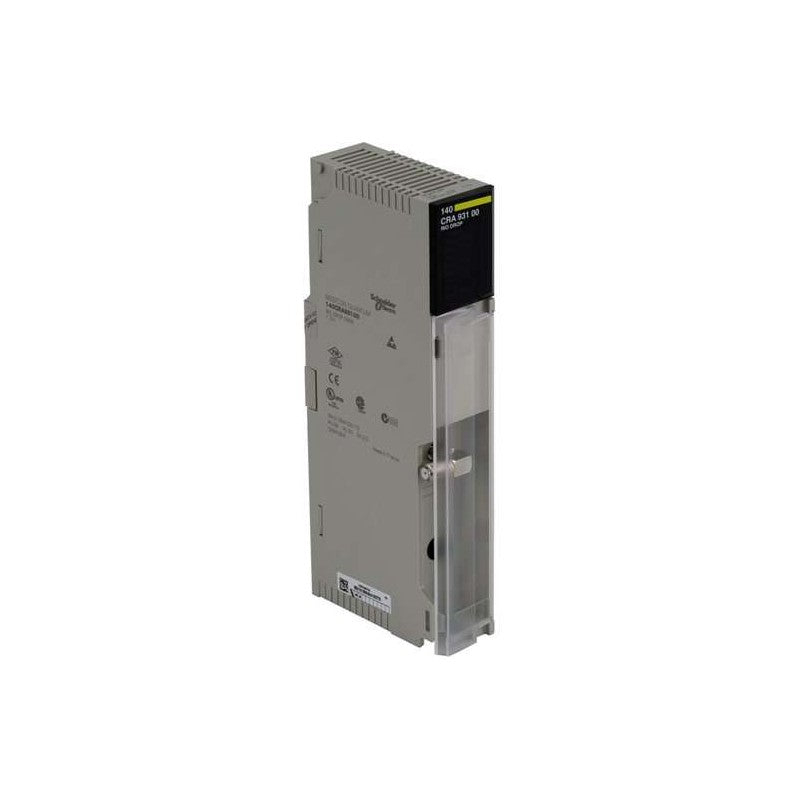

140CRA93101 Schneider
Schneider 140CRA93101 Schneider
$0.00
Sold Out

Main

Characteristic Value(s)
Device short name CRA
Product or Component Type RIO drop adaptor module
Range of Product Modicon Quantum automation platform

Complementary

Characteristic Value(s)
Electrical connection 1 female connector F, elbowed
Range Compatibility Modicon Quantum
SAT connector 1 female F type

Recently viewed
