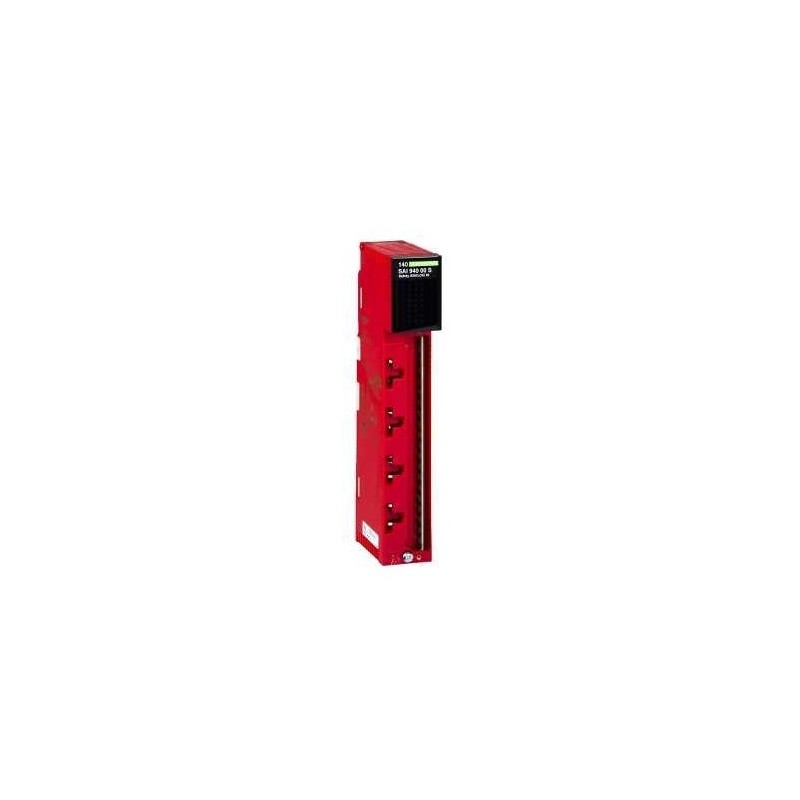

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Analogue safety input module |
| Type of filter | Single pole low pass - 3 dB at 15 Hz |
Complementary
| Characteristic | Value(s) |
|---|---|
| Analogue input number | 8 |
| Addressing requirement | 13 input words |
| Analogue input resolution | 16 bits |
| Linear measuring range | 0...25 mA |
| Absolute maximum input | 35 mA |
| Input impedance | 287 Ohm |
| Absolute accuracy error | +/- 0.3 % +/- 0.35 % of full scale maximum |
| Linearity error | +/- 2 µA max 32â¦140 °F (0â¦60 °C) |
| Common mode rejection | - 65 dB 60 Hz - 70 dB 50 Hz |
| Isolation between channels and bus | 1500 V AC 60 s |
| Isolation between channels | 500 V AC 60 s |
| Update time | 15 ms |
| Fault type | Overtacking scale |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 8 LEDs (green) for input status 8 LEDs (red) for system failure, diagnostic of internal channel fault |
| Bus current requirement | 400 mA |
| Power dissipation in W | 3.5 W |

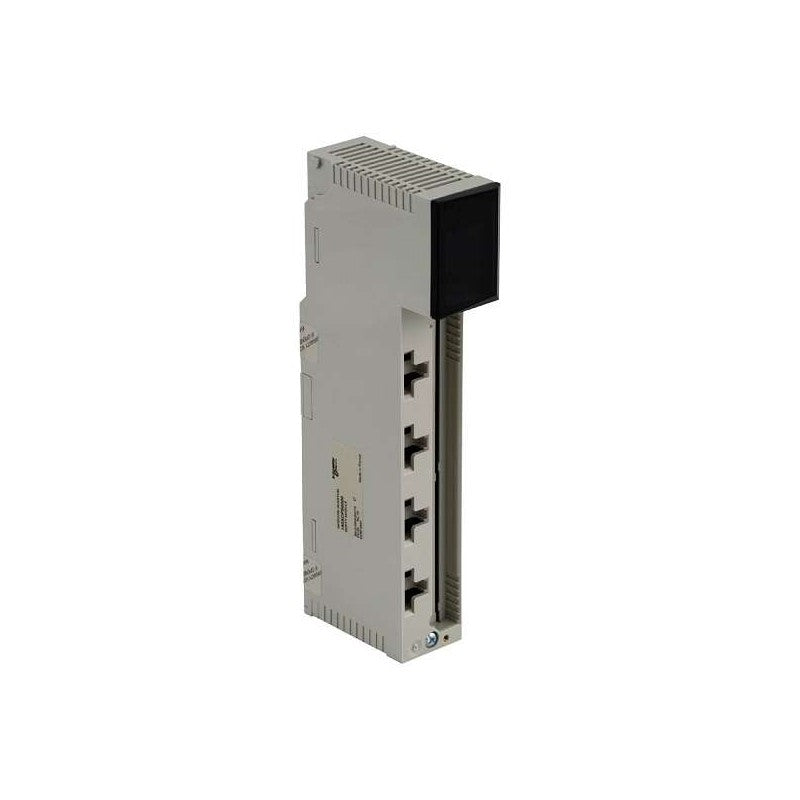

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Accessory / separate part designation | Dummy module with cover |
| Accessory / Separate Part Type | Dummy module |
| Accessory / separate part destination | Quantum discrete I/O module |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Accessory / separate part designation | Dummy module without terminal block |
| Accessory / Separate Part Type | Dummy module |
| Accessory / separate part destination | Quantum discrete I/O module |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Intrinsically safe discrete output module |
| Software designation | Concept V2.2 and above ProWORX Unity Pro |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product destination | In conjunction with products for zone 20, 21 or 22 |
| Discrete output voltage | 24 V |
| Discrete output type | Open collector |
| Maximum load current | 360 mA per module 45 mA per point |
| off state leakage current | 0.4 mA per point |
| Response time | 1 ms resistive at state 0 to state 1 1 ms resistive at state 1 to state 0 |
| Protection Type | Transient voltage suppression Internal fuse |
| Hot swapping fallback | Not allowed per intrinsic safety standards |
| Power dissipation in W | 5 W |
| Isolation between channels and bus | 2500 V DC for 1 minute 1780 V 47...63 Hz AC |
| Marking | CE II1 G/D-EEx ia IIC |
| Bus current requirement | 2.2 A |
| Module format | Standard |
| Product Weight | 0.99 lb(US) (0.45 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Hot standby module |
| Software designation | Concept >= V2.0 ProWORX 32 NxT V2.0 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | All legacy 140CPU with LL984 language All 140CPU43412A/534 with IEC language |
| Input/output type | 800 Series Sy/Max (remote I/O only) Quantum |
| Transmission Rate | 10 Mbit/s |
| Transmission support medium | Fiber optic 9.8 ft (3 m) |
| Switching time | 13...48 ms |
| Electrical connection | 1 connector RJ45 for fiber optic receiver 1 connector RJ45 for fiber optic transmitter |
| Local signalling | 1 LED (amber) for module in standby 1 LED (green) for communication with I/O module 1 LED (green) for control process 1 LED (green) for ready module 1 LED (red) for communication error |
| Bus current requirement | 700 mA |
| Module format | Standard |
| Product Weight | 2.34 lb(US) (1.06 kg) |
Analog COUNTER 8 Channel Spectrum C
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | RIO drop adaptor module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | Quantum |
| Maximum Number of I/O Expansion Module | 27 |
| Type of cable | 75 Ohm coaxial |
| Transmission Rate | 1544 Mbit/s |
| Dynamic range | 35 dB |
| Isolation voltage | 500 V DC coaxial center and ground |
| Electrical connection | 1 female connector F, elbowed with single cable |
| Diagnostics startup | Power up and runtime RAM address/data Executive checksum |
| Power dissipation in W | 3 W 1 channel |
| Bus current requirement | 600 mA 1 channel |
| Module format | Standard |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Relay discrete output module |
| Discrete output number | 16 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Contacts type and composition | 1 NO |
| Contact form | Form A |
| Discrete output voltage | 20...250 V AC 30...150 V DC 5...30 V DC |
| Addressing requirement | 1 output word |
| Minimum load | 50 mA 20...250 V AC 50 mA 5...30 V DC |
| Maximum load current | 1 A 250/30 V AC/DC 1/8 hp cos phi = 0.4 1 A 250/30 V AC/DC tungsten 2 A 250/30 V AC/DC resistive 140 °F (60 °C) 300 mA 30...50 V DC resistive |
| Surge current | 10 A 10 ms capacitive |
| Switching capacity in VA | 500 VA resistive |
| Maximum response time on input open | 10 ms at state 0 to state 1 20 ms at state 1 to state 0 |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles 100 mA 30...150 V DC L/R = 10 ms 100000 cycles 2 A 30 V DC resistive 100000 cycles 30...150 V DC interposing relay 100000 cycles 300 mA 30...150 V DC resistive 200000 cycles 2 A 250 V AC resistive 50000 cycles 500 mA 30...150 V DC resistive |
| Output overvoltage protection | Internal by varistor, 275 V |
| Isolation between channels | 1780 Vrms AC for 1 minute |
| Isolation between channels and bus | 1780 Vrms AC for 1 minute 2500 V DC for 1 minute |
| Power dissipation | 5.5 W + (0.5 x the number of points on) |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) for input status 16 LEDs (green) |
| Bus current requirement | 1100 mA |
| Module format | Standard |
| Product Weight | 0.90 lb(US) (0.41 kg) |

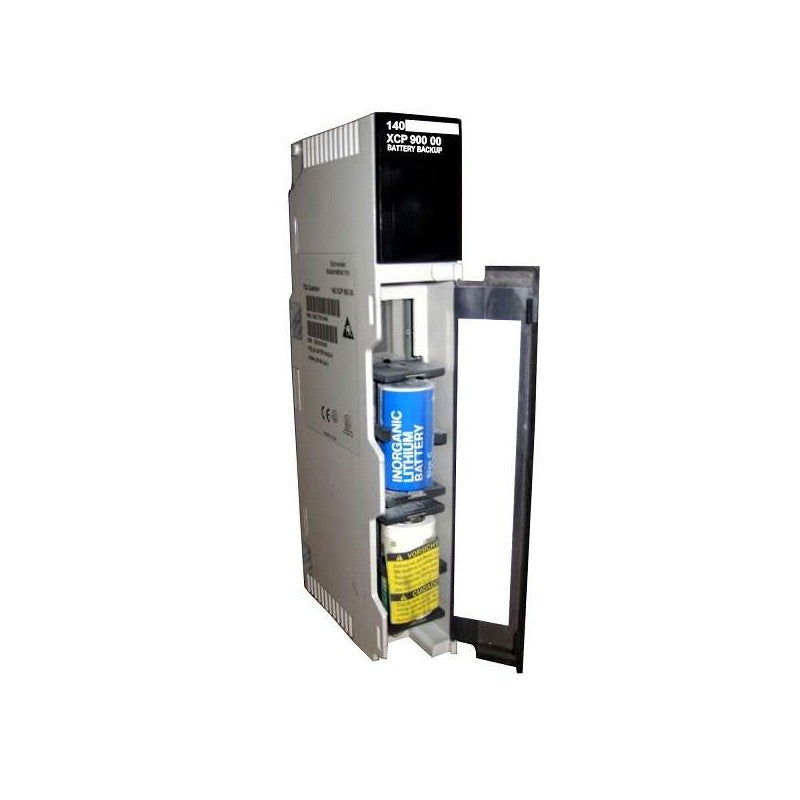

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Accessory / separate part designation | Backup battery holder module |
| Accessory / Separate Part Type | Battery |
| Accessory / separate part category | Separate parts |
| Accessory / separate part destination | Multifunction input module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | 140ERT85410 |
| Product Specific Application | For standard applications |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Multifunction input module |
| Number of terminals | 40 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Function of module | Status logging counting 500 Hz Status monitoring on discrete inputs Time and date stamped event logging |
| Time synchronisation protocol | DCF77 IRIG-B |
| Product compatibility | Unity Pro V4.1 - without IRIG-B or TXSNTP100 function Unity Pro V5.0 - without IRIG-B or TXSNTP100 function Unity Pro V6.0 - without IRIG-B or TXSNTP100 function Unity Pro V7.0 |
| Group of channels | 2 groups of 16 inputs process input |
| Discrete input number | 1 24 V clock signal input 32 24...125 V process input |
| Switching voltage | 125 V 1 mA process input 24 V 6 mA process input 48 V 2.5 mA process input 60 V 2.5 mA process input |
| Maximum power consumption in W | 7.5 W process input |
| Insulation | By optocoupler clock signal input |
| Insulation between group of channels | By optocoupler |
| Anti bounce filtering | Configurable from 0 to 255 ms |
| Input state | Inversion configurable |
| Acquisition time | 1 ms clock signal input |
| Input current | 5 mA clock signal input |
| Electrical connection | Cable - shielded cable <1968.5 ft (600 m) process input Cable - unshielded cable <1312.3 ft (400 m) process input |
| Connections - Terminals | Screw terminal block |
| Local signalling | for communication on the bus (Active) 1 LED (green) for self test OK, module ready (R) 1 LED (green) for fault (F) 1 LED (red) for status of inputs (1 to 32) 32 LEDs |
| Current consumption | 300 mA 5 V DC bus 20 mA 24...125 V DC external power supply per group of channel |
| Module format | Standard |
| Product Weight | 0.99 lb(US) (0.45 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | High-speed counter module |
| Number of channels | 5 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of inputs | 8 |
| Addressing requirement | 12 output words 12 input words |
| Data format | 2147483647 dec 32 bits 65535 dec 16 bits |
| Counting input voltage | 30 V DC max |
| Counting input current | 7 mA |
| Counting input type | Discrete incremental counter |
| Counting frequency | 100000 Hz |
| Duty cycle | 1/1 counter input |
| Discrete input current | 5 mA |
| Operating threshold | 15...30 V single ended mode 24 V REF DC at state on 3...5 V single ended mode 24 V REF DC at state off |
| Discrete output number | 8 |
| Discrete output type | Field Effect Transistor (FET) |
| Discrete output voltage | 0 V switch off DC 20...30 V switch on DC |
| Load current | 0.21 A |
| Maximum leakage current | 0.1 mA state off |
| Maximum voltage drop | <1.25 V state on |
| Isolation between channels and bus | 500 Vrms 60 s |
| Fault type | Loss of output field power |
| Output short-circuit protection | Internal |
| Power dissipation | >= 6 W |
| Bus current requirement | 250 mA |
| External power requirement | 19.2...30 V |
| Rack type | Local Distributed Remote |
| Local signalling | for channel status 5 LEDs |
| Marking | CE |
| Current consumption | <= 1140 mA 24 V DC external power supply |
| Module format | Standard |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | ASCII serial link module |
| Software name | Concept > V2 ProWORX 32 > V2 ProWORX NxT > V2 Unity Pro > V2 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | All Quantum CPU |
| Product Specific Application | For standard applications |
| Mode of Transmission | ASCII |
| Number of port | 2 RS232C non isolated DIN 66020 |
| Electrical connection | 2 connectors SUB-D 9 |
| Transmission Rate | 19.2 kbit/s |
| Maximum cable distance between devices | <65.6 ft (20 m) |
| Message nesting | 8 levels |
| Buffer size | 255 I bytes/255 O bytes |
| Number of messages | 255 |
| Message length | 127 characters + 1 checksum maximum |
| Clock | With calendar clock |
| Memory capacity | 128 kB flash 32 kB RAM |
| Maximum power dissipation in W | 2 W |
| Addressing requirement | 12 output words 12 input words |
| Bus current requirement | 300 mA |
| Module format | Standard |
| Product Weight | 0.7 lb(US) (0.3 kg) |

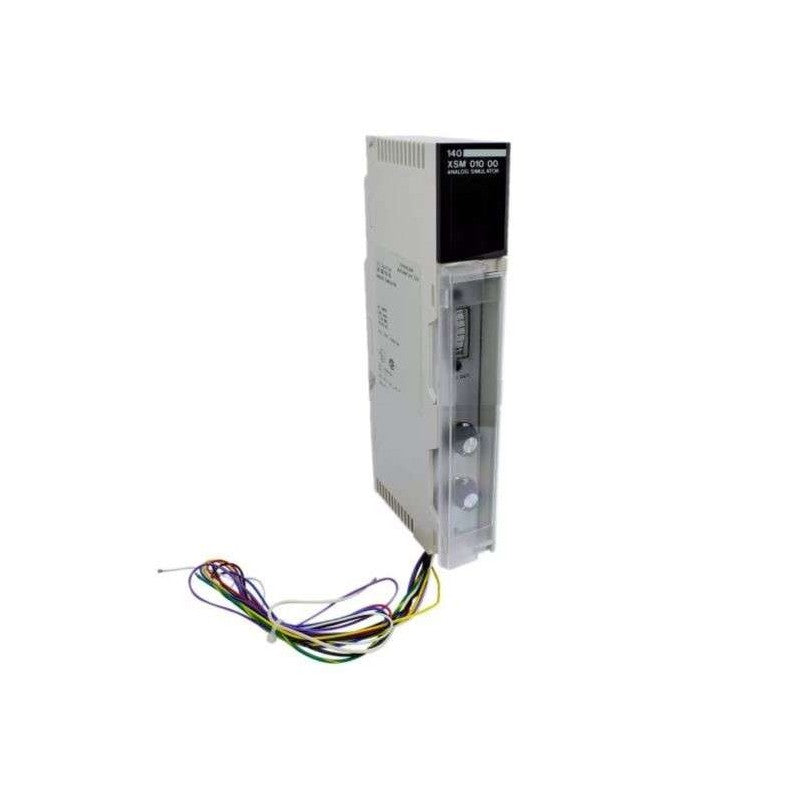

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Accessory / separate part designation | Analog I/O simulator |
| Accessory / Separate Part Type | Simulator |
| Accessory / separate part destination | I/O module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | 140AVI03000 140AVO02000 140ACO02000 140ATI03000 140ACI03000 140AMM09000 |
| Kit composition | Two 10-turn potentiometers One 0...5 V meter |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Racks backplanes |
| Product Specific Application | For remote I/O modules For distributed I/O modules For local I/O modules |
Complementary
| Characteristic | Value(s) |
|---|---|
| Free slots | 3 |
| Mounting Support | Mounting plate |
| Fixing Mode | By screw |
| Product Weight | 0.75 lb(US) (0.34 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Latch/interrupt module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of inputs | 16 |
| Discrete input type | Fast isolated |
| Absolute maximum input | 30 V DC |
| Voltage state 0 guaranteed | -3...5 V |
| Voltage state 1 guaranteed | 15...30 V |
| Current state 0 guaranteed | 2...8 mA |
| Current state 1 guaranteed | <= 0.5 mA |
| Response time | 130 µs Off-On 30 µs On-Off |
| Reverse polarity protection | Internal in 30 V |
| Isolation between channels | 500 V 60 s AC |
| Isolation between channels and bus | 1780 V 60 s AC |
| Bus current requirement | 400 mA |
| Power dissipation | 2.0 W + (0.3 x number of points on) |
| Mounting Support | Backplane for local architecture |
| Marking | CE |
| Module format | Standard |
Modicon Quantum - racks backplanes - 4 slots
Main
| Characteristic | Value(s) |
|---|---|

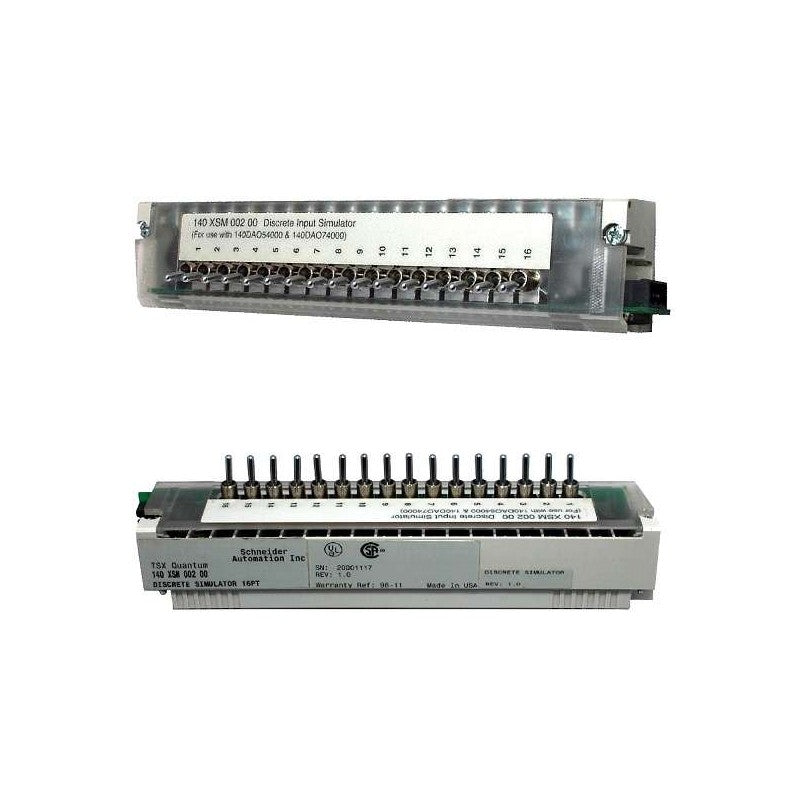

| Range of Product | Modicon Quantum automation platform |
| Accessory / separate part designation | Discrete input simulator 16 switches |
| Accessory / Separate Part Type | Discrete input simulator |
| Accessory / separate part destination | Quantum discrete I/O module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | 140DAI74000 140DAI54000 |
| Discrete input number | 16 |
| Input type | Switch |

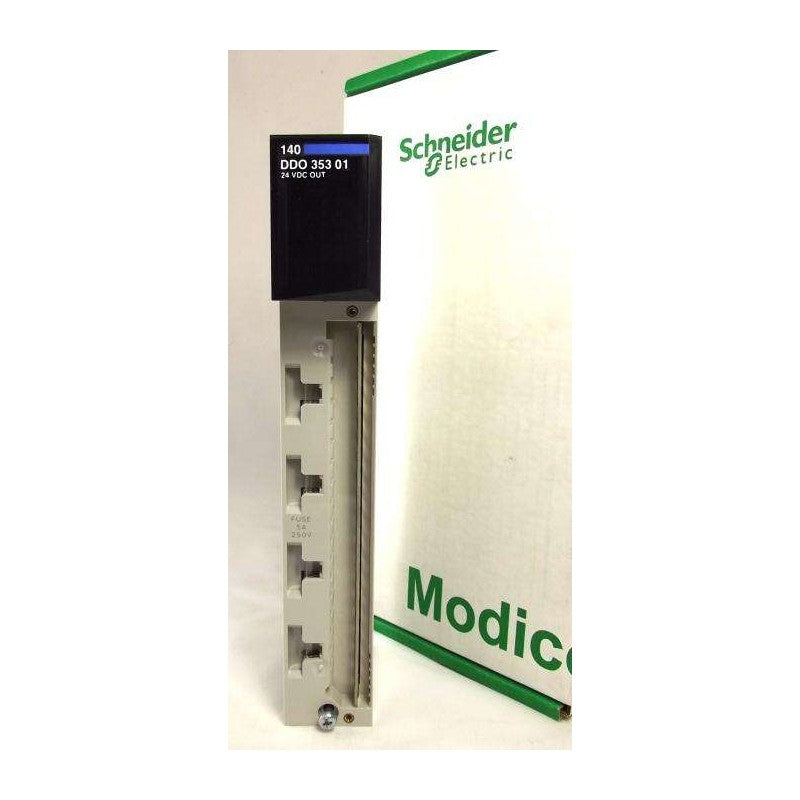

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Dc discrete output module |
| Discrete output number | 32 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Group of channels | 4 groups of 8 |
| Discrete output logic | Positive logic (source) |
| Addressing requirement | 2 output words |
| Discrete output voltage | 24 V DC |
| Output voltage limits | 19.2...30 V |
| Absolute maximum output | 50 V 1 s decaying pulse |
| Maximum voltage drop | <0.4 V 0.5 A |
| Maximum load current | 16 A per module 4 A per group |
| Surge current | 2 A |
| Response Time | <= 0.1 ms at state 1 to state 0 <= 1 ms at state 0 to state 1 |
| Maximum leakage current | 1 mA 24 V |
| Load inductance | Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) |
| Fault indication | Loss of field power Blown fuse |
| Associated fuse rating | 3 A each point 5 A per group |
| Isolation between channels and bus | 1780 Vrms DC for 1 minute |
| Isolation between group | 500 Vrms DC for 1 minute |
| Protection Type | Internal output protection by 5 A fuse per group |
| Power dissipation | 5 W |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 32 LEDs (green) for input status |
| Bus current requirement | 330 mA |
| Module format | Standard |
| Product Weight | 0.99 lb(US) (0.45 kg) |

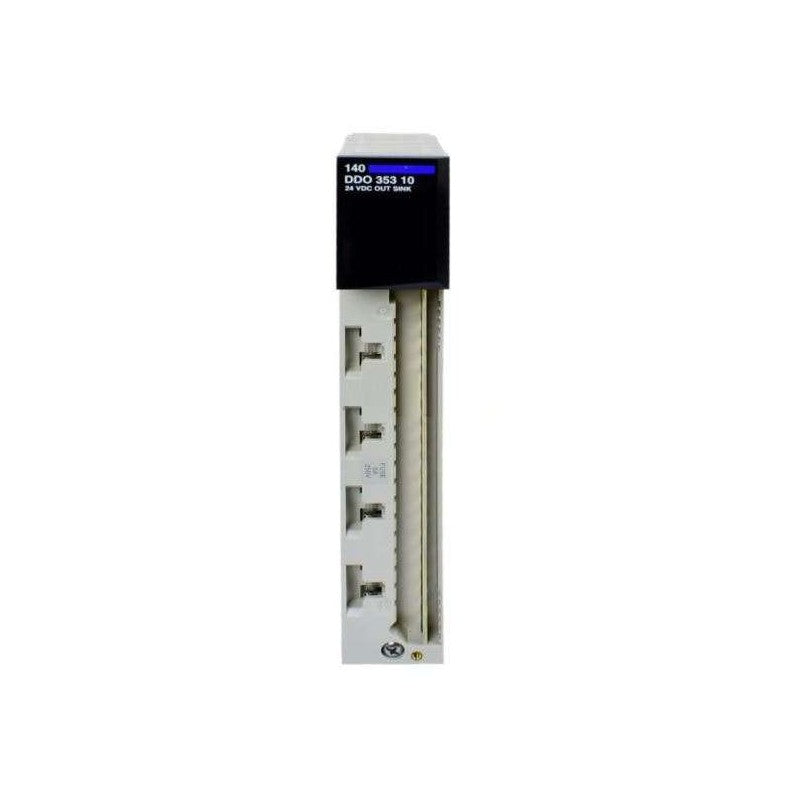

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Dc discrete output module |
| Discrete output number | 32 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Group of channels | 4 groups of 8 |
| Discrete output logic | Negative logic (sink) |
| Addressing requirement | 2 output words |
| Discrete output voltage | 24 V DC |
| Output voltage limits | 19.2...30 V |
| Absolute maximum output | 50 V 1 s decaying pulse |
| Maximum voltage drop | <0.4 V 0.5 A |
| Maximum load current | 16 A per module 4 A per group |
| Surge current | 5 A 1 ms |
| Response Time | <= 1 ms at state 0 to state 1 <= 1 ms at state 1 to state 0 |
| Maximum leakage current | 0.4 mA 30 V |
| Load inductance | Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) |
| Maximum tungsten load | 12 W 24 V |
| Fault indication | Loss of field power Blown fuse |
| Associated fuse rating | 3 A each point 5 A per group |
| Isolation between channels and bus | 1780 Vrms DC for 1 minute |
| Isolation between group | 500 Vrms DC for 1 minute |
| Protection Type | Internal output protection by 5 A fuse per group |
| Power dissipation | 2.0 W + (0.4 V x total load current) |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 32 LEDs (green) for input status |
| Bus current requirement | 330 mA |
| Module format | Standard |
| Product Weight | 0.99 lb(US) (0.45 kg) |

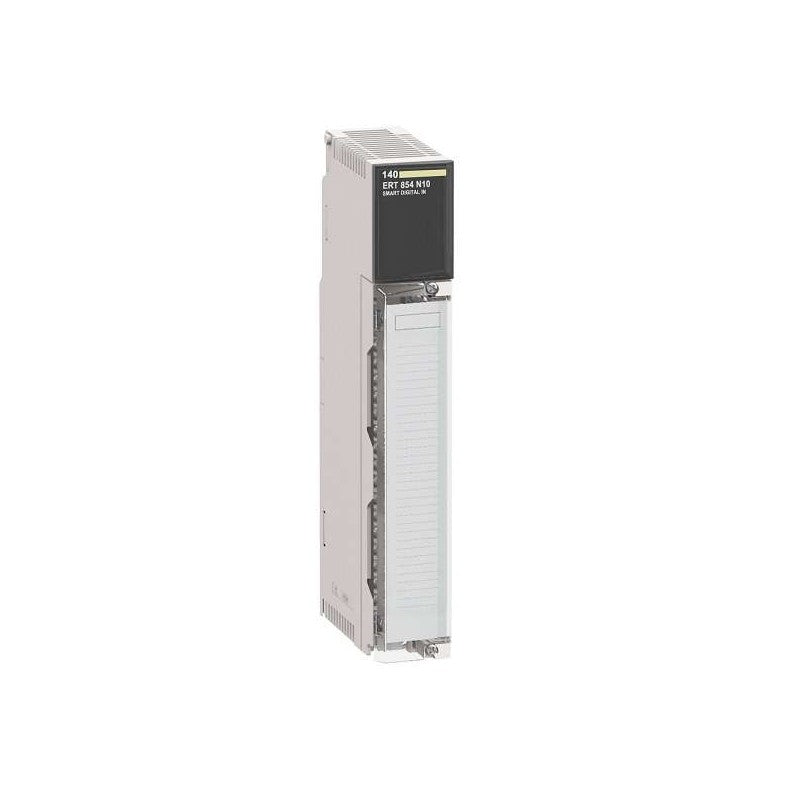

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Multifunction input module |
| Number of terminals | 40 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Function of module | Status logging counting 500 Hz Status monitoring on discrete inputs Time and date stamped event logging |
| Time synchronisation protocol | DCF77 |
| Product compatibility | Concept Unity Pro |
| Group of channels | 2 groups of 16 inputs process input |
| Discrete input number | 1 24 V clock signal input 32 24...125 V process input |
| Switching voltage | 125 V 1 mA process input 24 V 6 mA process input 48 V 2.5 mA process input 60 V 2.5 mA process input |
| Maximum power consumption in W | 7.5 W process input |
| Insulation | By optocoupler clock signal input |
| Insulation between group of channels | By optocoupler |
| Anti bounce filtering | Configurable from 0 to 255 ms |
| Input state | Inversion configurable |
| Acquisition time | 1 ms clock signal input |
| Input current | 5 mA clock signal input |
| Electrical connection | Cable - shielded cable <1968.5 ft (600 m) process input Cable - unshielded cable <1312.3 ft (400 m) process input |
| Connections - Terminals | Screw terminal block |
| Local signalling | 1 LED (green) for communication on the bus (Active) 1 LED (green) for self test OK, module ready (R) 1 LED (red) for fault (F) 32 LEDs for status of inputs (1 to 32) |
| Current consumption | 0.07 mA 24 V DC 140XCP90000 module 3 mA 24...125 V DC external power supply per group of channel 300 mA 5 V DC bus |
| Module format | Standard |
| Product Weight | 0.99 lb(US) (0.45 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Dc discrete output module |
| Discrete output number | 16 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Group of channels | 2 groups of 8 |
| Discrete output logic | Positive logic (source) |
| Addressing requirement | 1 output word |
| Discrete output voltage | 10...60 V DC |
| Output voltage limits | 10.2...72 V |
| Absolute maximum output | 72 V permanent |
| Maximum voltage drop | <1 V 2 A |
| Maximum load current | 12 A per module 6 A per group |
| Surge current | 7.5 A 50 s |
| Response Time | <= 1 ms at state 0 to state 1 <= 1 ms at state 1 to state 0 |
| Maximum leakage current | 1 mA 60 V |
| Load inductance | Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) |
| Associated fuse rating | 2 A each point 8 A per group |
| Isolation between channels and bus | 2500 Vrms DC for 1 minute |
| Isolation between group | 700 Vrms DC for 1 minute |
| Protection Type | Internal output protection by 8 A fuse per group |
| Power dissipation | 1 W + (1 V x total module load current) |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) for input status 16 LEDs (green) |
| Bus current requirement | 160 mA |
| Module format | Standard |
| Product Weight | 0.99 lb(US) (0.45 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Dc discrete output module |
| Discrete output number | 32 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Group of channels | 4 groups of 8 |
| Discrete output logic | Negative logic (sink) |
| Addressing requirement | 2 output words 2 input words |
| Discrete output voltage | 10...30 V DC |
| Absolute maximum output | 50 V 1 s decaying pulse |
| Maximum voltage drop | <0.4 V 0.5 A |
| Maximum load current | <= 0.5 A each point <= 16 A per module <= 4 A each group |
| Surge current | 2.5 A 1 ms |
| Response Time | <= 2 ms at state 0 to state 1 <= 2 ms at state 1 to state 0 1 ms at state 0 to state 1 1 ms at state 1 to state 0 |
| Short-circuit protection | With |
| Output overvoltage protection | With |
| Load inductance | Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) 0.5...4 Hz |
| Maximum tungsten load | 2.5 W 10 V 3 W 12 V 6 W 24 V |
| Fault indication | Incorrect output state Loss of field power Blown fuse |
| Protection Type | Internal output protection by 5 A fuse per group |
| Power dissipation | 2.5 W + (0.1 x all points on) + (0.4 x total load current) |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 32 LEDs (green) for input status |
| Bus current requirement | 500 mA |
| Module format | Standard |
| Product Weight | 0.7 lb(US) (0.3 kg) |

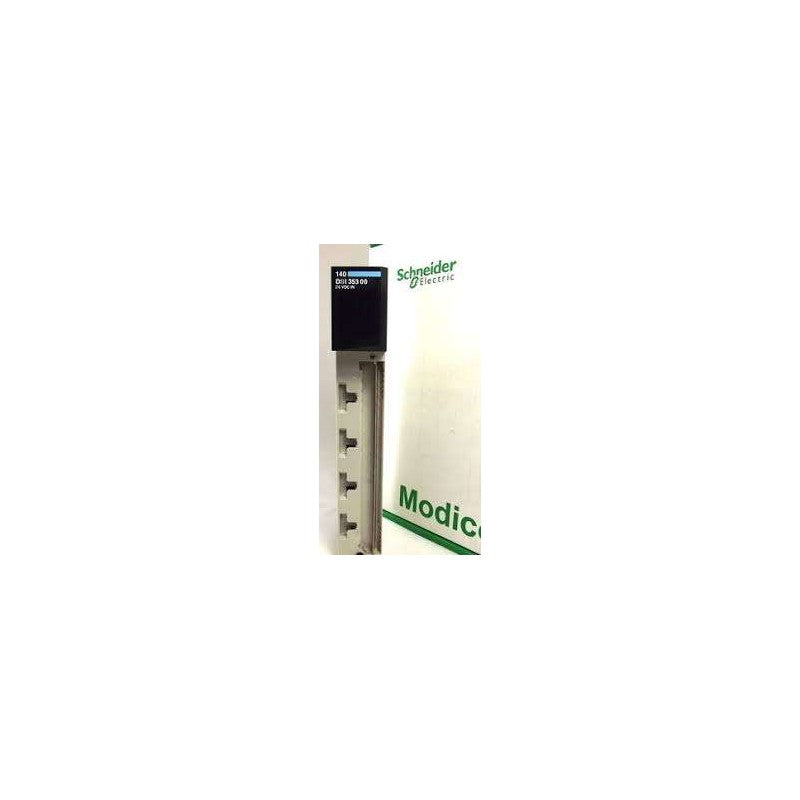

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Low voltage dc discrete input modules |
| Discrete input number | 32 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Group of channels | 4 |
| Logic input | Positive (sink) |
| Discrete input voltage | 24 V DC |
| Input voltage limits | 20...30 V |
| Voltage state 1 guaranteed | >= 11 V DC |
| Voltage state 0 guaranteed | <= 5 V DC |
| Current state 1 guaranteed | >= 2.5 mA |
| Current state 0 guaranteed | <= 1.2 mA |
| Addressing requirement | 4 input words |
| Absolute maximum input | 45 V during 10 ms decaying pulse |
| Response Time | 2.2 ms from state 0 to state 1 3.3 ms from state 1 to state 0 |
| Isolation between group and bus | 1780 Vrms for 1 minute |
| Isolation between group | 500 Vrms for 1 minute |
| Checks | Broken wire detection |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 32 LEDs (green) for input status |
| Marking | CE |
| Bus current requirement | 250 mA |
| Module format | Standard |
| Product Weight | 0.7 lb(US) (0.3 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Dc discrete output module |
| Discrete output number | 32 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Group of channels | 4 groups of 8 |
| Discrete output logic | Negative logic (sink) |
| Addressing requirement | 2 output words 2 input words |
| Discrete output voltage | 10...30 V DC |
| Absolute maximum output | 50 V 1 s decaying pulse |
| Maximum voltage drop | <0.4 V 0.5 A |
| Maximum load current | <= 0.5 A each point <= 16 A per module <= 4 A each group |
| Surge current | 2.5 A 1 ms |
| Response Time | <= 2 ms at state 0 to state 1 <= 2 ms at state 1 to state 0 1 ms at state 0 to state 1 1 ms at state 1 to state 0 |
| Short-circuit protection | With |
| Output overvoltage protection | With |
| Load inductance | Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) 0.5...4 Hz |
| Maximum tungsten load | 2.5 W 10 V 3 W 12 V 6 W 24 V |
| Fault indication | Incorrect output state Loss of field power Blown fuse |
| Protection Type | Internal output protection by 5 A fuse per group |
| Power dissipation | 2.5 W + (0.1 x all points on) + (0.4 x total load current) |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 32 LEDs (green) for input status |
| Bus current requirement | 500 mA |
| Module format | Standard |
| Product Weight | 0.7 lb(US) (0.3 kg) |
Main category name:Modules Sub category name:Quantum Vendor:Schneider
