| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Analogue input module |
| Type of filter | Single pole low pass - 3 dB at 15 Hz +/- 20 % |
Complementary
| Characteristic | Value(s) |
|---|---|
| Analogue input number | 8 |
| Input type | Differential |
| Addressing requirement | 9 input words |
| Analogue input resolution | 12 bits |
| Linear measuring range | 1...5 V 4...20 mA |
| Absolute maximum input | 50 V DC 25 mA |
| Input impedance | 250 Ohm current +/- 0.01 % > 20 MOhm voltage |
| Absolute accuracy error | +/- 0.05 % of full scale +/- 0.1 % of full scale maximum |
| Linearity error | +/- 0.04 % |
| Accuracy drift according to temperature | +/- 0.0025 % of full scale/°C <= 0.005 % of full scale/°C |
| Common mode rejection | > - 72 dB 60 Hz |
| Isolation between channels and bus | 1000 V DC 3000 V DC 60 s |
| Isolation between channels | 30 V DC |
| Update time | 5 ms |
| Fault type | Broken wire 4...20 mA Undervoltage range 1...5 V |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault 8 LEDs (green) for channel is turned on 8 LEDs (red) for channel fault |
| Bus current requirement | 240 mA |
| Power dissipation in W | 2 W |
| Module format | Standard |
| Product Weight | 0.7 lb(US) (0.3 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Analogue input module |
| Type of filter | Single pole low pass - 3 dB at 847 Hz +/- 20 % |
Complementary
| Characteristic | Value(s) |
|---|---|
| Analogue input number | 8 |
| Input type | Differential |
| Addressing requirement | 9 input words |
| Analogue input type | Bipolar current 20 mA Bipolar voltage +/- 10 V Bipolar voltage +/- 5 V Unipolar current 0...20 mA Unipolar voltage 0...10 V Unipolar voltage 0...5 V |
| Analogue input resolution | 16 bits +/- 10 V 16 bits +/- 5 V 16 bits 0...10 V 16 bits 0...20 mA 16 bits 0...5 V 16 bits 20 mA |
| Linear measuring range | (input range) x 1.024 mA (input range) x 1.024 V |
| Absolute maximum input | 50 V DC 25 mA |
| Input impedance | > 20 Ohm voltage 250 MOhm +/- 0.03 % |
| Absolute accuracy error | +/- 0.03 % +/- 0.05 % of full scale maximum |
| Linearity error | +/- 0.008 % |
| Accuracy drift according to temperature | +/- 0.0015 % of full scale/°C <= 0.004 % of full scale /°C |
| Common mode rejection | > - 80 dB 60 Hz |
| Isolation between channels and bus | 500 Vrms AC 60 s 750 V DC |
| Isolation between channels | 135 Vrms AC 200 V DC |
| Update time | 10 ms |
| Fault type | Broken wire 4...20 mA Overtacking scale 1...5 V |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault 8 LEDs (green) for channel is turned on 8 LEDs (red) for channel fault |
| Bus current requirement | 280 mA |
| Power dissipation in W | 2.2 W |
| Module format | Standard |
| Product Weight | 0.7 lb(US) (0.3 kg) |
Main

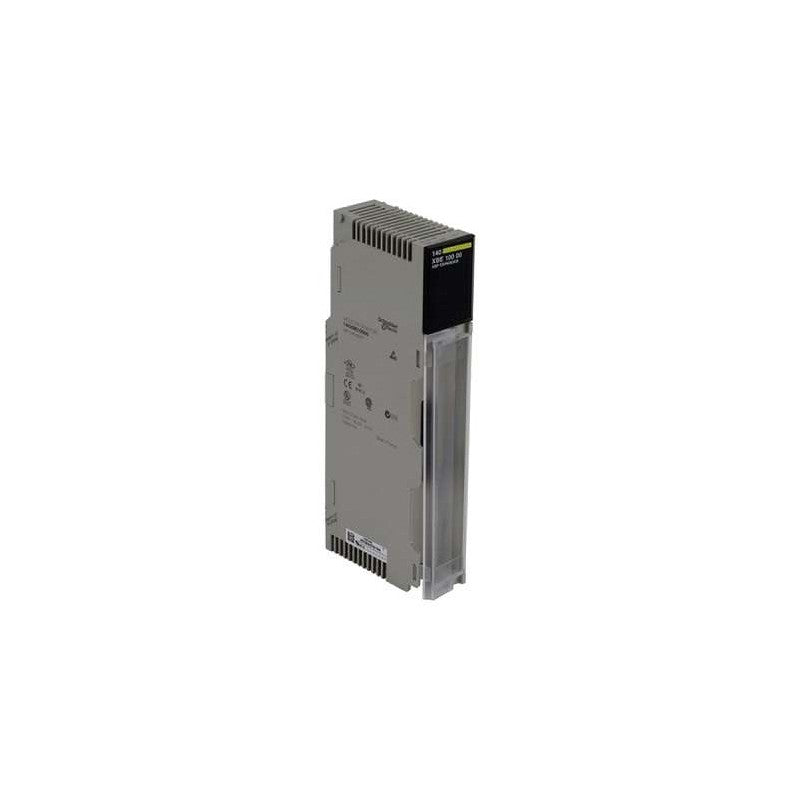

| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Accessory / separate part designation | Backplane expander |
| Accessory / Separate Part Type | Backplane expander |
| Accessory / separate part category | Extension accessories |
| Accessory / separate part destination | For Modicon Quantum backplanes 12...16 slots |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | 140XBP01600 |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |

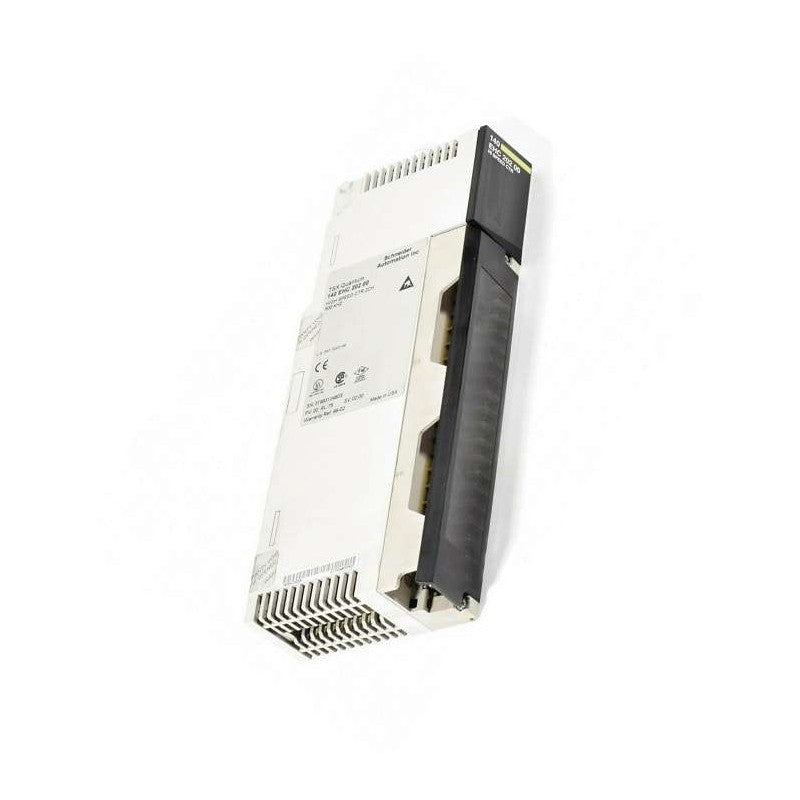

| Product or Component Type | High-speed counter module |
| Number of channels | 2 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Addressing requirement | 6 output words 6 input words |
| Data format | 2147483647 dec 32 bits 65535 dec 16 bits |
| Counting input type | Incremental or quadrature |
| Counting frequency | 500000 Hz |
| Discrete input voltage | < 30 V |
| Operating mode | Incremental or quadrature discrete input |
| Input resistance | 10 kOhm discrete input |
| Operating threshold | 0...11 V single ended mode 24 V DC at state off 0...2 V single ended mode 5 V DC at state on 0 V single ended mode 12 V DC at state on 13...24 V single ended mode 24 V DC at state on 2...7 V single ended mode 12 V DC at state off >= 1.8 V differential mode 3.5...5 V single ended mode 5 V DC at state off |
| Discrete output number | 4 |
| Discrete output type | Field Effect Transistor (FET) |
| Discrete output voltage | 0 V switch off DC 0.4 V switch on DC |
| Load current | 0.5 A |
| Maximum leakage current | 0.4 mA state off |
| Maximum voltage drop | <0.4 V state on |
| Protection type | 36 V transorb discrete output |
| Isolation between channels and bus | 1780 Vrms 60 s |
| Fault type | Loss of output field power |
| Output short-circuit protection | Blown fuse 2.5 A |
| Power dissipation | 4 + (0.4 x total module load current) |
| Bus current requirement | 650 mA |
| External power requirement | 19.2...30 V |
| Rack type | Local Remote Distributed |
| Local signalling | for channel status 2 LEDs |
| Marking | CE |
| Current consumption | <= 1050 mA 24 V DC external power supply |
| Module format | Standard |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |

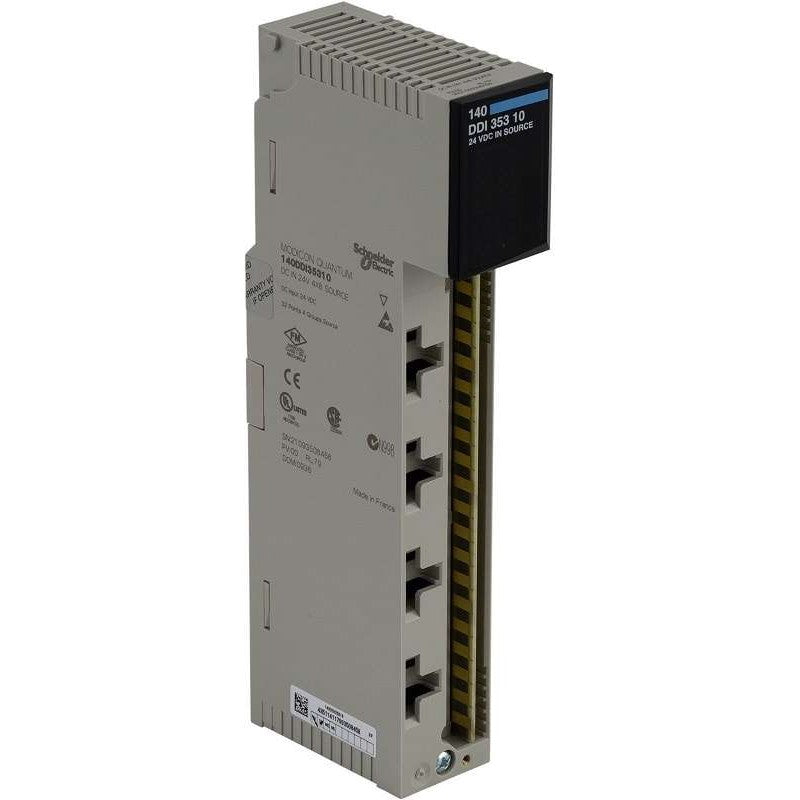

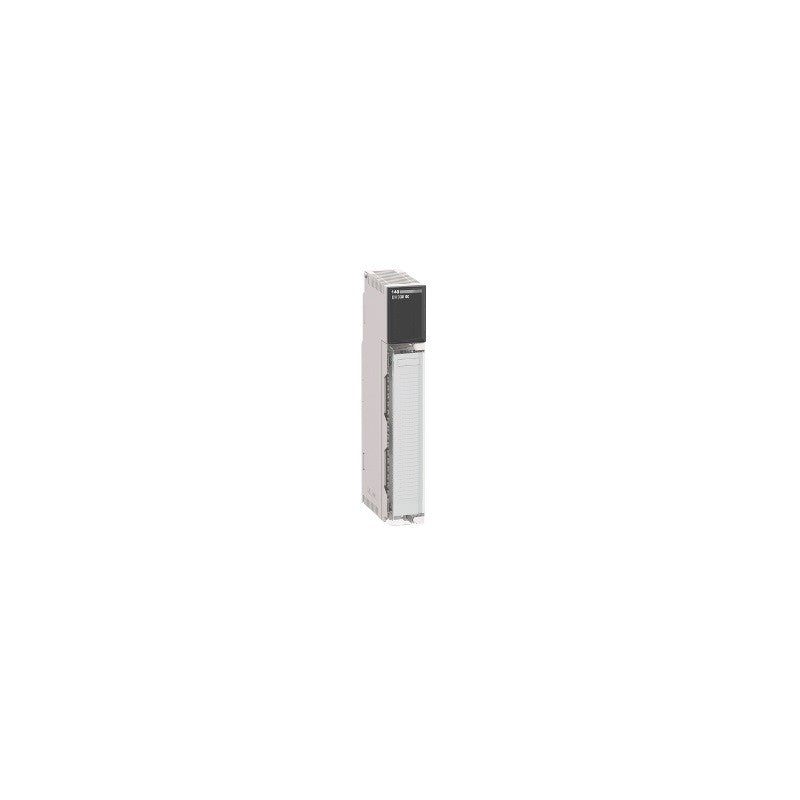

| Product or Component Type | Low voltage dc discrete input modules |
| Discrete input number | 32 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Group of channels | 4 |
| Logic input | Negative (source) |
| Discrete input voltage | 24 V DC |
| Input voltage limits | 19.2...30 V |
| Voltage state 1 guaranteed | -30...-15 V DC |
| Voltage state 0 guaranteed | -5...0 V DC |
| Current state 1 guaranteed | >= 2.5 mA at Us = - 14 V |
| Current state 0 guaranteed | <= 0.5 mA |
| Addressing requirement | 2 input words |
| Input impedance | 2400 Ohm |
| Maximum leakage current | 200 mA at Us = 5.5 V and Uin = 4 V |
| Absolute maximum input | 30 V continuous 50 V during 1 ms decaying pulse |
| Response Time | <= 1 ms from state 0 to state 1 <= 1 ms from state 1 to state 0 |
| Protection Type | Input protection by resistor limited |
| Power dissipation | 1.5 W + (0.26 x number of points on) |
| Isolation between group and bus | 1780 Vrms for 1 minute |
| Isolation between group | 500 Vrms for 1 minute |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 32 LEDs (green) for input status |
| Marking | CE |
| Bus current requirement | 330 mA |
| Module format | Standard |
| Product Weight | 0.7 lb(US) (0.3 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |

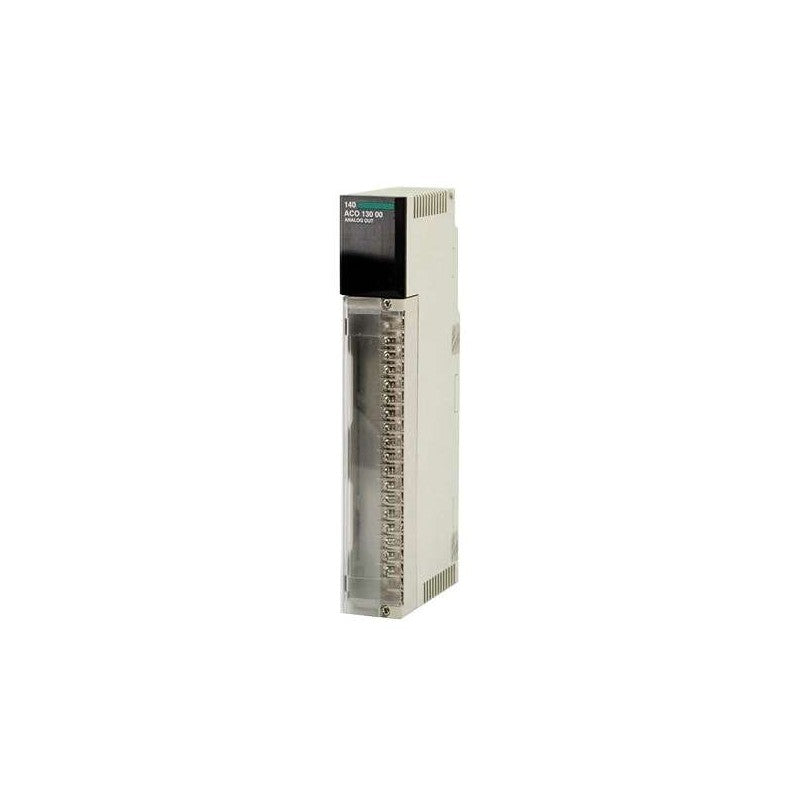

| Product or Component Type | Analogue output module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Analogue output number | 8 |
| Addressing requirement | 8 output words |
| Loop voltage | 6â¦30 V DC |
| Maximum voltage drop | <30 V 25 mA |
| Analogue output range | 0...20 mA 0...20000 counts 0...25 mA 0...25000 counts 4...20 mA 0...16000 counts 4...20 mA 0...4095 counts |
| Absolute accuracy error | +/- 0.2 % of full scale 77 °F (25 °C) |
| Linearity | +/- 12 µA 4...20 mA 0...4095 counts +/- 4 µA 0...20 mA 0...20000 counts +/- 4 µA 0...25 mA 0...25000 counts +/- 4 µA 4...20 mA 0...16000 counts |
| Accuracy drift according to temperature | 0.004 % of full scale/°C typical 0.007 % of full scale/°C maximum |
| Isolation between channels and bus | 1780 V for 1 minute AC |
| Update time | 5 ms |
| Setting time | 3.2 ms to +/-0.1% of the final value 1.6 ms to 5% of the final value |
| Fault type | Open circuit 4...20 mA |
| Bus current requirement | 550 mA |
| Maximum power dissipation in W | 5 W |
| External power requirement | 6...30 V |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault 8 LEDs (green) for channel is turned on 8 LEDs (red) for channel fault |
| Module format | Standard |
| Product Weight | 0.7 lb(US) (0.3 kg) |
Main

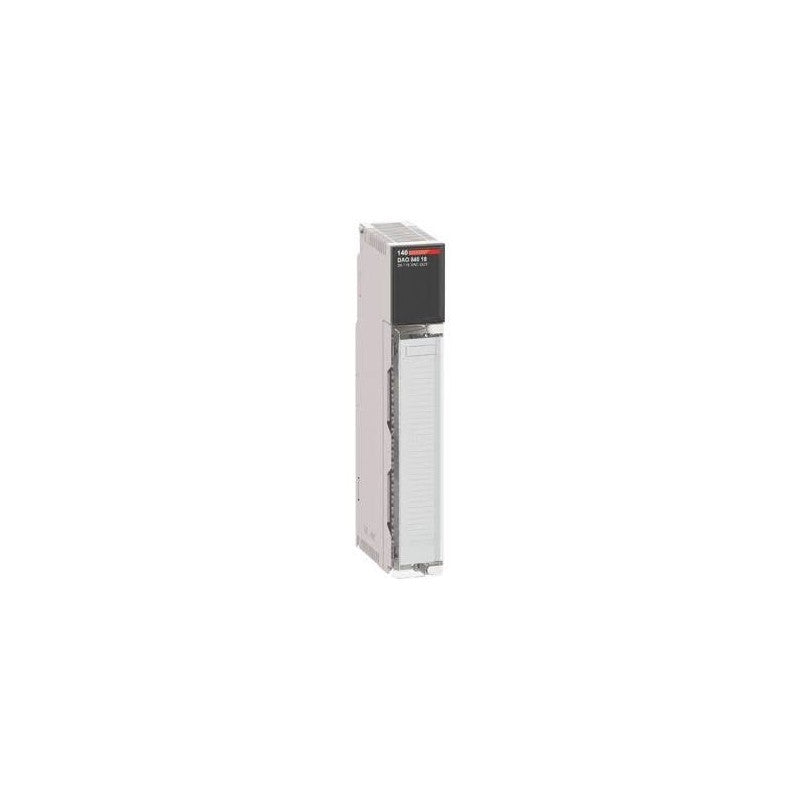

| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | AC discrete output modules |
| Discrete output number | 32 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Group of channels | 4 groups of 8 channels |
| Supply frequency | 47...63 Hz |
| Maximum voltage drop | 1.5 V |
| Discrete output voltage | 20...253 V AC |
| Addressing requirement | 2 output words |
| Absolute maximum output | 300 Vrms 10 s AC 400 Vrms 1 cycle AC |
| Maximum load current | 16 A rms per module 4 A rms per group 0.88 mA 230 V off state leakage per output 1 A rms 20...253 V per output |
| Surge current | 2.5 A 1 ms |
| DV/dt | 400 V/ms |
| Response Time | <= 0.5 ms at state 0 to state 1 <= 0.5 ms at state 1 to state 0 |
| Protection Type | Internal output protection by 4 A fuse Internal by RC filter |
| Power dissipation | 1.60 + (1.0 V x total module load current) |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 32 LEDs (green) for input status |
| Bus current requirement | 320 mA |
| Module format | Standard |
| Product Weight | 0.99 lb(US) (0.45 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |

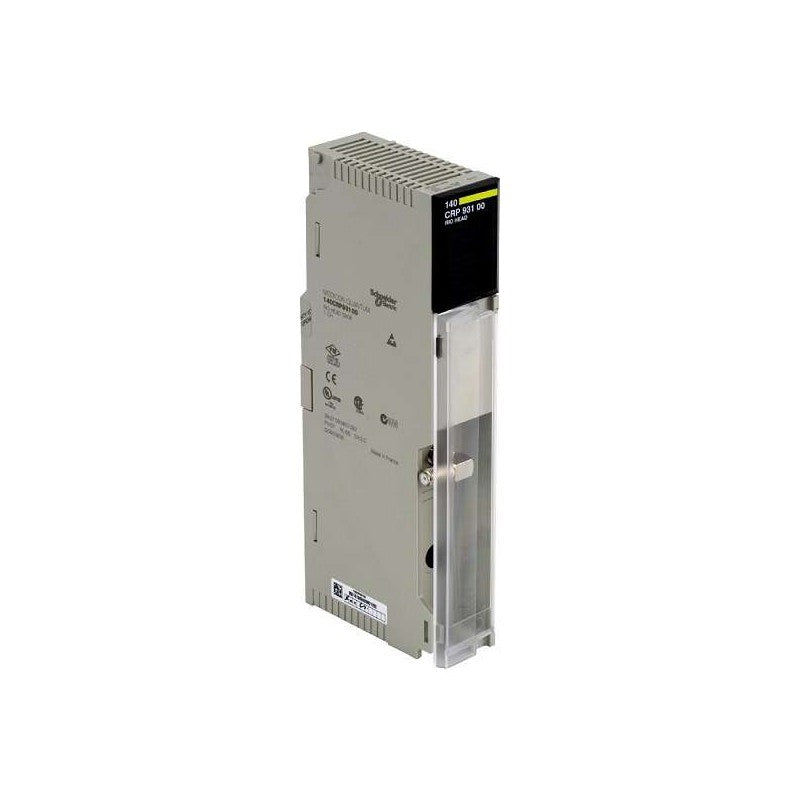

| Product or Component Type | RIO head-end adaptor module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | Quantum 200/500/800 series Symax (any mix) |
| Maximum drops/network | 31 |
| I/O words/drop | 64 I/64 O |
| Type of cable | 75 Ohm coaxial |
| Transmission Rate | 1544 Mbit/s |
| Dynamic range | 35 dB |
| Isolation voltage | 500 V DC coaxial center and ground |
| Electrical connection | 1 female connector F, elbowed with single cable |
| Diagnostics startup | Power up Memory check LAN controller check |
| Power dissipation in W | 3 W 1 channel |
| Marking | CE |
| Bus current requirement | 600 mA 1 channel |
| Module format | Standard |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |

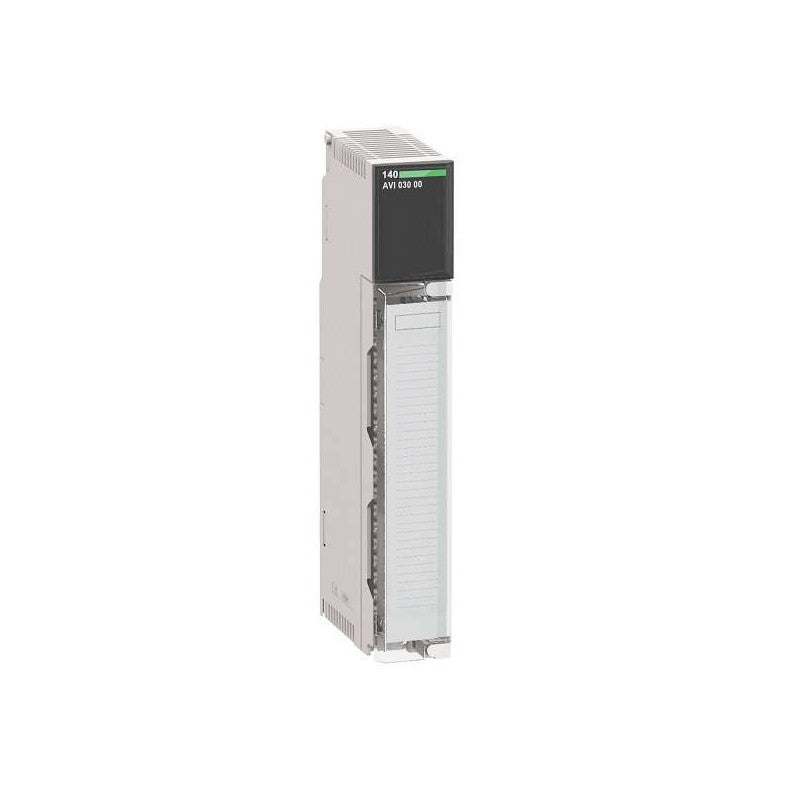

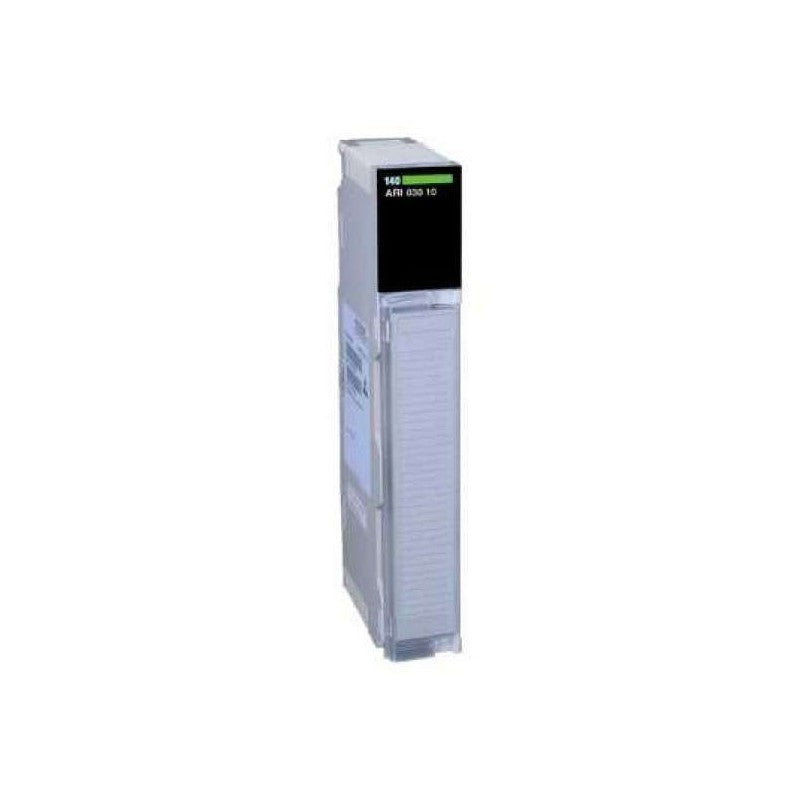

| Product or Component Type | Analogue input module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Analogue input number | 8 |
| Input type | Differential |
| Addressing requirement | 9 input words |
| Analogue input type | Temperature probe - 100...450 °C Pt 100, Pt 200, Pt 500, Pt 1000 Temperature probe - 200...850 °C Pt 100, Pt 200, Pt 500, Pt 1000 Temperature probe - 60...180 °C Ni 100, Ni 200, Ni 500, Ni 1000 Temperature probe 0.5 mA Ni 100, Ni 200, Ni 500, Ni 1000 Temperature probe 2.5 mA Pt 100, Pt 200, Ni 100, Ni 200 |
| Analogue input resolution | 13 bits |
| Input impedance | >= 10 MOhm |
| Absolute accuracy error | 0.1 °C |
| Linearity error | +/- 0.01 % full scale +/- 0.5 °C |
| Accuracy drift according to temperature | +/- 0.5 °C 77 °F (25 °C) +/- 0.9 °C 32â¦140 °F (0â¦60 °C) |
| Isolation between channels and bus | 1780 V AC 47...63 Hz 60 s 2500 V DC 60 s |
| Isolation between channels | 300 Vrms AC |
| Update time | 1200 ms 3 wires 640 ms 2 wires/4 wires |
| Fault type | Broken wire Overtacking scale |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault for channel is turned on 8 LEDs (green) for channel fault 8 LEDs (red) |
| Bus current requirement | 200 mA |
| Power dissipation in W | 1 W |
| Module format | Standard |
| Product Weight | 0.7 lb(US) (0.3 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |

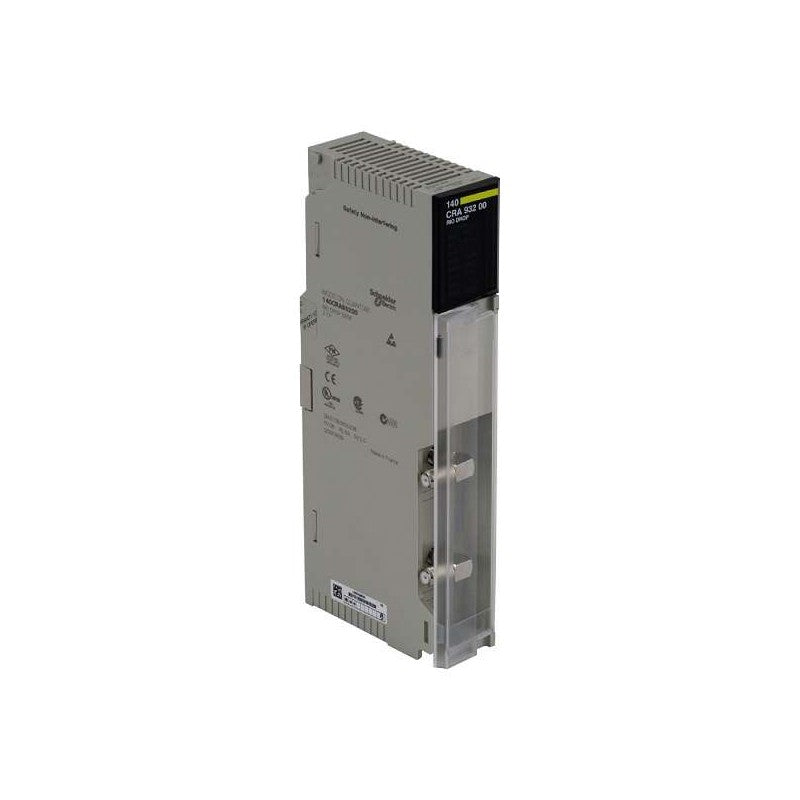

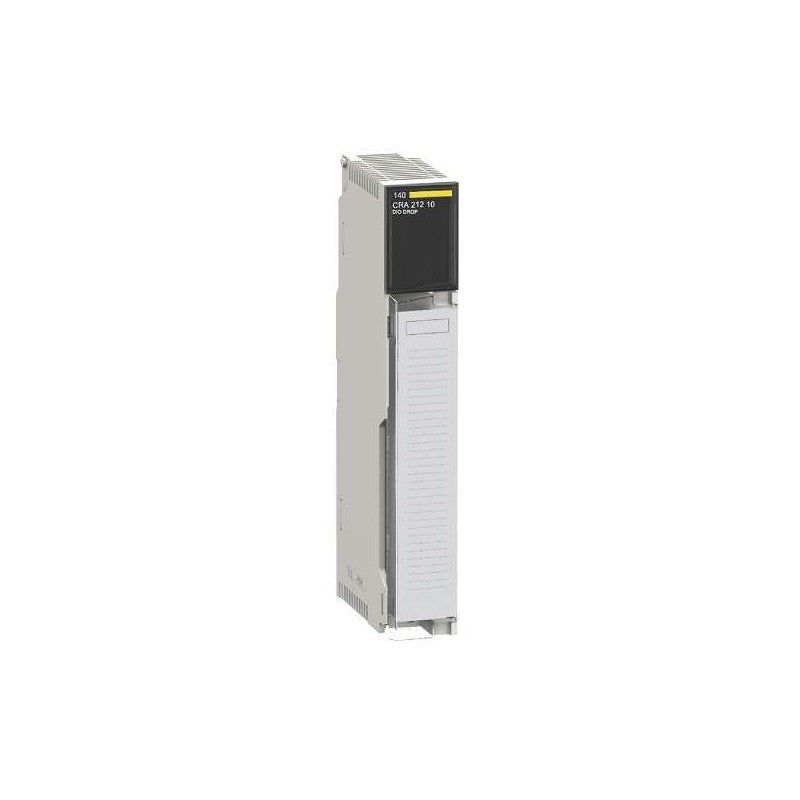

| Product or Component Type | RIO drop adaptor module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | Quantum |
| Maximum Number of I/O Expansion Module | 27 |
| Type of cable | 75 Ohm coaxial |
| Transmission Rate | 1544 Mbit/s |
| Dynamic range | 35 dB |
| Isolation voltage | 500 V DC coaxial center and ground |
| Electrical connection | 2 female connectors F, elbowed with redundant cable |
| Diagnostics startup | Power up and runtime RAM address/data Executive checksum |
| Power dissipation in W | 3.8 W 2 channels |
| Bus current requirement | 750 mA 2 channels |
| Module format | Standard |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | RIO drop adaptor module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | Quantum |
| Maximum Number of I/O Expansion Module | 27 |
| Type of cable | 75 Ohm coaxial |
| Transmission Rate | 1544 Mbit/s |
| Dynamic range | 35 dB |
| Isolation voltage | 500 V DC coaxial center and ground |
| Electrical connection | 1 female connector F, elbowed with single cable |
| Diagnostics startup | Executive checksum RAM address/data Power up and runtime |
| Power dissipation in W | 3 W 1 channel |
| Bus current requirement | 600 mA 1 channel |
| Module format | Standard |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Analogue output module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Analogue output number | 4 |
| Addressing requirement | 4 output words |
| Loop voltage | 12â¦30 V DC |
| Maximum voltage drop | <30 V 20 mA |
| Analogue output range | 4...20 mA 0...4096 counts, 12 bits bipolar current |
| Absolute accuracy error | +/- 0.20 % of full scale 77 °F (25 °C) |
| Linearity | +/- 1 LSB |
| Accuracy drift according to temperature | +/- 0.004 % of full scale/°C +/- 0.007 % of full scale/°C maximum |
| Isolation between channels | 500 V 47...63 Hz AC 750 V for 1 minute DC |
| Update time | 3 ms |
| Setting time | 900 µs to +/- 0.1 % of the final value |
| Fault type | Open circuit 4...20 mA |
| Bus current requirement | 480 mA |
| Maximum power dissipation in W | 5.3 W |
| External power requirement | 12...30 V |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault for channel is turned on 4 LEDs (green) for channel fault 4 LEDs (red) |
| Module format | Standard |
| Product Weight | 0.7 lb(US) (0.3 kg) |
Main

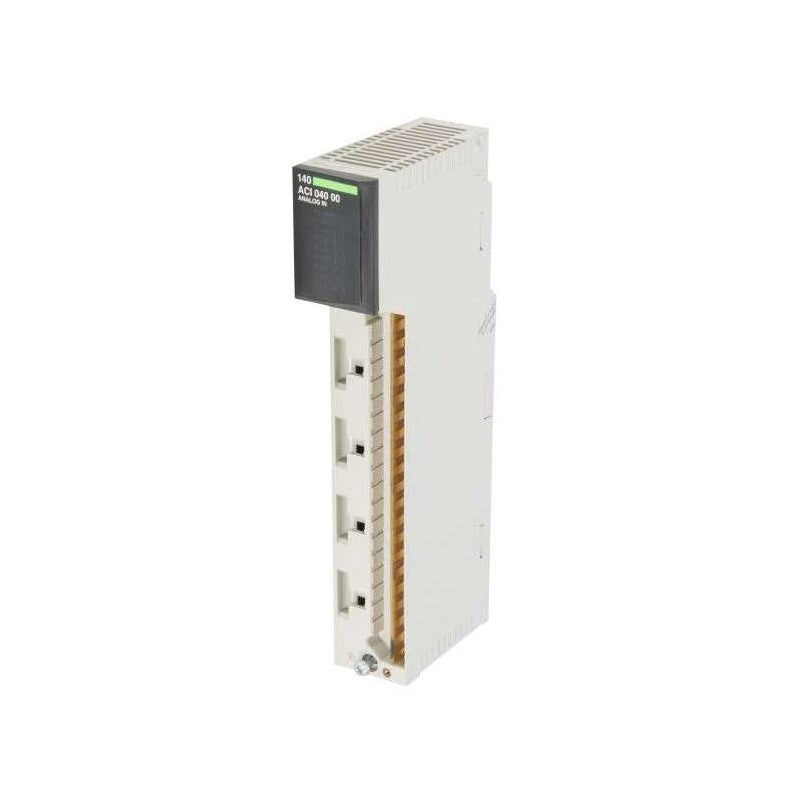

| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Analogue input module |
| Type of filter | Single pole low pass - 3 dB at 34 Hz +/- 25 % |
Complementary
| Characteristic | Value(s) |
|---|---|
| Analogue input number | 16 |
| Input type | Differential |
| Addressing requirement | 17 input words |
| Analogue input resolution | 0...16000 counts 4...20 mA 0...20000 counts 0...20 mA 0...25000 counts 0...25 mA 0...4095 counts 4...20 mA |
| Absolute maximum input | 30 mA |
| Input impedance | 250 Ohm |
| Absolute accuracy error | +/- 0.125 % of full scale |
| Linearity error | +/- 12 µA max 4...20 mA +/- 6 µA max 0...20 mA +/- 6 µA max 0...25 mA +/- 6 µA max 4...20 mA |
| Accuracy drift according to temperature | +/- 0.0025 % of full scale/°C <= 0.0050 % of full scale /°C |
| Common mode rejection | > - 90 dB 60 Hz |
| Isolation between channels and bus | 1780 V AC 60 s |
| Update time | 15 ms 2 wires/4 wires |
| Fault type | Broken wire 4...20 mA |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault 16 LEDs (green) for channel is turned on 16 LEDs (red) for channel fault |
| Bus current requirement | 360 mA |
| Power dissipation in W | 5 W |
| Module format | Standard |
| Product Weight | 0.7 lb(US) (0.3 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Relay discrete output module |
| Discrete output number | 16 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Contacts type and composition | 1 NO |
| Contact form | Form A |
| Discrete output voltage | 20...250 V AC 30...150 V DC 5...30 V DC |
| Addressing requirement | 1 output word |
| Minimum load | 50 mA 20...250 V AC 50 mA 5...30 V DC |
| Maximum load current | 1 A 250/30 V AC/DC 1/8 hp cos phi = 0.4 1 A 250/30 V AC/DC tungsten 2 A 250/30 V AC/DC resistive 140 °F (60 °C) 300 mA 30...50 V DC resistive |
| Surge current | 10 A 10 ms capacitive |
| Switching capacity in VA | 500 VA resistive |
| Maximum response time on input open | 10 ms at state 0 to state 1 20 ms at state 1 to state 0 |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles 100 mA 30...150 V DC L/R = 10 ms 100000 cycles 2 A 30 V DC resistive 100000 cycles 30...150 V DC interposing relay 100000 cycles 300 mA 30...150 V DC resistive 200000 cycles 2 A 250 V AC resistive 50000 cycles 500 mA 30...150 V DC resistive |
| Output overvoltage protection | Internal by varistor, 275 V |
| Isolation between channels | 1780 Vrms AC for 1 minute |
| Isolation between channels and bus | 1780 Vrms AC for 1 minute 2500 V DC for 1 minute |
| Power dissipation | 5.5 W + (0.5 x the number of points on) |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 16 LEDs (green) for input status |
| Bus current requirement | 1100 mA |
| Module format | Standard |
| Product Weight | 0.90 lb(US) (0.41 kg) |
MB+ PCMCIA Type 3 PNO with 32 Bit Drivers 416NHM21234 416-NHM-212-34
Main

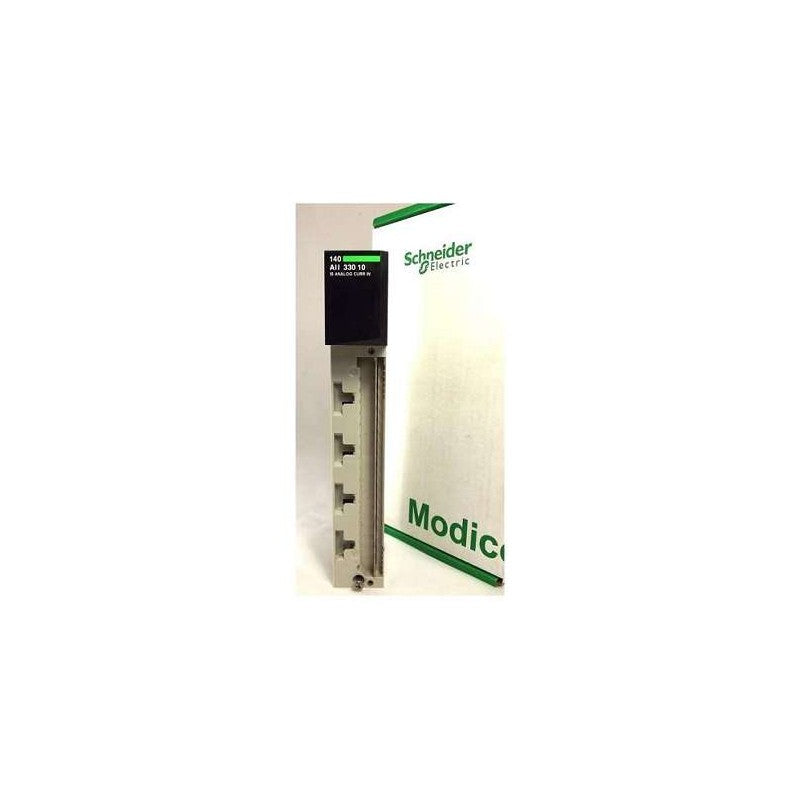

| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Intrinsically safe current input module |
| Software designation | Concept V2.2 and above ProWORX Unity Pro |
| Type of filter | Single low pass input filter -3 dB 15 Hz +/- 20 % |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product destination | In conjunction with products for zone 20, 21 or 22 |
| Analogue input number | 8 |
| Analogue input range | 0...25 mA 0...20 mA 4...20 mA |
| Analogue input resolution | 0...16000 counts 4...20 mA 0...20000 counts 0...20 mA 0...25000 counts 0...25 mA 0...4095 counts 4...20 mA |
| Absolute maximum input | 25 mA internally limited |
| Input impedance | 100 Ohm +/- 0.1 % |
| Absolute accuracy error | +/- 0.05 % typical of full scale 77 °F (25 °C) +/- 0.1 % of full scale maximum 77 °F (25 °C) |
| Accuracy drift according to temperature | 0.005 % maximum of full scale/°C +/- 0.0025 % typical of full scale/°C |
| Linearity error | 0.003 % of full scale |
| Common mode rejection | > 100 dB 50/60 Hz |
| Update time | 750 ms |
| Isolation between channels and bus | 2500 V for 1 minute DC 1780 V 47...63 Hz AC |
| Fault type | Broken wire 4...20 mA |
| Power dissipation in W | 7.5 W |
| Hot swapping fallback | Not allowed per intrinsic safety standards |
| Protection Type | Internal fuse |
| Marking | CE II1 G/D-EEx ia IIC |
| Bus current requirement | 1500 mA |
| Module format | Standard |
| Product Weight | 0.7 lb(US) (0.3 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Low voltage dc discrete input modules |
| Discrete input number | 32 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Group of channels | 4 |
| Logic input | Positive (sink) |
| Discrete input voltage | 24 V DC |
| Input voltage limits | 20...30 V |
| Voltage state 1 guaranteed | >= 11 V DC |
| Voltage state 0 guaranteed | <= 5 V DC |
| Current state 1 guaranteed | >= 2.5 mA |
| Current state 0 guaranteed | <= 1.2 mA |
| Addressing requirement | 4 input words |
| Absolute maximum input | 45 V during 10 ms decaying pulse |
| Response Time | 2.2 ms from state 0 to state 1 3.3 ms from state 1 to state 0 |
| Isolation between group and bus | 1780 Vrms for 1 minute |
| Isolation between group | 500 Vrms for 1 minute |
| Checks | Broken wire detection |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 32 LEDs (green) for input status |
| Marking | CE |
| Bus current requirement | 250 mA |
| Module format | Standard |
| Product Weight | 0.7 lb(US) (0.3 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | DIO drop interface |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of port | 1 single |
| [Us] rated supply voltage | 115/230 V AC |
| Supply voltage limits | 85â¦276 V |
| Supply frequency | 47...63 Hz |
| Maximum supply current | 0.2 A 115 V 0.4 A 230 V |
| Inrush current | 10 A 115 V 20 A 230 V |
| Rated power in VA | 50 VA |
| Associated fuse rating | 1.5 A |
| Output voltage | 5.1 V |
| nominal output current | 3 A |
| Minimum load current | 0 A |
| Short-circuit protection | With |
| Output overvoltage protection | With |
| I/O words | 30 I/32 O |
| Typical backplanes | 16 positions 6 positions 3 positions 2 positions 4 positions 10 positions |
| Diagnostics startup | RAM address Checksum RAM |
| Diagnostics run time | RAM address RAM Checksum |
| Power dissipation in W | 11 W |
| Connections - Terminals | Terminal block, 7 poles |
| Module format | Standard |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
Complementary
| Characteristic | Value(s) |
|---|---|
| Kit type | Hot Standby kit |
| Kit composition | 1 installation manual 1 fiber optic (3m) hot standby cable 1 loadable software package 1 S908 terminator kit 2 hot standby modules |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | TTL discrete output module |
| Discrete output number | 32 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Group of channels | 4 groups of 8 channels |
| Discrete output type | TTL Positive (sink) |
| Addressing requirement | 2 output words |
| Discrete output voltage | 5 V DC |
| Voltage state 1 guaranteed | <= 0.2 V |
| [Us] rated supply voltage | 4...5.5 V DC |
| Absolute maximum output | 15 V 0.0013 s decaying voltage pulse DC |
| Internal pullup resistor | 440 Ohm |
| Maximum load current | <= 2.4 A per module <= 600 mA each group <= 75 mA each point |
| Surge current | 750 A 0.5 ms between each point |
| Response time | <= 250 µs at state 0 to state 1 resistive <= 250 µs at state 1 to state 0 resistive |
| Protection Type | Output protection by transient voltage suppression Internal by fuse |
| Fault indication | Blown fuse Loss of field power |
| Power dissipation | 4 W |
| Maximum supply current | 0.4 A |
| Isolation between group | 500 Vrms for 1 minute |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 32 LEDs (green) for input status |
| Bus current requirement | 350 mA |
| Current consumption | 2800 mA 5 V DC |
| Module format | Standard |
| Product Weight | 0.99 lb(US) (0.45 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Intrinsically safe discrete input module |
| Software Designation | ProWORX Concept Unity Pro |
| Software Version | V2.2 and above |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product destination | In conjunction with products for zone 20, 21 or 22 |
| Discrete input number | 8 |
| No load voltage | 8 V |
| Short-circuit current | 8 mA |
| Switching hysteresis | 0.2 mA |
| Current state 0 guaranteed | <= 1.2 mA |
| Current state 1 guaranteed | >= 2.1 mA |
| Switching frequency | 100 Hz |
| Response time | 1 ms resistive at state 0 to state 1 1 ms resistive at state 1 to state 0 |
| Internal resistance | 2.5 kOhm |
| Protection Type | Resistor limited Internal by fuse |
| Isolation between channels and bus | 2500 V for 1 minute DC 1780 V 47...63 Hz AC |
| Fault type | Resistor limited |
| Hot swapping fallback | Not allowed per intrinsic safety standards |
| Power dissipation in W | 2 W |
| Marking | CE II1 G/D-EEx ia IIC |
| Bus current requirement | 0.4 A |
| Module format | Standard |
| Product Weight | 0.7 lb(US) (0.3 kg) |

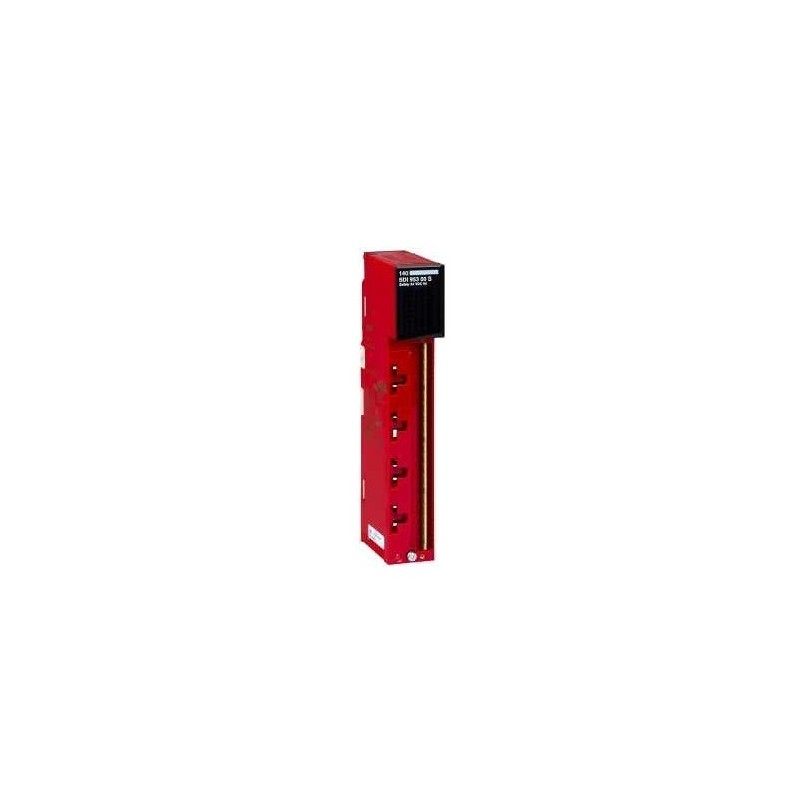

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Safety dc discrete output module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete output number | 16 |
| Group of channels | 1 |
| Discrete output logic | Positive logic (source) |
| Addressing requirement | 4 output words 7 input words |
| Discrete output voltage | 19.2...30 V DC |
| Absolute maximum output | 34 V |
| Maximum voltage drop | <0.3 V 0.5 A |
| Sensor power supply | 19.2â¦30 V |
| Maximum load current | <= 0.65 A each point <= 10.04 A each group |
| Surge current | 2 A 10 ms |
| Response Time | <= 20 ms at state 0 to state 1 <= 20 ms at state 1 to state 0 |
| Maximum leakage current | 0.5 mA 30 V |
| Protection Type | With |
| Load inductance | Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) 0.5 8 Hz |
| Fault indication | Channel fault Overload Power supply fault System fault |
| Associated fuse rating | 10 A |
| Isolation between channels and bus | 1500 Vrms for 1 minute |
| Isolation between group and bus | 1500 Vrms for 1 minute |
| Power dissipation | 1.9 W + 0.65 I² |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) for output status 16 LEDs (green) for system failure, diagnostic of internal channel fault 16 LEDs (red) |
| Bus current requirement | 350 mA |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Relay discrete output module |
| Discrete output number | 8 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Contacts type and composition | 1 NO/NC |
| Contact form | Form C |
| Discrete output voltage | 20...250 V AC 30...150 V DC 5...30 V DC |
| Addressing requirement | 0.5 output word |
| Maximum load current | 100 mA 30...50 V DC L/R = 10 ms 2 A 250/30 V AC/DC tungsten 1/4 hp cos phi = 0.4 3 A 250/30 V AC/DC 300 mA 30...50 V DC resistive 5 A 250/30 V AC/DC resistive 140 °F (60 °C) |
| Surge current | 20 A 10 ms capacitive |
| Switching frequency | 30 Hz resistive F = 0.5/I²L inductive |
| Switching capacity in VA | 1250 VA resistive |
| Maximum response time on input open | 10 ms at state 0 to state 1 20 ms at state 1 to state 0 |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles 100 mA 30...150 V DC L/R = 10 ms 100000 cycles 30...150 V DC interposing relay 100000 cycles 300 mA 30...150 V DC resistive 100000 cycles 5 A 30 V DC resistive 200000 cycles 5 A 250 V AC resistive 50000 cycles 500 mA 30...150 V DC resistive |
| Output overvoltage protection | Internal by varistor, 275 V |
| Isolation between channels | 1780 Vrms AC for 1 minute 2500 V DC |
| Isolation between channels and bus | 1780 Vrms AC for 1 minute 2500 V DC for 1 minute |
| Power dissipation | 2.75 W + (0.5 x the number of points on) |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) for input status 8 LEDs (green) |
| Bus current requirement | 560 mA |
| Module format | Standard |
| Product Weight | 0.7 lb(US) (0.3 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Safety dc discrete input module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete input number | 16 |
| Group of channels | 1 |
| Logic input | Positive (sink) |
| Discrete input voltage | 24 V DC |
| Voltage state 1 guaranteed | 11...30 V DC |
| Voltage state 0 guaranteed | -3...5 V DC |
| Current state 1 guaranteed | >= 3 mA |
| Current state 0 guaranteed | <= 1.5 mA |
| Sensor power supply | 19.2â¦30 V |
| Addressing requirement | 7 input words |
| Input impedance | 3675 Ohm |
| Absolute maximum input | 30 V |
| Response Time | <= 25 ms from state 0 to state 1 <= 25 ms from state 1 to state 0 |
| Protection Type | By internal rectifier |
| Associated fuse rating | 1 A, fast blow |
| Power dissipation | 2.75 W + (0.25 x number of points on) |
| Isolation between group and bus | 1500 Vrms for 1 minute |
| Checks | Diagnostic of internal channel fault System failure Broken wire detection |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) for input status 16 LEDs (green) for system failure, diagnostic of internal channel fault 16 LEDs (red) |
| Marking | CE |
| Bus current requirement | 550 mA |
Main category name:Modules Sub category name:Quantum Vendor:Schneider
