Quantum

80 products

Showing 49 - 72 of 80 products

Showing 49 - 72 of 80 products
View

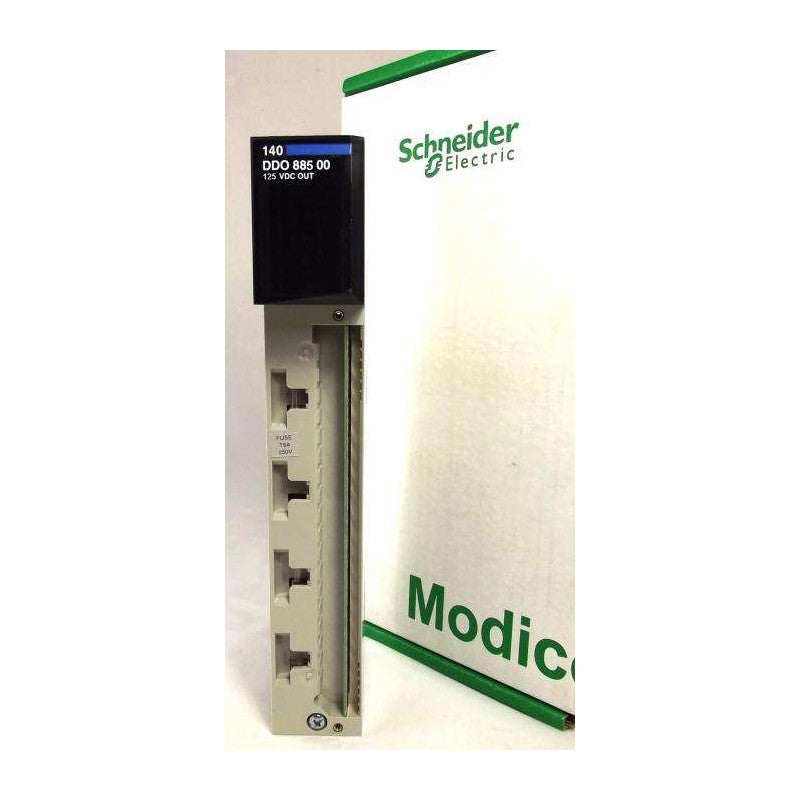

140DDO88500 Schneider
Schneider 140DDO88500 Schneider
$550.80
Only 2 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Dc discrete output module
Discrete output number 12

Complementary

Characteristic Value(s)
Group of channels 2 groups of 6
Discrete output logic Negative logic (sink)
Addressing requirement 1 input word
1 output word
Discrete output voltage 24...125 V DC
Output voltage limits 19.2...156.2 V
Maximum load current <= 3 A 32…140 °F (0…60 °C) each group
<= 6 A 32…140 °F (0…60 °C) per module
<= 0.75 A 32…104 °F (0…40 °C) each point
Surge current 4 A 1 ms
Response Time 1 ms at state 0 to state 1
1 ms at state 1 to state 0
Short-circuit protection With
Output overvoltage protection By varistor per group
Load inductance No limit (protected by diode)
Maximum tungsten load 41 W 115 V
46 W 130 V
8 W 24 V
Switching frequency <= 50 Hz
Fault indication Overcurrent
Isolation between channels and bus 2500 Vrms DC for 1 minute
Isolation between group 1200 Vrms DC for 1 minute
Protection Type Internal output protection by 4 A fuse
Power dissipation 1 W + (0.77 x all points on)
Marking CE
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault detected (F)
for input status 16 LEDs (green)
Bus current requirement 375 mA 6 outputs at state 1
650 mA 12 outputs at state 1
Module format Standard
Product Weight 0.99 lb(US) (0.45 kg)
140DDO36400 Schneider
Schneider 140DDO36400 Schneider
$3,104.70
Only 7 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Dc discrete output module
Discrete output number 96

Complementary

Characteristic Value(s)
Group of channels 6 groups of 16
Discrete output logic Negative logic (sink)
Addressing requirement 6 output words
Discrete output voltage 24 V DC
Output voltage limits 19.2...30 V
Maximum voltage drop <0.4 V 0.5 A
Maximum load current <= 0.5 A each point
<= 19.2 A per module
<= 3.2 A each group
Surge current 2 A
Response Time <= 0.1 ms at state 0 to state 1
<= 0.1 ms at state 1 to state 0
Maximum leakage current 1 mA 24 V
Short-circuit protection With
Output overload protection With
Load inductance Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) 0.5...4 Hz
Fault indication Fault sensing
Fault point
Loss of field power
Fault reporting
Isolation between channels and bus 500 Vrms DC for 1 minute
Power dissipation 7 W
Marking CE
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault detected (F)
for input status 96 LEDs (green)
Bus current requirement 250 mA
Module format Standard
Product Weight 0.99 lb(US) (0.45 kg)

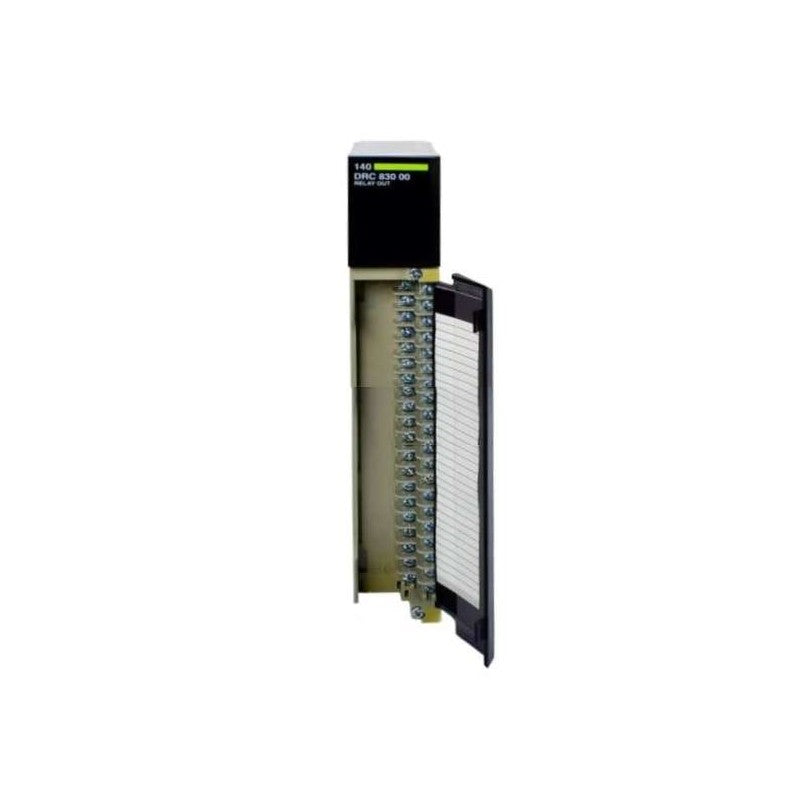

140DRC83000 Schneider
Schneider 140DRC83000 Schneider
$393.46
Only 5 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Relay discrete output module
Discrete output number 8

Complementary

Characteristic Value(s)
Contacts type and composition 1 NO/NC
Contact form Form C
Discrete output voltage 20...250 V AC
30...150 V DC
5...30 V DC
Addressing requirement 0.5 output word
Maximum load current 100 mA 30...50 V DC L/R = 10 ms
2 A 250/30 V AC/DC tungsten 1/4 hp cos phi = 0.4
3 A 250/30 V AC/DC
300 mA 30...50 V DC resistive
5 A 250/30 V AC/DC resistive 140 °F (60 °C)
Surge current 20 A 10 ms capacitive
Switching frequency 30 Hz resistive
F = 0.5/I²L inductive
Switching capacity in VA 1250 VA resistive
Maximum response time on input open 10 ms at state 0 to state 1
20 ms at state 1 to state 0
Mechanical durability 10000000 cycles
Electrical durability 100000 cycles 100 mA 30...150 V DC L/R = 10 ms
100000 cycles 30...150 V DC interposing relay
100000 cycles 300 mA 30...150 V DC resistive
100000 cycles 5 A 30 V DC resistive
200000 cycles 5 A 250 V AC resistive
50000 cycles 500 mA 30...150 V DC resistive
Output overvoltage protection Internal by varistor, 275 V
Isolation between channels 1780 Vrms AC for 1 minute
2500 V DC
Isolation between channels and bus 1780 Vrms AC for 1 minute
2500 V DC for 1 minute
Power dissipation 2.75 W + (0.5 x the number of points on)
Marking CE
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault detected (F)
8 LEDs (green) for input status
Bus current requirement 560 mA
Module format Standard
Product Weight 0.7 lb(US) (0.3 kg)

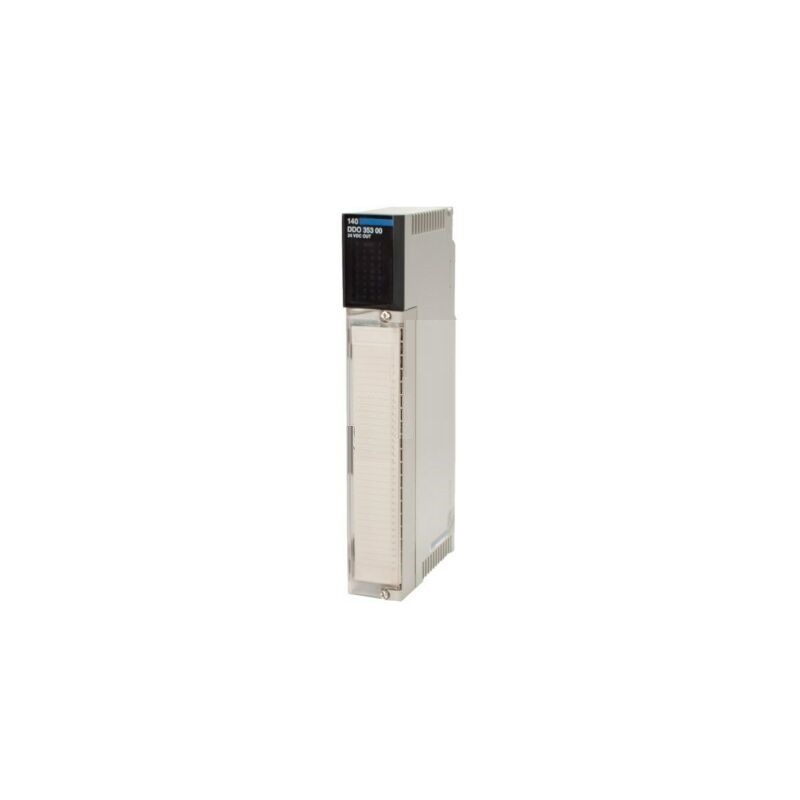

140DDO35300 Schneider
Schneider 140DDO35300 Schneider
$412.60
Only 9 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Dc discrete output module
Discrete output number 32

Complementary

Characteristic Value(s)
Group of channels 4 groups of 8
Discrete output logic Positive logic (source)
Addressing requirement 2 output words
Discrete output voltage 24 V DC
Output voltage limits 19.2...30 V
Absolute maximum output 56 V 1.3 s decaying pulse
Maximum voltage drop <0.4 V 0.5 A
Maximum load current 16 A per module
4 A per group
Surge current 5 A 0.0005 s
Response Time <= 1 ms at state 0 to state 1
<= 1 ms at state 1 to state 0
Maximum leakage current 0.4 mA 30 V
Load inductance Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) 50 Hz
Fault indication Blown fuse
Loss of field power
Associated fuse rating 3 A each point
5 A per group
Isolation between channels and bus 1780 Vrms DC for 1 minute
Isolation between group 500 Vrms DC for 1 minute
Protection Type Internal output protection by 5 A fuse per group
Power dissipation 1.75 W + (0.4 V x total module load current)
Marking CE
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault detected (F)
32 LEDs (green) for input status
Bus current requirement 330 mA
Module format Standard
Product Weight 0.99 lb(US) (0.45 kg)

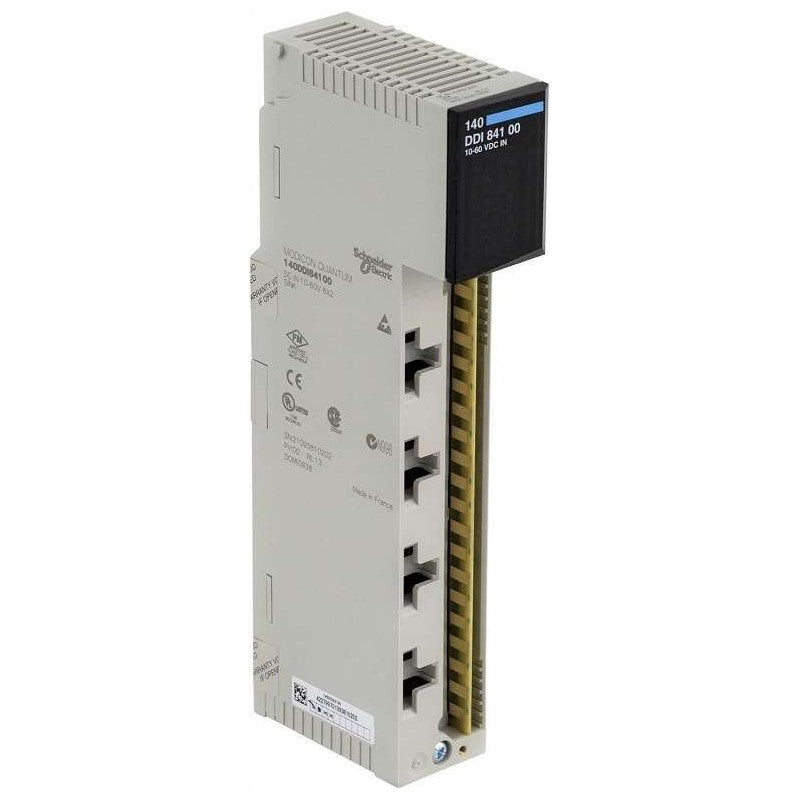

140DDI84100 Schneider
Schneider 140DDI84100 Schneider
$374.48
In stock, 12 units

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Dc discrete input modules
Discrete input number 16

Complementary

Characteristic Value(s)
Group of channels 8
Logic input Positive (sink)
Input voltage limits 10...60 V
Input voltage 12 V 5…10 mA DC
24 V 6…30 mA DC
48 V 2…15 mA DC
60 V 1…5 mA DC
Voltage state 1 guaranteed 11...24 V 24 V +/- 20 %
34...48 V 48 V +/- 20 %
45...60 V 60 V +/- 20 %
9...12 V 12 V +/- 5 %
Voltage state 0 guaranteed 0...1.8 V 12 V +/- 5 %
0...10 V 48 V +/- 20 %
0...5 V 24 V +/- 20 %
0...9 V 60 V +/- 20 %
Absolute maximum voltage 75 V
Addressing requirement 1 input word
Response Time 4 ms from state 0 to state 1
4 ms from state 1 to state 0
Switching frequency <= 100 Hz
Isolation between group and bus 2500 Vrms DC for 1 minute
Isolation between group 700 Vrms DC for 1 minute
Power dissipation 1 W + (0.62 x number of points on)
Marking CE
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault detected (F)
16 LEDs (green) for input status
Bus current requirement 200 mA
Module format Standard
Product Weight 0.7 lb(US) (0.3 kg)
140DDI85300 Schneider
Schneider 140DDI85300 Schneider
$590.38
In stock, 17 units

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Dc discrete input modules
Discrete input number 32

Complementary

Characteristic Value(s)
Group of channels 4
Logic input Positive (sink)
Input voltage limits 10...60 V
Input voltage 12 V 5…10 mA DC
24 V 6…30 mA DC
48 V 2…15 mA DC
60 V 1…5 mA DC
Voltage state 1 guaranteed 9...12 V 12 V +/- 5 %
11...24 V 24 V - 15...20 %
34...48 V 48 V - 15...20 %
45...60 V 60 V - 15...20 %
Voltage state 0 guaranteed 0...1.8 V 12 V +/- 5 %
0...10 V 48 V - 15...20 %
0...12.5 V 60 V - 15...20 %
0...5 V 24 V - 15...20 %
Absolute maximum voltage 75 V
Addressing requirement 2 input words
Response Time 4 ms from state 0 to state 1
4 ms from state 1 to state 0
Switching frequency <= 100 Hz
Isolation between group and bus 2500 Vrms DC for 1 minute
Isolation between group 700 Vrms DC for 1 minute
Power dissipation 1 W + (0.25 x number of points on)
Marking CE
Local signalling 1 LED (green) for bus communication is present (Active)
32 LEDs (green) for input status
Bus current requirement 300 mA
Module format Standard
Product Weight 0.650 lb(US) (0.295 kg)
140DDM39000 Schneider
Schneider 140DDM39000 Schneider
$604.56
In stock, 16 units

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Mixed discrete I/O module
Discrete I/O number 24

Complementary

Characteristic Value(s)
Discrete input number 16 2 groups of 8
Discrete input logic Sink
Addressing requirement 1 input word
0.5 output word
Network frequency limits 47…63 Hz
Discrete input voltage 24 V DC
Input voltage limits 30 V
<= 1 V during one cycle
56 V during 1.3 ms
<= 1 V during 10 s
Voltage state 0 guaranteed -3...5 V
Voltage state 1 guaranteed 15...30 V
Current state 0 guaranteed <= 0.5 mA
Current state 1 guaranteed >= 2 mA
Input impedance 2500 Ohm
Discrete output number 8 2 groups of 4
Discrete output type Solid state
Discrete output logic Sink
Discrete output voltage 24 V
Output voltage limits 19.2...30 V DC typical
56 V DC during 1.3 ms
Maximum load current <= 0.5 A per point
<= 2 A per group
<= 4 A per module
Maximum voltage drop <0.4 V 0.5 A
Absolute maximum output 5 A during 500 µs per point
Maximum load inductance 500 mH 4 Hz
Maximum load capacitance 50 µF
Maximum leakage current 0.4 mA 30 V DC
Response time on output <= 1 ms at state 0 to state 1
<= 1 ms at state 1 to state 0
Protection Type On output by transient voltage suppression
On input by resistor limited
Internal output protection by 5 A fuse per group
Associated fuse rating 5 A per group
Isolation between group 500 Vrms for 1 minute
Isolation between group and bus 1780 Vrms for 1 minute
Fault indication Blown fuse on output
Loss of field power on output
Power dissipation 1.75 W + (0.36 x input point on) + (1.1 total output load current)
Local signalling 1 LED (green) for bus communication is present (Active)
for no voltage in output and input (F) 1 LED (red)
for output is turned on 2 LEDs (green)
for fault detected on the input point 2 LEDs (red)
for fault detected on the output point 2 LEDs (red)
Marking CE
Bus current requirement 330 mA
Product Weight 0.7 lb(US) (0.3 kg)

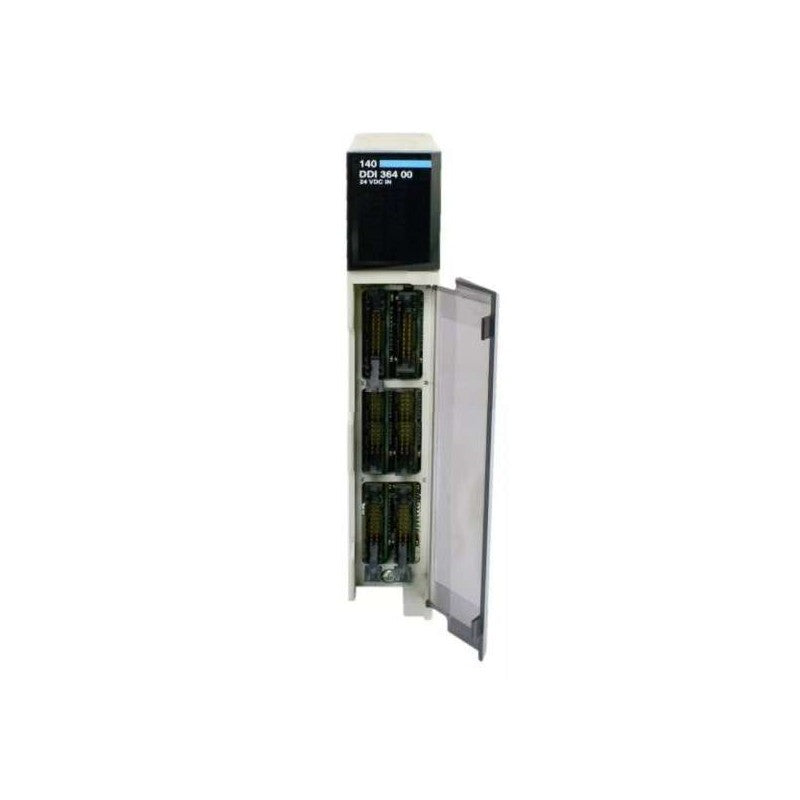

140DDI36400 Schneider
Schneider 140DDI36400 Schneider
$444.14
Only 4 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Low voltage dc discrete input modules
Discrete input number 96

Complementary

Characteristic Value(s)
Group of channels 6
Logic input Positive (sink)
Discrete input voltage 24 V DC
Input voltage limits 19.2...30 V
Voltage state 1 guaranteed 15...30 V DC
Voltage state 0 guaranteed 5 V DC
Current state 1 guaranteed >= 2.5 mA
Current state 0 guaranteed >= 0.7 mA
Addressing requirement 6 words
Input impedance 6700 Ohm
Absolute maximum input 30 V continuous
50 V decaying pulse
Response Time <= 2 ms from state 0 to state 1
<= 3 ms from state 1 to state 0
Power dissipation 1.35 W + (0.13 x number of points on)
Isolation between group 500 Vrms for 1 minute
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault detected (F)
for input status 96 LEDs (green)
Marking CE
Bus current requirement 270 mA
Module format Standard
Product Weight 0.7 lb(US) (0.3 kg)
140DAI74000 Schneider
Schneider 140DAI74000 Schneider
$284.99
Only 4 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type VAC discrete input modules
Software name Concept
ProWORX 32
Unity Pro
Discrete input number 16

Complementary

Characteristic Value(s)
Group of channels 16
Addressing requirement 1 input word
Discrete input voltage 230 V AC
Input current 11.5 mA 57...63 Hz
9.7 mA 47...53 Hz
Voltage state 1 guaranteed 165...264 V AC 57...63 Hz
175...264 V AC 47...53 Hz
Voltage state 0 guaranteed 0...40 V AC 57...63 Hz
0...40 V AC 47...53 Hz
Input impedance 26500 Ohm capacitive 57...63 Hz
31800 Ohm capacitive 47...53 Hz
Network frequency limits 47…63 Hz
Maximum leakage current 2.6 mA
Absolute maximum input 264 V continuous
300 V 10 s
400 V 1 cycle
Response Time 4.9...0.75 ms x line cycle Off-On
7.3...12.3 ms On-Off
Isolation between channels 1780 Vrms for 1 minute
Isolation between channels and bus 1780 Vrms for 1 minute
Bus current requirement 180 mA
Maximum power dissipation in W 5.5 W
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault detected (F)
for input status 16 LEDs (green)
Marking CE
Module format Standard
Product Weight 0.77 lb(US) (0.35 kg)
140DAI54000 Schneider
Schneider 140DAI54000 Schneider
$1,001.94
In stock, 14 units

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type VAC discrete input modules
Software name Concept
ProWORX 32
Unity Pro
Discrete input number 16

Complementary

Characteristic Value(s)
Group of channels 16
Addressing requirement 1 input word
Discrete input voltage 115 V AC
Input current 11.1 mA 57...63 Hz
13.2 mA 47...53 Hz
Voltage state 1 guaranteed 79...132 V AC 57...63 Hz
85...132 V AC 47...53 Hz
Voltage state 0 guaranteed 0...20 V AC 57...63 Hz
0...20 V AC 47...53 Hz
Input impedance 12000 Ohm capacitive 57...63 Hz
14400 Ohm capacitive 47...53 Hz
Network frequency limits 47…63 Hz
Maximum leakage current 2.1 mA
Absolute maximum input 132 V continuous
156 V 10 s
200 V 1 cycle
Response Time 4.9...0.75 ms x line cycle Off-On
7.3...12.3 ms On-Off
Isolation between channels 1780 Vrms for 1 minute
Isolation between channels and bus 1780 Vrms for 1 minute
Bus current requirement 180 mA
Maximum power dissipation in W 5.5 W
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault detected (F)
16 LEDs (green) for input status
Marking CE
Module format Standard
Product Weight 0.68 lb(US) (0.31 kg)
140DAO84210 Schneider
Schneider 140DAO84210 Schneider
$357.75
Only 6 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type AC discrete output modules
Discrete output number 16

Complementary

Characteristic Value(s)
Group of channels 4 groups of 4 channels
Supply frequency 47...63 Hz
Maximum voltage drop 1.5 V
Discrete output voltage 83...253 V AC
Addressing requirement 1 output word
Absolute maximum output 300 Vrms 10 s AC
400 Vrms 1 cycle AC
Maximum load current 2 mA rms 115 Vrms off state leakage per output
2.5 mA rms 230 Vrms off state leakage per output
3 A rms 170...253 V per output
4 A rms 85...132 V per output
16 A rms per module
4 A rms per group
Surge current 10 A during 3 cycles per point
20 A during 2 cycles per point
30 A during 1 cycle per point
25 A during 3 cycles per group
30 A during 2 cycles per group
45 A during 1 cycle per group
DV/dt 400 V/ms
Response Time <= 0.5 ms at state 0 to state 1
<= 0.5 ms at state 1 to state 0
Fault indication Blown fuse
Loss of field power
Protection Type Internal by RC filter
Internal output protection by 5 A fuse
Power dissipation 1.85 + (1.1 V x total module load current)
Marking CE
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault detected (F)
for input status 16 LEDs (green)
Bus current requirement 350 mA
Module format Standard
Product Weight 0.99 lb(US) (0.45 kg)

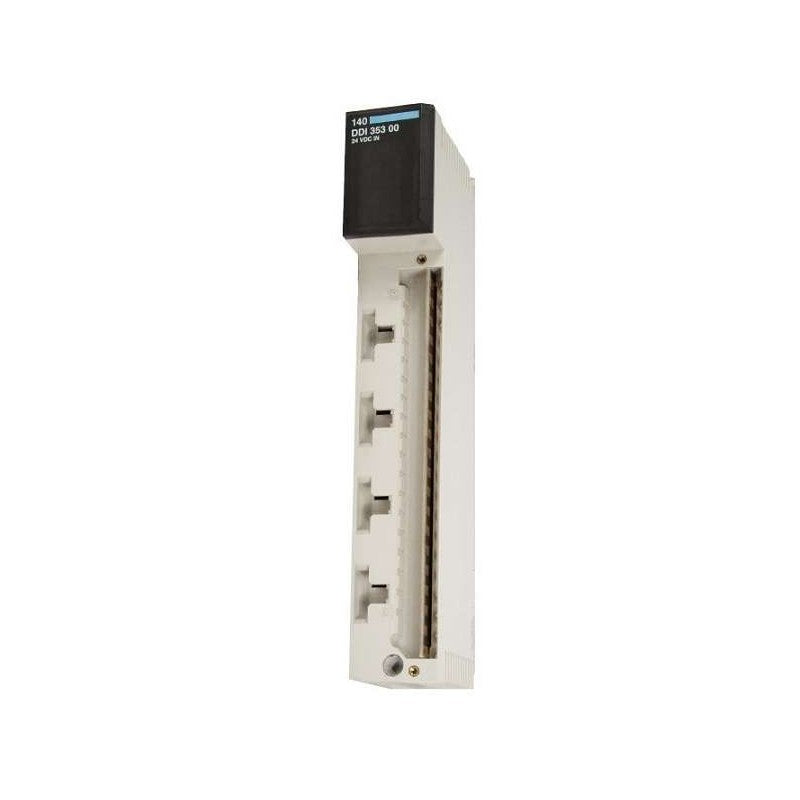

140DDI35300 Schneider
Schneider 140DDI35300 Schneider
$2,650.72
In stock, 13 units

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Low voltage dc discrete input modules
Discrete input number 32

Complementary

Characteristic Value(s)
Group of channels 4
Logic input Positive (sink)
Discrete input voltage 24 V DC
Input voltage limits 19.2...30 V
Voltage state 1 guaranteed 15...30 V DC
Voltage state 0 guaranteed -3...5 V DC
Current state 1 guaranteed >= 2 mA at Us = 5.5 V and Uin = 0 V
Current state 0 guaranteed <= 0.5 mA
Addressing requirement 2 input words
Input impedance 2500 Ohm
Maximum leakage current 200 mA at Us = 5.5 V and Uin = 4 V
Absolute maximum input 30 V continuous
56 V during 1.3 ms decaying pulse
Response Time <= 1 ms from state 0 to state 1
<= 1 ms from state 1 to state 0
Protection Type Input protection by resistor limited
Power dissipation 1.7 W + (0.36 x number of points on)
Isolation between group and bus 1780 Vrms for 1 minute
Isolation between group 500 Vrms for 1 minute
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault detected (F)
32 LEDs (green) for input status
Marking CE
Bus current requirement 330 mA
Module format Standard
Product Weight 0.7 lb(US) (0.3 kg)
140DAO84000 Schneider
Schneider 140DAO84000 Schneider
$388.69
In stock, 13 units

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type AC discrete output modules
Discrete output number 16

Complementary

Characteristic Value(s)
Discrete output type Isolated
Group of channels 16 groups of 1 channel
Supply frequency 47...63 Hz
Maximum voltage drop 1.5 V
Discrete output voltage 20...253 V AC
Addressing requirement 1 output word
Absolute maximum output 300 Vrms 10 s AC
400 Vrms 1 cycle AC
Maximum load current 1 mA rms 24 Vrms off state leakage per output
1 mA rms 48 Vrms off state leakage per output
2 mA rms 115 Vrms off state leakage per output
2.5 mA rms 230 Vrms off state leakage per output
3 A rms 200...230 V per output
4 A rms 24...115 V per output
16 A rms per module
4 A rms sum of four points, continuous
Surge current 10 A during 3 cycles per point
20 A during 2 cycles per point
30 A during 1 cycle per point
DV/dt 400 V/ms
Response Time <= 0.5 ms at state 0 to state 1
<= 0.5 ms at state 1 to state 0
Protection Type Internal by RC filter
Power dissipation 1.85 + (1.1 V x total module load current)
Associated fuse rating 5 A
Marking CE
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault detected (F)
for input status 16 LEDs (green)
Bus current requirement 350 mA
Module format Standard
Product Weight 1.069 lb(US) (0.485 kg)
140DAI75300 Schneider
Schneider 140DAI75300 Schneider
$819.45
Only 5 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type VAC discrete input modules
Software name Concept
Unity Pro
ProWORX 32
Discrete input number 32

Complementary

Characteristic Value(s)
Group of channels 4
Addressing requirement 2 input words
Discrete input voltage 230 V AC
Input current 11.5 mA 57...63 Hz
9.7 mA 47...53 Hz
Voltage state 1 guaranteed 165...264 V AC 57...63 Hz
175...264 V AC 47...53 Hz
Voltage state 0 guaranteed 0...40 V AC 57...63 Hz
0...40 V AC 47...53 Hz
Input impedance 26500 Ohm capacitive 57...63 Hz
31800 Ohm capacitive 47...53 Hz
Network frequency limits 47…63 Hz
Maximum leakage current 2.6 mA
Absolute maximum input 264 V continuous
312 V 10 s
400 V 1 cycle
Response Time 4.9...0.75 ms x line cycle Off-On
7.3...12.3 ms On-Off
Isolation between group 1780 Vrms for 1 minute
Isolation between group and bus 1780 Vrms for 1 minute
Bus current requirement 250 mA
Maximum power dissipation in W 5 W
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault detected (F)
32 LEDs (green) for input status
Marking CE
Module format Standard
Product Weight 0.7 lb(US) (0.3 kg)

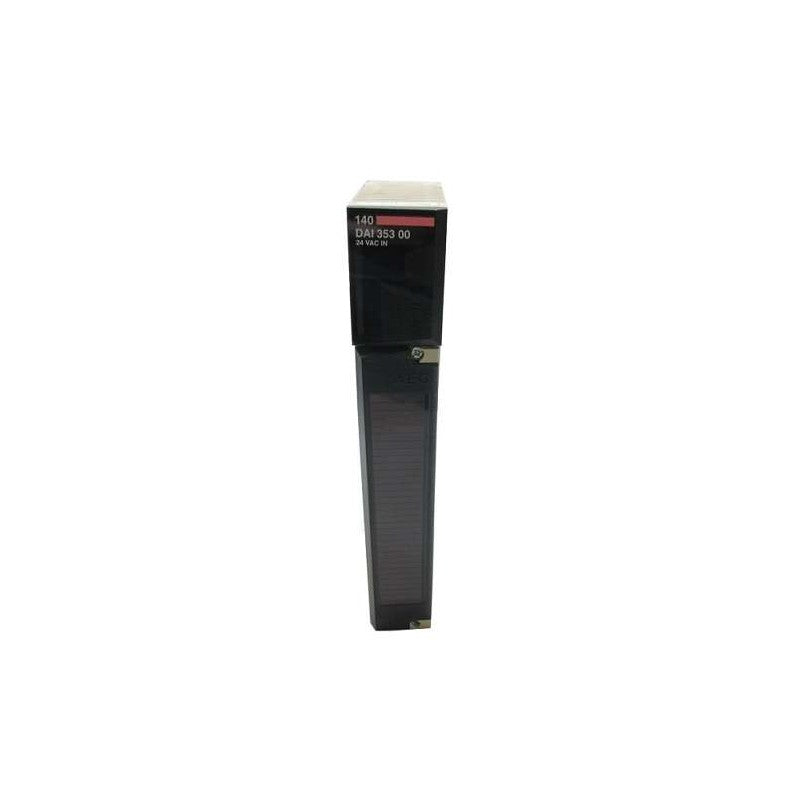

140DAI35300 Schneider
Schneider 140DAI35300 Schneider
$431.99
Only 4 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type VAC discrete input modules
Software name ProWORX 32
Concept
Unity Pro
Discrete input number 32

Complementary

Characteristic Value(s)
Group of channels 4
Addressing requirement 2 input words
Discrete input voltage 24 V AC
Input current 11.1 mA 57...63 Hz
13.2 mA 47...53 Hz
Voltage state 1 guaranteed 12...30 V AC 57...63 Hz
14...30 V AC 47...53 Hz
Voltage state 0 guaranteed 0...5 V 57...63 Hz
0...5 V 47...53 Hz
Input impedance 2600 Ohm capacitive 57...63 Hz
3100 Ohm capacitive 47...53 Hz
Network frequency limits 47…63 Hz
Maximum leakage current 1.9 mA
Absolute maximum input 30 V continuous
32 V 10 s
50 V 1 cycle
Response Time 4.9...0.75 ms x line cycle Off-On
7.3...12.3 ms On-Off
Isolation between group 1780 Vrms for 1 minute
Isolation between group and bus 1780 Vrms for 1 minute
Bus current requirement 250 mA
Maximum power dissipation in W 10.9 W
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault detected (F)
32 LEDs (green) for input status
Marking CE
Module format Standard
Product Weight 0.75 lb(US) (0.34 kg)

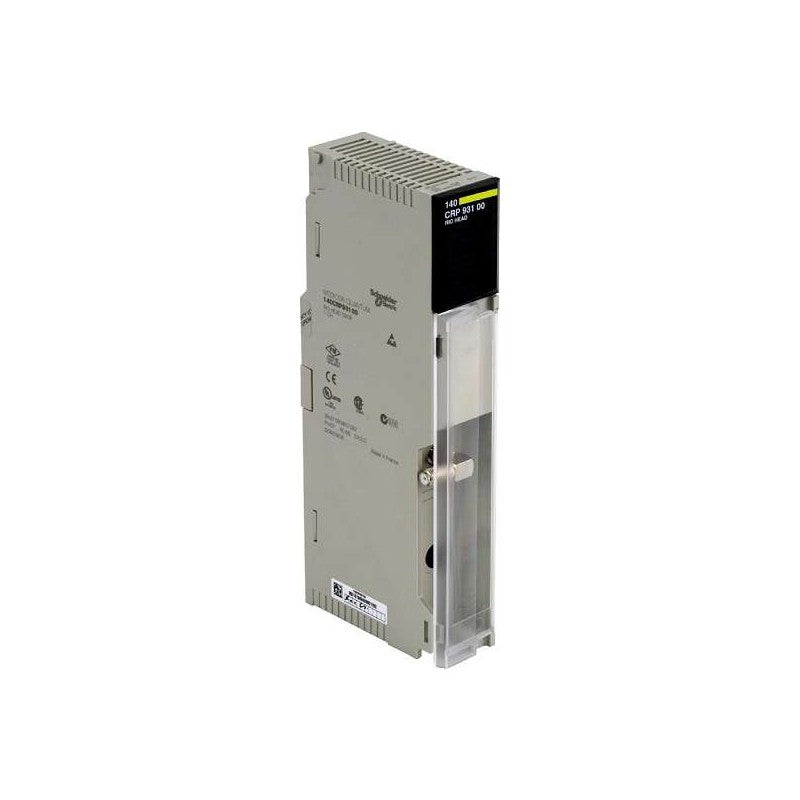

140CRP93100C Schneider
Schneider 140CRP93100C Schneider
$3,799.00
Only 6 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type RIO head-end adaptor module

Complementary

Characteristic Value(s)
Product Compatibility Quantum 200/500/800 series
Symax (any mix)
Maximum drops/network 31
I/O words/drop 64 I/64 O
Type of cable 75 Ohm coaxial
Transmission Rate 1544 Mbit/s
Dynamic range 35 dB
Isolation voltage 500 V DC coaxial center and ground
Electrical connection 1 female connector F, elbowed with single cable
Diagnostics startup LAN controller check
Memory check
Power up
Power dissipation in W 3 W 1 channel
Marking CE
Bus current requirement 600 mA 1 channel
Module format Standard
140CRA93101 Schneider
Schneider 140CRA93101 Schneider
$0.00
Sold Out

Main

Characteristic Value(s)
Device short name CRA
Product or Component Type RIO drop adaptor module
Range of Product Modicon Quantum automation platform

Complementary

Characteristic Value(s)
Electrical connection 1 female connector F, elbowed
Range Compatibility Modicon Quantum
SAT connector 1 female F type

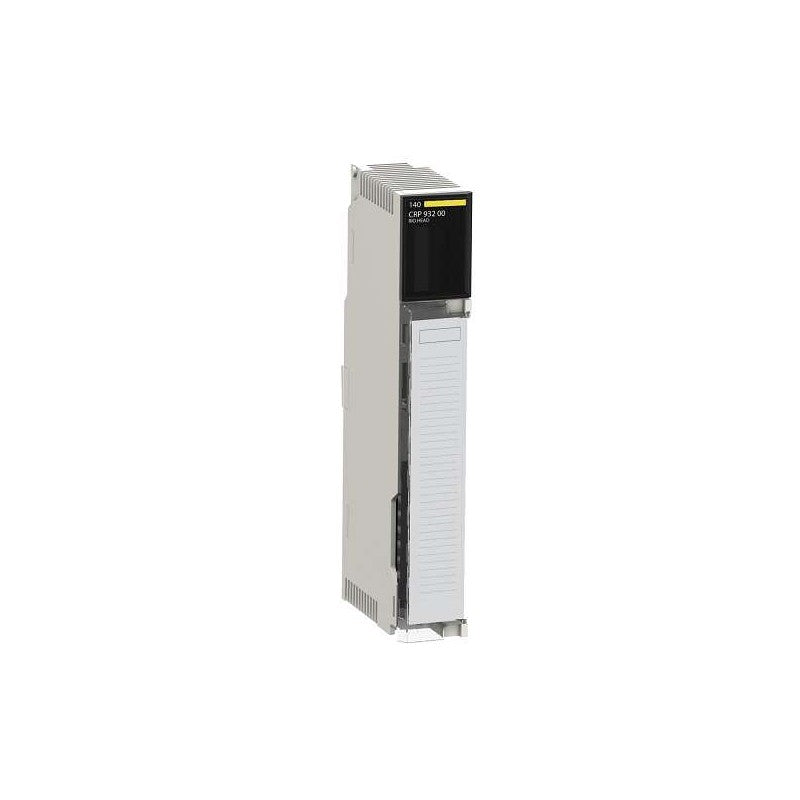

140CRP93200C Schneider
Schneider 140CRP93200C Schneider
$0.00
Sold Out

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type RIO head-end adaptor module

Complementary

Characteristic Value(s)
Product Compatibility Symax (any mix)
Quantum 200/500/800 series
Maximum drops/network 31
I/O words/drop 64 I/64 O
Type of cable 75 Ohm coaxial
Transmission Rate 1544 Mbit/s
Dynamic range 35 dB
Isolation voltage 500 V DC coaxial center and ground
Electrical connection 2 female connectors F, elbowed with redundant cable
Diagnostics startup Power up
LAN controller check
Memory check
Power dissipation in W 3 W 2 channels
Marking CE
Bus current requirement 750 mA 2 channels
Module format Standard

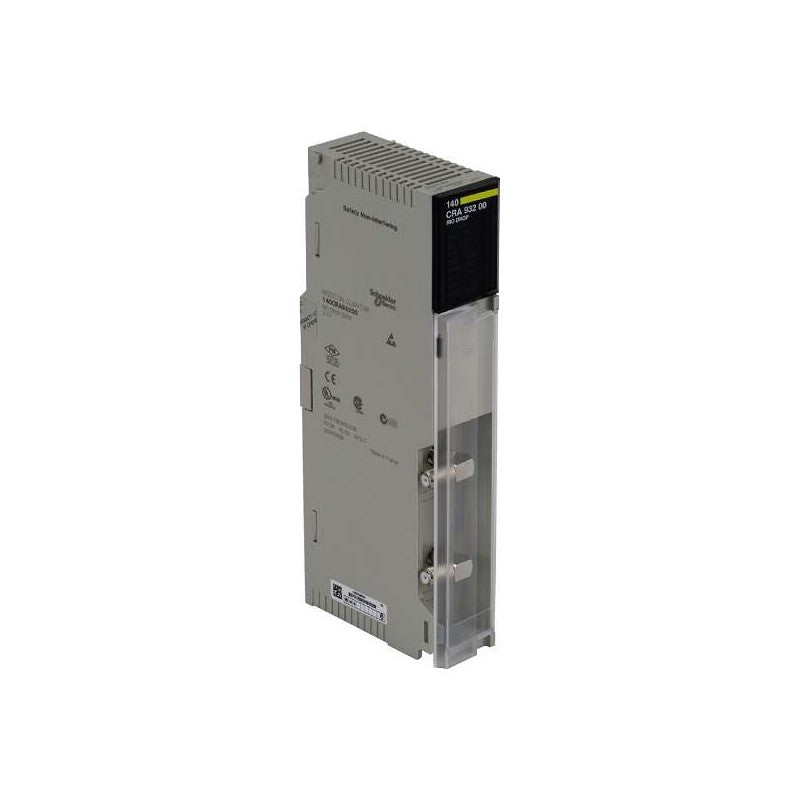

140CRA93200C Schneider
Schneider 140CRA93200C Schneider
$1,927.57
Only 4 units left

RIO drop adaptor module Modicon Quantum - 2 connectors with redundant cable
140ATI03000 Schneider
Schneider 140ATI03000 Schneider
$562.72
In stock, 12 units

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Analogue input module
Type of filter Notch filter - 3 dB at 50/60 Hz
Single pole low pass - 3 dB at 20 Hz

Complementary

Characteristic Value(s)
Analogue input number 8
Addressing requirement 10 input words
Analogue input type Thermocouple - 210...760 °C thermocouple J
Thermocouple - 270...1000 °C thermocouple E
Thermocouple - 270...1370 °C thermocouple K
Thermocouple - 270...400 °C thermocouple T
Thermocouple - 50...1665 °C thermocouple R
Thermocouple - 50...1665 °C thermocouple S
Analogue input resolution 16 bits
Absolute accuracy error +/- 2 °C plus + 0.1 % of reading thermocouple E
+/- 2 °C plus + 0.1 % of reading thermocouple J
+/- 2 °C plus + 0.1 % of reading thermocouple K
+/- 2 °C plus + 0.1 % of reading thermocouple T
+/- 4 °C plus + 0.1 % of reading thermocouple R
+/- 4 °C plus + 0.1 % of reading thermocouple S
Linearity error 1 °C, 0.1 °C, 1 F, 0.1 F - 210...760 °C
1 °C, 0.1 °C, 1 F, 0.1 F - 270...1000 °C
1 °C, 0.1 °C, 1 F, 0.1 F - 270...1370 °C
1 °C, 0.1 °C, 1 F, 0.1 F - 270...400 °C
1 °C, 0.1 °C, 1 F, 0.1 F - 50...1665 °C
Accuracy drift according to temperature 0.15 µV/°C + 0.0015 % of reading/°C max low level voltage
Common mode rejection > - 120 dB 50/60 Hz
Isolation between channels and bus 1780 V AC 60 s
2500 V DC 60 s
Isolation between channels 300 V DC
220 V AC
Update time 1000 ms
Fault type Broken wire
Overtacking scale
Marking CE
Cold junction compensation Internal 32…140 °F (0…60 °C)
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault
for channel is turned on 8 LEDs (green)
for channel fault 8 LEDs (red)
Bus current requirement 280 mA
Power dissipation in W 1.5 W
Module format Standard
Product Weight 0.7 lb(US) (0.3 kg)
140CRA21110 Schneider
Schneider 140CRA21110 Schneider
$951.37
In stock, 13 units

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type DIO drop interface

Complementary

Characteristic Value(s)
Number of port 1 single
[Us] rated supply voltage 115/230 V AC
Supply voltage limits 85…276 V
Supply frequency 47...63 Hz
Maximum supply current 0.2 A 115 V
0.4 A 230 V
Inrush current 10 A 115 V
20 A 230 V
Rated power in VA 50 VA
Associated fuse rating 1.5 A
Output voltage 5.1 V
nominal output current 3 A
Minimum load current 0 A
Short-circuit protection With
Output overvoltage protection With
I/O words 30 I/32 O
Typical backplanes 3 positions
2 positions
6 positions
16 positions
10 positions
4 positions
Diagnostics startup RAM address
RAM
Checksum
Diagnostics run time RAM address
RAM
Checksum
Power dissipation in W 11 W
Connections - Terminals Terminal block, 7 poles
Module format Standard
140DAI34000 Schneider
Schneider 140DAI34000 Schneider
$938.51
Only 2 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type VAC discrete input modules
Software name Concept
ProWORX 32
Unity Pro
Discrete input number 16

Complementary

Characteristic Value(s)
Group of channels 16
Addressing requirement 1 input word
Discrete input voltage 24 V AC
Input current 12 mA 57...63 Hz
10.7 mA 47...53 Hz
Voltage state 1 guaranteed 16...30 V AC 57...63 Hz
18...30 V AC 47...53 Hz
Voltage state 0 guaranteed 0...6 V 57...63 Hz
0...5 V 47...53 Hz
Input impedance 2600 Ohm capacitive 57...63 Hz
3100 Ohm capacitive 47...53 Hz
Network frequency limits 47…63 Hz
Maximum leakage current 1.9 mA
Absolute maximum input 30 V continuous
32 V 10 s
50 V 1 cycle
Response Time 4.9...0.75 ms x line cycle Off-On
7.3...12.3 ms On-Off
Isolation between channels 1780 Vrms for 1 minute
Isolation between channels and bus 1780 Vrms for 1 minute
Bus current requirement 180 mA
Maximum power dissipation in W 5.5 W
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault detected (F)
for input status 16 LEDs (green)
Marking CE
Module format Standard
Product Weight 0.7 lb(US) (0.3 kg)
140CRP93200 Schneider
Schneider 140CRP93200 Schneider
$534.40
In stock, 19 units

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type RIO head-end adaptor module

Complementary

Characteristic Value(s)
Product Compatibility Symax (any mix)
Quantum 200/500/800 series
Maximum drops/network 31
I/O words/drop 64 I/64 O
Type of cable 75 Ohm coaxial
Transmission Rate 1544 Mbit/s
Dynamic range 35 dB
Isolation voltage 500 V DC coaxial center and ground
Electrical connection 2 female connectors F, elbowed with redundant cable
Diagnostics startup Memory check
LAN controller check
Power up
Power dissipation in W 3 W 2 channels
Marking CE
Bus current requirement 750 mA 2 channels
Module format Standard
140DAI44000 Schneider
Schneider 140DAI44000 Schneider
$1,399.61
Only 3 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type VAC discrete input modules
Software name Concept
Unity Pro
ProWORX 32
Discrete input number 16

Complementary

Characteristic Value(s)
Group of channels 16
Addressing requirement 1 input word
Discrete input voltage 48 V AC
Input current 11 mA 57...63 Hz
9.3 mA 47...53 Hz
Voltage state 1 guaranteed 34...56 V AC 57...63 Hz
36...56 V AC 47...53 Hz
Voltage state 0 guaranteed 0...10 V 57...63 Hz
0...10 V 47...53 Hz
Input impedance 5600 Ohm capacitive 57...63 Hz
6800 Ohm capacitive 47...53 Hz
Network frequency limits 47…63 Hz
Maximum leakage current 1.7 mA
Absolute maximum input 100 V 1 cycle
56 V continuous
63 V 10 s
Response Time 4.9...0.75 ms x line cycle Off-On
7.3...12.3 ms On-Off
Isolation between channels 1780 Vrms for 1 minute
Isolation between channels and bus 1780 Vrms for 1 minute
Bus current requirement 180 mA
Maximum power dissipation in W 5.5 W
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault detected (F)
16 LEDs (green) for input status
Marking CE
Module format Standard
Product Weight 0.7 lb(US) (0.3 kg)

Recently viewed
