Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Preventa Safety automation |

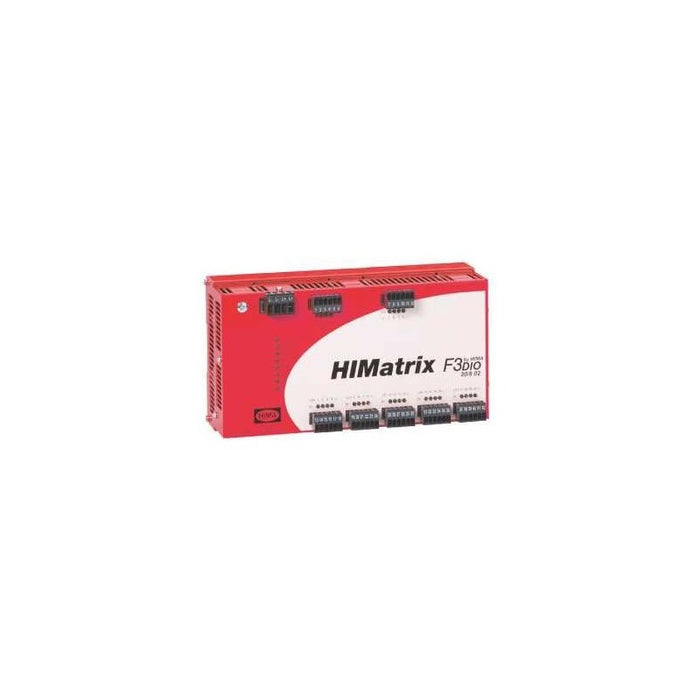

| Product or Component Type | Preventa safety remote mixed I/O module |
| Safety module name | XPSMF3 |
| Safety module application | Extension of I/O capacity |
| Safety use category | Category 4 maximum EN 954-1 Performance level e EN/ISO 13849-1 SIL 3 EN/IEC 61508 |
| Function of module | Monitoring safety actuators discrete input Monitoring safety actuators discrete output Monitoring safety detection discrete input Monitoring safety dialogue discrete input |
| [Us] Rated Supply Voltage | 24 V DC - 15...20 % |
| Supply | SELV or PELV EN/IEC 60950 |
| Discrete input number | 20 not isolated |
| Discrete output number | 8, not isolated |
| Structure type | 10BASE-T/100BASE-TX |
Complementary
| Characteristic | Value(s) |
|---|---|
| Response Time | Depending on size of application |
| Voltage state 0 guaranteed | <= 5 V discrete input |
| Voltage state 1 guaranteed | 15...< 30 V discrete input |
| Current state 0 guaranteed | 1.25...1.5 mA discrete input) |
| Current state 1 guaranteed | <= 2 mA discrete input) |
| Discrete input voltage | 20 V |
| Discrete input current | 100 mA |
| Input protection type | Protected against short-circuit |
| Switching voltage | 7.5 V discrete input |
| Discrete output voltage | 24 V DC |
| Output voltage tolerance | +/- 2% |
| Discrete output current | 1 A 140 °F (60 °C) channels 4 and 8) 2 A 122 °F (50 °C) channels 4 and 8) 0.5 A 140 °F (60 °C) channels 1 to 3 and 5 to 7) <= 7 A all channels) |
| Minimum load | 2 mA per channel |
| Maximum leakage current | 1 mA 2 V at state 0 discrete output |
| Communication port protocol | Safe Ethernet 2 RJ45 100 Mbps, 10 Mbps dual twisted pair cable, category 5D or better |
| Exchange mode | Half duplex, full duplex, autonegotiation |
| Number of terminal blocks | 1 power supply 2 discrete input 2 discrete output |
| Current consumption | 8 A 24 V DC on power supply |
| Mounting Support | 35 mm symmetrical DIN rail |
| Depth | 2.6 in (66.5 mm) |
| Height | 4.3 in (109 mm) |
| Width | 8.1 in (207 mm) |
| Product Weight | 2.2 lb(US) (1 kg) |
