Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Preventa Safety automation |

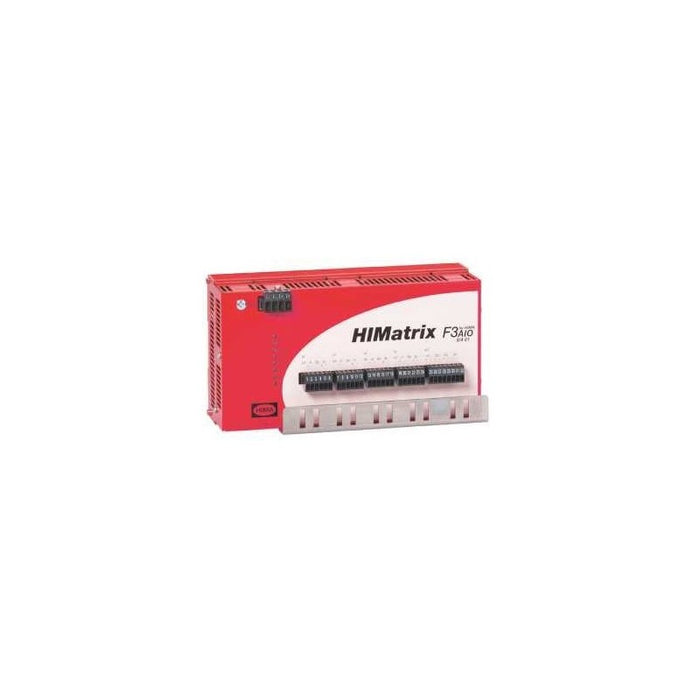

| Product or Component Type | Preventa safety remote mixed I/O module |
| Safety module name | XPSMF3 |
| Safety module application | Extension of I/O capacity |
| Safety use category | Category 4 maximum EN 954-1 Performance level e EN/ISO 13849-1 SIL 3 EN/IEC 61508 |
| Structure type | 10BASE-T/100BASE-TX |
Complementary
| Characteristic | Value(s) |
|---|---|
| Function of module | Single-pole measuring of 0 to 10 V voltages Measuring, using shunt, 0/4 to 20 mA currents Closed circuit scanning of input channels |
| [Us] Rated Supply Voltage | 24 V DC - 15...20 % |
| Supply | SELV or PELV EN/IEC 60950 |
| Response Time | Depending on size of application |
| Analogue input number | 8 |
| Analogue Input Type | Not isolated |
| External resistance | 250 Ohm analogue input circuit 500 Ohm analogue input circuit |
| Analogue input range | 0...20 mA 500 Ohm 0...10 V |
| Input voltage limits | 0.1...11.5 V |
| Input current limits | 0.4â¦23 mA 500 Ohm |
| Analogue input resolution | 12 bits |
| Safety accuracy | +/- 2 % analogue input circuit |
| Maximum internal input resistance | 500 MOhm for signal source 2 Ohm |
| Input overvoltage protection | -4â¦15 V |
| Analogue output number | 4 |
| Analogue Output Type | Not isolated |
| Analogue output range | 4...20 mA |
| Output current limits | 0â¦20 mA |
| Analogue output resolution | 12 bits |
| Load impedance ohmic | <= 600 Ohm analogue output |
| Relative error | +/- 1 % |
| Maximum cable distance between devices | 11.8 in (300 mm) analogue input circuit 11.8 in (300 mm) analogue output |
| Communication port protocol | Safe Ethernet 2 RJ45 100 Mbps, 10 Mbps dual twisted pair cable, category 5D or better |
| Exchange mode | Half duplex, full duplex, autonegotiation |
| Number of terminal blocks | 1 power supply 5 analogue input/output circuit |
| Current consumption | 0.8 A 24 V DC on power supply |
| Mounting Support | 35 mm symmetrical DIN rail |
| Depth | 8.1 in (207 mm) |
| Height | 4.3 in (109 mm) |
| Width | 3.8 in (97.5 mm) |
| Product Weight | 2.09 lb(US) (0.95 kg) |
