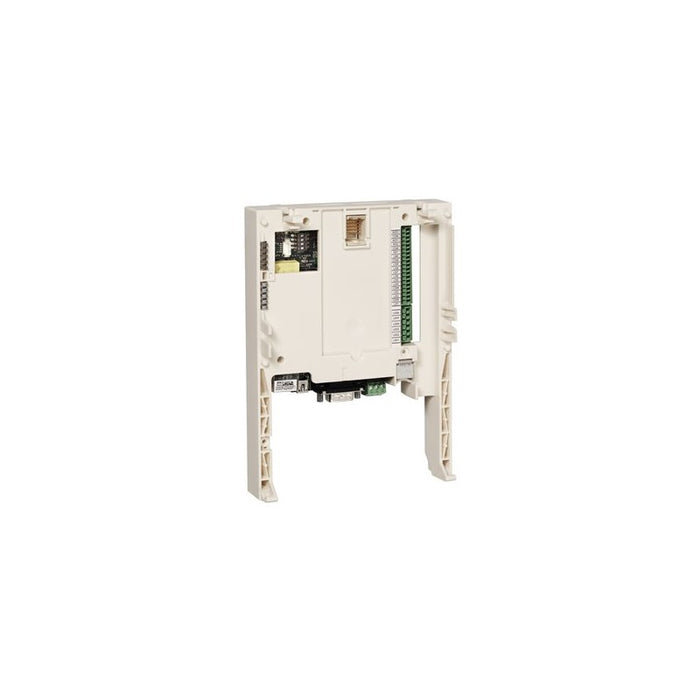

| Characteristic | Value(s) |
|---|---|
| Discrete input number | 6 input 4 fast input |
| Discrete input type | Configurable as single phase counter LI51, LI59 Configurable for incremental encoder LI51, LI52 Configurable for incremental encoder LI59, LI60 |
| Discrete input logic | Sink or source (positive/negative) input Positive logic (sink) fast input |
| Discrete input voltage | 24...30 V |
| Discrete input voltage type | DC |
| Number of common point | 1 analogue output 1 analogue input 3 logic input |
| Voltage state 1 guaranteed | >= 11 V logic input |
| Voltage state 0 guaranteed | <= 5 V logic input |
| Input impedance | 500 Ohm analogue output 4.4 kOhm logic input |
| Network frequency | <= 100 kHz fast input (counter mode) <= 100 kHz fast input (encoder mode) |
| Discrete output number | 6 transistor output |
| Discrete output logic | Positive logic (source) |
| Discrete output voltage | 24...30 V DC transistor output |
| Discrete output current | 2 A transistor output LO51...LO56) |
| Output compatibility | Level 1 PLC transistor output |
| Absolute accuracy error | +/- 1 % for a temperature variation 60 °C analogue input +/- 1 % for a temperature variation 60 °C analogue output |
| Short-circuit protection | With output and fast output |
| Overvoltage protection | With output and fast output |
| Overload protection | With output and fast output |
| Analogue input number | 2 |
| Analogue Input Type | Configurable voltage or current |
| Analogue input range | 0...5 V 0...20 mA |
| Analogue input resolution | 10 bits |
| Analogue output number | 2 |
| Analogue output range | 0...20 mA |
| Analogue output resolution | 12 bits |
| Linearity error | +/- 0.4 % of maximum value analogue input +/- 0.2 % of maximum value analogue output |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19â¦30 V |
| Memory description | Internal RAM 2000 kB Flash 2000 kB Internal data storage (FRAM) 64 ko Program memory 1 Mo |
| Integrated connection type | MDI/MDX port RJ45 Ethernet 10BASE-T/100BASE-TX Programmation port mini B USB 480 Mbit/s CANopen male SUB-D 9 CANopen master |
| CANopen feature profile | DS 301 V4.02 DR 303-1 |
| Level or class | Class M20 - 32 CANopen |
| Communication Service | 320 TPDOs and RPDOs maxi 10 PDOs per slave (transmission/emission) |
| Transmission rate | 1000 kbit/s 65.6 ft (20 m) CANopen 500 kbit/s 328.08 ft (100 m) CANopen 250 kbit/s 820.2 ft (250 m) CANopen 125 kbit/s 1640.4 ft (500 m) CANopen 50 kbit/s 3280.8 ft (1000 m) CANopen 20 kbit/s 8202.10 ft (2500 m) CANopen |
| Local signalling | for ETH (Ethernet activity) 1 LED (green/yellow) 1 LED (green/red) for NS (Network Status) 1 LED (green/red) for MS (Module Status) for CAN (CANopen activity) 1 LED (green/red) for USER (programmable) 1 LED (green/red) |
| Electrical connection | 1 connector with removable screw terminal block - 3 contacts - <= 1 x 1.5 mm² - AWG 16 for connecting the 24 V DC power supply 3 connectors with screw terminal block - <= 1 x 1.5 mm² - AWG 16 for inputs/outputs 1 connector - mini B USB for programming with SoMachine software 1 male connector - SUB-D 9 for connection to the CANopen bus 1 connector - RJ45 for programming with SoMachine software/Ethernet Modbus TCP network |
| Tightening torque | 2.21 lbf.in (0.25 N.m) |
| Associated complete product | ATV71 ATV61 TCSXCNAMUM3P |
| Product Weight | 0.408 lb(US) (0.185 kg) |
