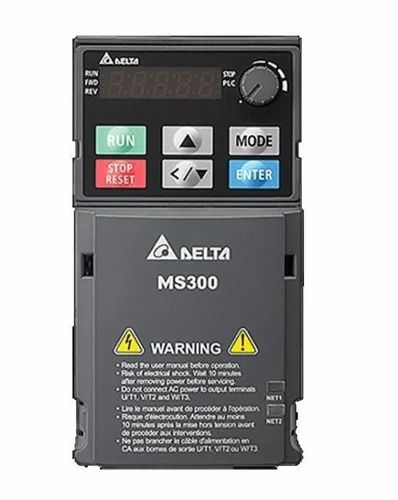

Part Number: Delta VFD5A5MS43ANSAA Nominal Input VAC: 480 Volts AC Input Range VAC: 380 to 480 Volts AC HP: 3 HP Amps (HD): 5.5A Amps (ND): 4.6A Input Phase : 3 PH Operator Controls : Sold Seperately, See Accessories Brake Type : DC Injection; Dynamic Braking Motor Control-Max Level: Open Loop Vector-(Sensorless Vector) Closed Loop: NO AC Line Regenerative: NO Dynamic Braking Trans: Included Enclosure Rating: IP20 Frame Size : C1 Height: 6.18 Inches Width: 3.43 Inches Depth: 5.98 Inches Net Weight: 5 Lbs. Delta’s MS300 series is a standard compact vector control drive that inherits Delta’s superior drive technology. It supports both IM and PM motor control for application flexibility and provides STO safety mechanism. Also built-in various essential functions, including PLC capacity for simple programming needs, a communication slot for various communication cards, and a USB port to make data uploads and downloads fast and easy. Saving space, reducing setup and wiring time, while providing high efficiency and stability system, all included in the MS300 series with drive size reduced up to 40%.
1-YEAR WARRANTY
