Main
| Characteristic | Value(s) |
|---|---|

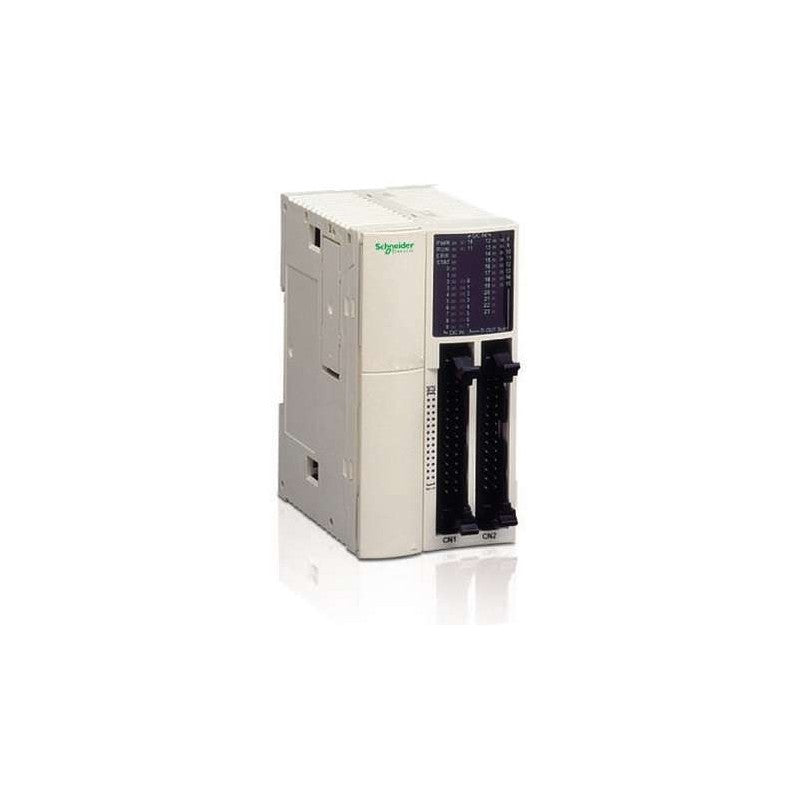

| Range of Product | Twido |
| Product or Component Type | Modular base controller |
| Discrete I/O number | 40 |
| Discrete input number | 24 |
| Discrete input logic | Sink or source |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Discrete output number | 16 transistor source) |
| [Us] rated supply voltage | 24 V DC |
| Maximum Number of I/O Expansion Module | 7 |
| Free slots | 2 |
| Use of slot | 32 K or 64 K memory cartridge and 1 realtime clock |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 20.4...26.4 V |
| Discrete input current | 5 mA I0.0 to I0.1 5 mA I0.6 to I0.7 7 mA I0.2 to I0.5 7 mA I0.8 to I0.23 |
| Input impedance | 4700 Ohm I0.2 to I0.5 4700 Ohm I0.8 to I0.23 5700 Ohm I0.0 to I0.1 5700 Ohm I0.6 to I0.7 |
| Filter time | 150 µs for I0.2 to I0.5 at state 0 150 µs for I0.8 to I0.23 at state 0 35 µs for I0.0 to I0.1 at state 1 35 µs for I0.6 to I0.7 at state 1 40 µs for I0.2 to I0.5 at state 1 40 µs for I0.8 to I0.23 at state 1 45 µs for I0.0 to I0.1 at state 0 45 µs for I0.6 to I0.7 at state 0 |
| Insulation between channel and internal logic | 1500 Vrms for 1 minute |
| Insulation resistance between channel | None |
| Discrete output voltage | 24 V |
| Output voltage limits | 20.4...28.8 V |
| Current per channel | 0.36 A transistor output |
| Maximum current per output common | 1 A transistor output |
| Response Time | 300 µs for Q0.2 to Q0.15 at state 0 300 µs for Q0.2 to Q0.15 at state 1 5 µs for Q0.0 to Q0.1 at state 0 5 µs for Q0.0 to Q0.1 at state 1 |
| [Ures] residual voltage | 1 V at state 1 |
| Maximum leakage current | 0.1 mA |
| Output overvoltage protection | 39 V |
| Maximum tungsten load | 8 W |
| Discrete output current | 300 mA |
| I/O connection | HE-10 connector |
| Maximum input/output number | 152 removable screw terminal block with I/O expansion module 208 spring terminal block with I/O expansion module 264 HE-10 connector with I/O expansion module |
| Supply voltage limits | 20.4â¦26.4 V |
| Protection type | Power protection internal fuse |
| Maximum power consumption in W | 19 W base + 4 expension module |
| Inrush current | 1 A transistor output 50 A power supply |
| Insulation resistance | > 10 MOhm at 500 V, between I/O and earth terminals > 10 MOhm at 500 V, between supply and earth terminals |
| Program memory | 3000 instructions 6000 instructions with 64 K memory cartridge |
| Exact time for 1 Kinstruction | 1 ms |
| System overhead | 0.5 ms |
| Memory description | Internal RAM, 128 counters, no floating, no trigonometrical Internal RAM, 128 timers, no floating, no trigonometrical Internal RAM, 256 internal bits, no floating, no trigonometrical Internal RAM, 3000 internal words, no floating, no trigonometrical Internal RAM, double words, no floating, no trigonometrical Internal RAM, floating, trigonometrical |
| Battery type | Lithium internal RAM 30 days 15 h 10 year(s) |
| Integrated connection type | Power supply Non isolated serial link mini DIN, Modbus/character mode master/slave RTU/ASCII RS485) half duplex, 38.4 kbit/s |
| Counting input number | 2 20000 Hz 32 bits 2 5000 Hz 16 bits |
| Positioning functions | PWM/PLS 2 7 kHz |
| Analogue input number | 1 |
| Analogue input range | 0...10 V |
| Analogue input resolution | 9 bits |
| Input impedance | 100000 Ohm |
| Complementary function | Event processing PID |
| Analogue adjustment points | 1 point adjustable from 0...1023 |
| Status LED | 1 LED ERR 1 LED STAT 1 LED (Green) PWR 1 LED (Green) RUN 1 LED per channel I/O status |
| Product Weight | 0.40 lb(US) (0.18 kg) |
