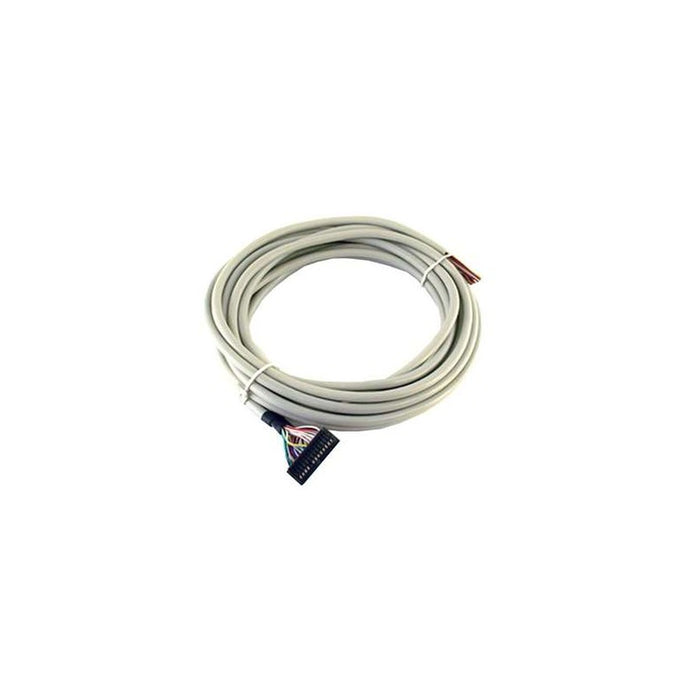

This product is part of the Twido range, an offer of connection accessories for I/O extension. This pre-formed cable is an accessory for I/O extension. The length of this cable is 3m and cross section is 0.035mm². It is furnished with 20-pin HE10 male connector (Twido side) and free end for electrical connection. It weighs 0.405kg. This pre formed cable is compatible with TWDDDO32TK, TWDDDO16UK, TWDDDO32UK discrete output module and TWDDDI32DK, TWDDDO16TK, TWDDDI16DK discrete input module. The Modicon M221 logic controller offers best in class performance. Achieve benchmark performance while increasing profitability with the Modicon M221 logic controller, the most complete controller in the new Modicon range.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Twido |
| Accessory / separate part category | Connection accessories |
| Accessory / Separate Part Type | Connecting cable |
| Accessory / separate part designation | Pre-formed cable |
| Accessory / separate part destination | I/O extension |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | TWDDDI32DK TWDDDO32TK TWDDDO16UK TWDDDO32UK TWDDDO16TK TWDDDI16DK |
| Cable length | 9.8 ft (3 m) |
| Cable cross section | 0.00005 in² (0.035 mm²) |
| AWG Gauge | AWG 22 |
| Electrical connection | 1 female connector HE10 20 Twido side Free end |
| Product Weight | 0.893 lb(US) (0.405 kg) |
