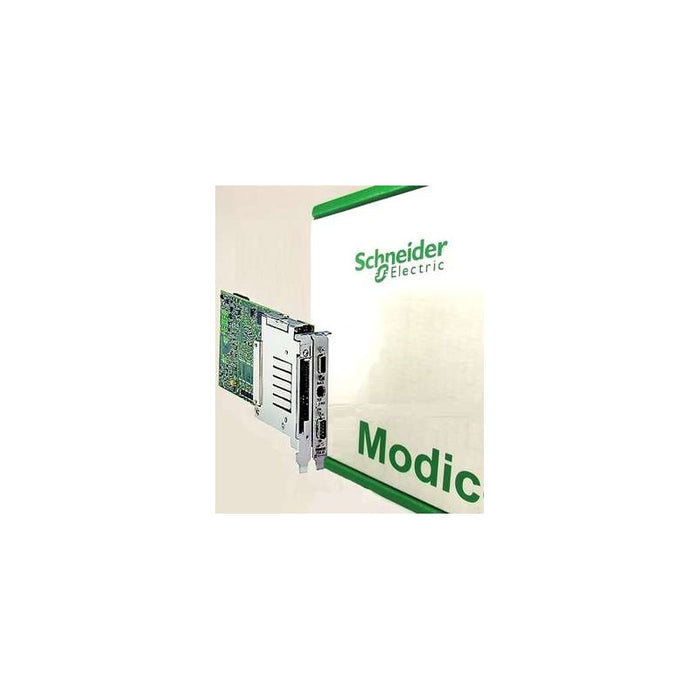

| Characteristic | Value(s) |
|---|---|
| Number of racks | 16 4/6/8 slots 8 12 slots |
| Number of slots | 128 64 96 |
| Discrete I/O processor capacity | 1024 I/O |
| Analogue I/O processor capacity | 128 I/O |
| Number of process control channel | 15 up to 60 simple loops |
| Number of application specific channel | 32 |
| Integrated connection type | 1 serial link (TER/AUX) 2 female mini DIN 19.2/115 kbit/s 1 Ethernet TCP/IP 1 Fipio manager (127 agents) male SUB-D 9 |
| Communication module processor capacity | 1 CANopen bus or Modbus Plus bus 3 Interbus or Profibus DP bus 4 ntwrk (1 Ethernet TCP/IP + 3 Fipway or Modbus Plus or Ethway or Ethernet TCP/IP) 8 AS-Interface bus modules |
| Memory description | Internal RAM 1792 kB - program without PCMCIA card Internal RAM 208 kB - data without PCMCIA card Internal RAM 208 kB - program and data without PCMCIA card PCMCIA card 16384 kB - additional data storage with PCMCIA card |
| Maximum size of object areas | 64 %KWi constant words located internal data 64 %MWi internal words located internal data 8132 %Mi located internal bits Unlimited unlocated internal data |
| Application structure | 1 fast task 64 event tasks 1 master task |
| Execution time per instruction | 1.75...2.6 µs floating points with PCMCIA card 1.75...2.6 µs floating points without PCMCIA card 0.12 µs Boolean without PCMCIA card 0.17 µs Boolean with PCMCIA card 0.17 µs word or fixed-point arithmetic without PCMCIA card 0.32 µs word or fixed-point arithmetic with PCMCIA card |
| Number of instructions per ms | 3.12 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card 4.59 Kinst/ms 100 % Boolean with PCMCIA card 5.11 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card 6.72 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 0.25 ms for fast task 1 ms for master task |
| Local signalling | 1 LED (red) for system fault (ERR) 1 LED for RUN 1 LED for BAT 1 LED for I/O 1 LED for TER 1 LED for activity on Fipio bus (FIP) |
| Product weight | 0.34 kg |
