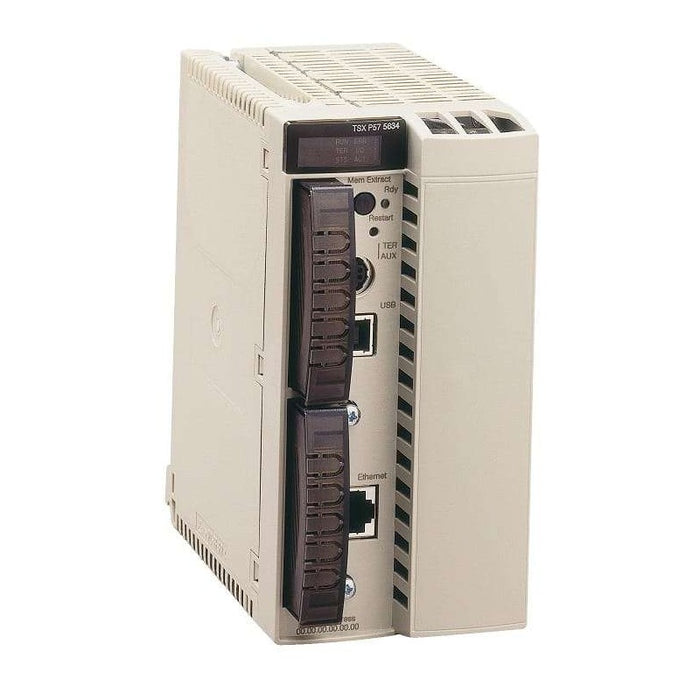

| Characteristic | Value(s) |
|---|---|
| Concept | Transparent Ready |
| Number of racks | 16 4/6/8 slots 8 12 slots |
| Number of slots | 128 96 64 |
| Discrete I/O processor capacity | 2040 I/O |
| Analogue I/O processor capacity | 512 I/O |
| Number of application specific channel | 64 |
| Number of process control channel | 30 up to 90 simple loops |
| Integrated connection type | Non isolated serial link female mini DIN RS485)19.2 kbit/s) Ethernet TCP/IP RJ45 USB port12 Mbit/s) |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Communication module processor capacity | 1 3 8 5 |
| Memory description | Internal RAM (with PCMCIA card) 2048 kB data Internal RAM (with PCMCIA card) 7168 kB program Internal RAM (without PCMCIA card) 2048 kB program and data PCMCIA card 16384 kB additional data storage |
| Maximum size of object areas | 128 %MWi internal words located internal data 32768 %Mi located internal bits 64 %KWi constant words located internal data Unlimited (DFB and EFB function blocks) unlocated internal data Unlimited (elementary and derived data) unlocated internal data |
| Application structure | 1 fast task 32 timers 1 master task 4 auxiliary tasks 128 event tasks |
| Execution time per instruction | 0.0375...0.045 µs Boolean with PCMCIA card 0.0375...0.045 µs Boolean without PCMCIA card 0.045...0.06 µs word or fixed-point arithmetic with PCMCIA card 0.045...0.06 µs word or fixed-point arithmetic without PCMCIA card 0.48...0.56 µs floating points with PCMCIA card 0.48...0.56 µs floating points without PCMCIA card |
| Number of instructions per ms | 14 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card 14 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card 20.26 Kinst/ms 100 % Boolean with PCMCIA card 20.26 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 0.07 ms fast task 1 ms master task |
| Marking | CE |
| Local signalling | 1 LED (green) for Ethernet TCP/IP port ready (RUN) 1 LED (green) for processor running (RUN) 1 LED (red) for collision detection (COL) 1 LED (red) for Ethernet TCP/IP port fault (ERR) 1 LED (red) for I/O module or configuration fault (I/O) 1 LED (red) for processor or system fault (ERR) 1 LED (yellow) for activity on TER or AUX terminal port (TER) 1 LED (yellow) for Ethernet link diagnostics (STS) 1 LED (yellow) for reception activity (RX) 1 LED (yellow) for transmission activity (TX) |
| Current consumption | 1880 mA 5 V DC |
| Module format | Double |
| Product Weight | 1.34 lb(US) (0.61 kg) |
