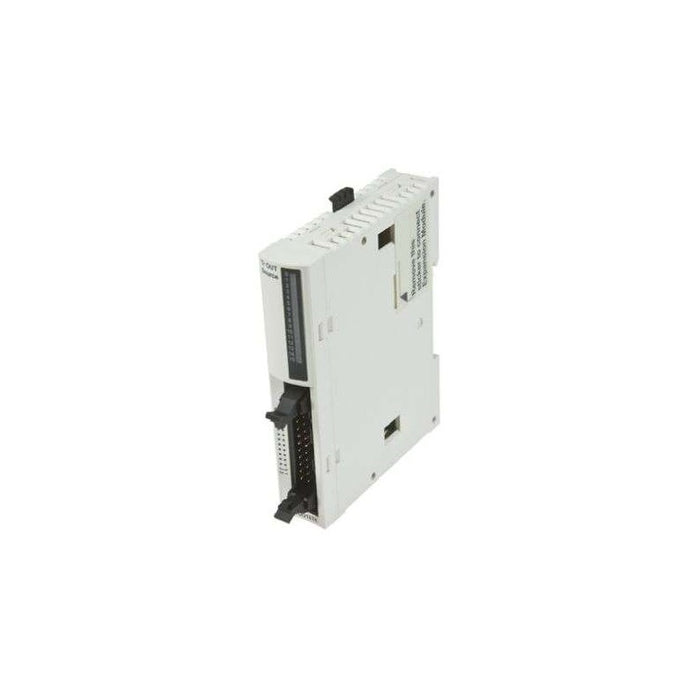

This digital output module is part of the range Modicon TM2 expansion modules. It consists in 16 transistor outputs 24V dc. It is equipped with 1 x HE 10 connector and can be mounted on a symmetrical DIN rail 35 mm. It is compatible with Modicon OTB interface modules, Magelis HMI controller XBTGC and Modicon / Twido controllers .
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon M238 logic controller |
| Product or Component Type | Discrete output module |
| Discrete output number | 16 |
| Discrete output type | Transistor |
| Discrete output voltage | 24 V |
| Discrete output logic | Source |
| Discrete output current | 0.4 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Range Compatibility | Twido Advantys OTB |
| Output voltage limits | 20.4...28.8 V |
| Current per channel | 0.48 A |
| Maximum current per output common | 2 A |
| Number of common point | 1 |
| Response time | 450 µs from state 0 to state 1 450 µs from state 1 to state 0 |
| [Ures] residual voltage | 1 V at state 1 |
| Maximum leakage current | 0.1 mA |
| Maximum inductive load | 10 mH |
| Maximum tungsten load | 9.6 W |
| Short-circuit protection | With automatic reactivaton |
| Overload protection | With automatic reactivaton |
| Isolation between channels | None |
| Isolation between channels and internal logic | 500 V for 1 minute |
| Current consumption | 15 mA 5 V DC at state 1 for all output 20 mA 24 V DC at state 1 for all output |
| Local signalling | 2 display blocks |
| Electrical connection | 1 connector HE10 |
| Mounting Support | 35 mm symmetrical DIN rail |
| Product Weight | 0.15 lb(US) (0.07 kg) |
