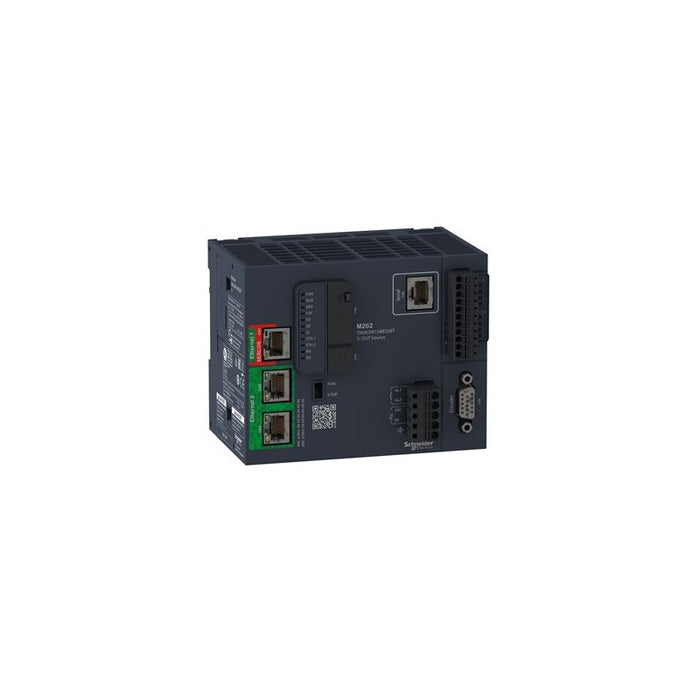

| Characteristic | Value(s) |
|---|---|
| Supply voltage limits | 20.4â¦28.8 V DC |
| PLC Power Consumption | 82 W |
| Inrush current | 40 A |
| Number of overvoltage protection | With |
| Discrete input number | 4, discrete input fast input IEC 61131-2 Type 1 |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Discrete input logic | Sink |
| Voltage state 1 guaranteed | >= 15 V DC |
| Voltage state 0 guaranteed | <= 5 V DC |
| Discrete input current | 7.5 mA fast input |
| Input impedance | 2.81 kOhm input |
| Response time | <= 1 µs turn-on, I0...I3 fast input <= 1 µs turn-off, I0...I3 fast input <= 1 µs turn-on, Q0...Q3 fast output <= 1 µs turn-off, Q0...Q3 fast output |
| Configurable filtering time | 0.001 ms fast input 0.002 ms fast input 0.005 ms fast input 0.01 ms fast input 0.05 ms fast input 0.1 ms fast input 0.5 ms fast input 1 ms fast input 4 ms fast input 12 ms fast input |
| Discrete output number | 4 transistor fast output |
| Discrete output voltage | 24 V DC |
| Discrete output current | 0.5 A fast output Q0...Q3) |
| Discrete output type | Transistor |
| Discrete output logic | Source |
| Output voltage limits | 30 V DC |
| Maximum current per output common | 0.5 A Q0...Q3 fast output |
| Maximum output frequency | 300 kHz |
| Accuracy | +/- 0.1 % 0.02â¦0.1 kHz fast output +/- 1 % 0.1â¦1 kHz fast output |
| Maximum leakage current | 10 µA output |
| Maximum tungsten load | <1.5 W |
| Protection type | Short-circuit and overload protection with automatic reset Reverse polarity protection Short-circuit protection |
| Reset time | 200 ms automatic reset fast output |
| Maximum number of I/O expansion module | 7TM3 IO module (local I/O-Architecture) 7TM3 IO module (remote I/O-Architecture) 64TM3, TM5 or TM7 IO island (distributed I/O-Architecture) |
| Execution time for 1 KInstruction | 0.005 ms |
| Memory capacity | 32 MB program RAM 32 MB OS/website RAM 192 MB system memory RAM |
| Data backed up | 1 GB built-in flash memory backup of user programs |
| Data storage equipment | <= 32 GB SDHC card optional) |
| Backup time | 1000 h 77 °F (25 °C) |
| Application structure | 8 event tasks 4 cyclic master tasks 3 cyclic master tasks + 1 freewheeling task 8 external event tasks |
| Realtime clock | With |
| Clock drift | <= 10 s/month 77 °F (25 °C) |
| Cycle time | 0.5 ms |
| Positioning functions | Libraries axes coordinated Libraries axes synchronous Sercos 3 motion bus |
| Integrated connection type | Ethernet/Sercos 1 RJ45 10/100BASE-T Ethernet 2 2 RJ45 100/1000BASE-T Serial link RJ45 RS232/RS485 1 encoder female SUB-D 15 RS422/SSI Smart Communication Bus TM3 IO bus USB type mini B |
| Transmission rate | 115 kbit/s 49.2 ft (15 m) RS485 115 kbit/s 9.8 ft (3 m) RS232 480 Mbit/s 9.8 ft (3 m) USB 10/100 Mbit/s Ethernet1 10/100/1000 Mbit/s Ethernet2 |
| Communication port protocol | EtherNet/IP adapter EtherNet/IP scanner Modbus TCP client/server Modbus TCP IO scanner Modbus TCP NVL Ethernet RSTP Modbus SL client/server Modbus SL IO scanner Modbus SL modem management Machine Expert ASCII manager ASCII modem management Sercos III master |
| Maximum Number of Connected Devices | EtherNet/IP <64 Modbus TCP <64 Modbus TCP/EtherNet/IP <96 |
| Communication Service | MQTTs OPC UA server (Encrypt) HTTPs Methods (API) Web server Web visu TLS 1.2 TLS 1.3 SNTP NTP client/server FTP client/server FTPs server SQL client (remote access) DHCP client DHCP server DNS client POP3s client SMTP client SNMP client/server |
| Local signalling | for PWR 1 LED (green/red) for RUN 1 LED (green/red) for ERROR (fault) 1 LED (green/red) for stop forced 1 LED (green/red) for I/O error (I/O) 1 LED (green/red) for SD card activity 1 LED (green/orange) for SL activity 1 LED (green/orange) for ETH1 state 1 LED (green/red) for ETH2 state 1 LED (green/red) for EIP MS 1 LED (green/red) for EIP NS 1 LED (green/red) for Sercos 1 LED (green/red) |
| Electrical connection | removable spring terminal block for inputs and outputs removable spring terminal block for connecting the 24 V DC power supply |
| Product compatibility | External encoder 5/24 V DC no encoder power supply |
| Maximum cable distance between devices | Shielded cable <9.8 ft (3 m) fast input Shielded cable <9.8 ft (3 m) fast output Unshielded cable <164.04 ft (50 m) input Unshielded cable <164.04 ft (50 m) output Shielded cable <98.4 ft (30 m) RS485 link Shielded cable <49.2 ft (15 m) RS232 |
| Insulation | Between fast input and internal logic 550 V AC Non-insulated between inputs Between fast output and internal logic 550 V AC Non-insulated between outputs Between input and output 550 V AC Between supply and internal logic 550 V AC Non-insulated between supply and ground |
| Encoder type | Incremental encoder |
| Surge withstand | 1 kV power lines (DC) common mode IEC 61000-4-5 1 kV shielded cable common mode IEC 61000-4-5 0.5 kV relay output differential mode IEC 61000-4-5 1 kV input common mode IEC 61000-4-5 1 kV transistor output common mode IEC 61000-4-5 |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Height | 3.9 in (100 mm) |
| Depth | 3.5 in (90 mm) |
| Width | 4.9 in (125 mm) |
| Product Weight | 1.48 lb(US) (0.67 kg) |
