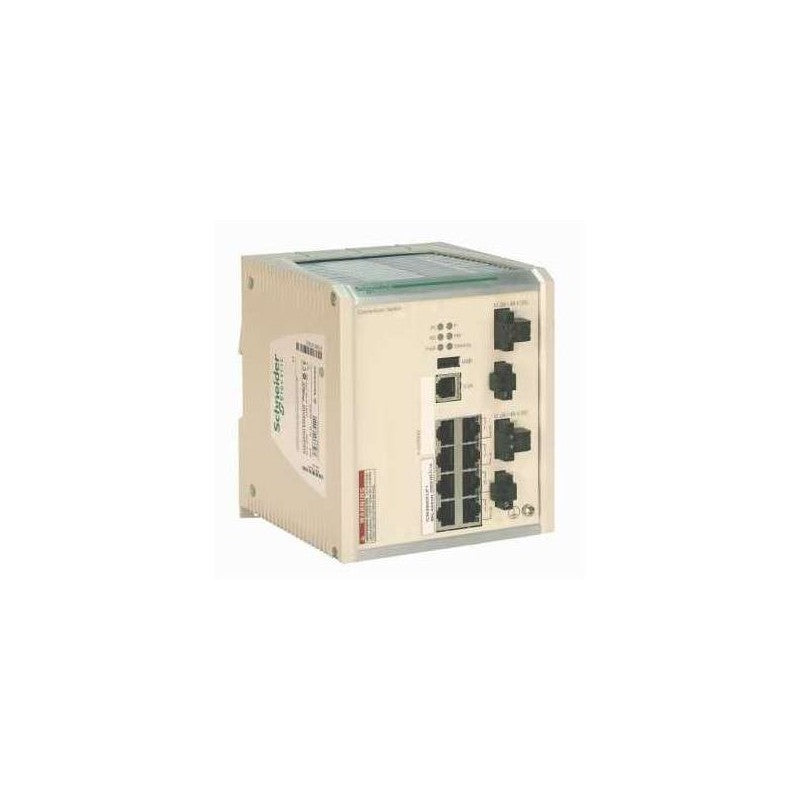

This product is part of the ConneXium range, an offer of Ethernet connecting devices. This TCP/IP extended managed switch has eight 10BASE-T/100BASE-TX ports for copper cable. It is a network switch with a supply voltage of 12V to 48V, a power consumption of 10W and maximum number of switches in a ring is 50. This product offers you a smart and flexible way to integrate Ethernet solutions into your operation. It is furnished with two 2-way removable connectors (power supply) for electrical connection. The supported transmission medium is twisted shielded pair category 5E copper cable. Ethernet services are secure port, priority port, multicast filtering, data stream control, configuration via web server, VLAN, SNTP client, SMTP V3, Rapid Scanning Tree Protocol (RSTP), IGMP snooping and FDR. It is an IP30 rated product. Its dimensions are 120mm (width) x 115mm (depth) x 137mm (height) and weighs 1kg. This product is certified by CE, LR, BR, GL and C-Tick. It meets UL 508, EN/IEC 61131-2, CSA C22.2 No 214, UL 1604 Class 1 Division 2, CSA C22.2 No 213 Class I Division 2 and IEC 61850-3 standards. It supports 35mm symmetrical DIN rail mount.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | ConneXium |
| Product or Component Type | Ethernet TCP/IP managed switch |
| Concept | Transparent Ready |
| Communication Port Protocol | Ethernet TCP/IP SSH HTTP HTTPS SNMP RS232 LLDP Telnet SNTP MRP (Media Redundancy Protocol) |
| Port Ethernet | 10/100BASE-TX - 8 copper cable |
| Maximum number of switches in cascade | Unlimited |
| Cybersecurity | Port hardening |
Complementary
| Characteristic | Value(s) |
|---|---|
| Integrated connection type | Shielded RJ45 copper cable |
| Transmission support medium | Twisted shielded pairs cable CAT 5E copper cable |
| Maximum cable distance between devices | 328.08 ft (100 m) copper cable |
| Ethernet service | Configuration via web server VLAN Multicast filtering Data stream control IGMP Snooping SNMP-Traps and SYSLOG |
| Communication Service | TFTP Quality of Service (QoS) Port monitoring Port mirroring Address conflict detection |
| Diagnostics run time | Signal contact Self test |
| Maximum number of switches in a ring | 50 |
| Redundancy | HiPER ring RSTP Redundant network coupling |
| [Us] rated supply voltage | 24...48 V |
| Supply voltage limits | 18â¦60 V DC SELV |
| Power Consumption in W | 10 W |
| Electrical connection | 2 removable connectors 2 ways power supply |
| Mounting Support | 35 mm symmetrical DIN rail |
| Marking | CE UL RCM ATEX |
| Function Available | Alarms (Traps) System information Report Trap log |
| Local signalling | 1 dual colour LED (green/yellow) for P1 P2 power supplies 1 LED (red) for fault 1 dual colour LED (green/yellow) for ring manager 1 LED (red) for stand-by 1 LED (yellow) for signal contact 1 1 LED (yellow) for signal contact 2 1 LED per channel (green/yellow) for channel diagnostic Device status |
| Alarm output | 2 voltfree contact 2 A |
| Alarm function | Power supply fault Data link status Temperature threshold External memory removed |
| Ethernet cabling system | TF switches |
| Width | 4.7 in (120 mm) |
| Height | 5.4 in (137 mm) |
| Depth | 4.5 in (115 mm) |
| Product Weight | 2.2 lb(US) (1 kg) |
