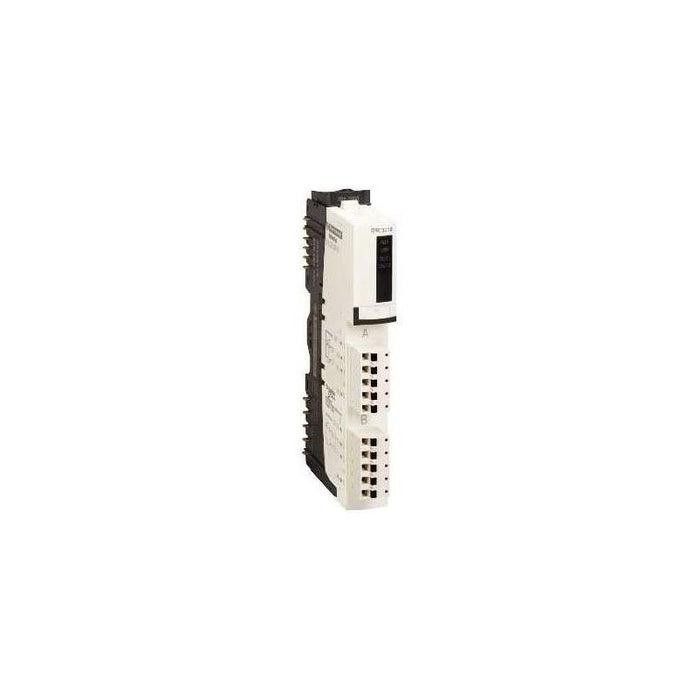

This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard discrete output kit has 2 discrete outputs, 2 normally open/normally contacts with solid state relay. It is a discrete output kit with a rated supply voltage of 24V DC and a current consumption of 55mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 18.4mm (height) and weighs 0.13kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with I/O base STBXBA2000 and power distribution module STBPDT3100/3105. The kit includes STBXTS2110, 5-terminal spring clamp connector, STBXTS1100, 5-terminal screw type connector, STBXBA3000 base and STBDRC3210 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon STB distributed I/O solution |
| Product or Component Type | Standard digital output kit |
| Kit composition | STBXTS2110, 5-terminal spring clamp connector STBXTS1100, 5-terminal screw type connector STBXBA3000 base STBDRC3210 module |
| Discrete output number | 2 |
| Discrete output type | Relay |
| Discrete output function | 2 NO/NC |
| Discrete output voltage | 24 V 115...230 V |
| Discrete output voltage type | AC DC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete output current | 2000 mA |
| Discrete output logic | Positive or negative |
| Output voltage | 20...250 V AC 5...30 V DC |
| Response Time | 5.25 ms off-to-on 6.75 ms on-to-off |
| Switching capacity in VA | 600 VA resistive |
| Mechanical durability | 1000000 cycles |
| Electrical durability | 100000 cycles resistive |
| Cold swapping | Yes |
| hot swapping | Yes for standard NIMs |
| fallback | State 0 basic NIMs User configurable standard NIMs |
| Protection type | Coil protection integrated fuse on PDM time lag 10 A Output surge protection GMOV |
| Insulation between channels | 500 V for 1 minute |
| Insulation between channels and logic bus | 1780 V for 1 minute |
| Insulation between logic bus and actuator bus | 1500 V for 1 minute |
| Surge current | 20 A 10 ms capacitive |
| Minimum load | 50 mA |
| Reset | Manual reset COM fault |
| Product Compatibility | I/O base STBXBA2000 Power distribution module STBPDT3100/3105 |
| [Us] rated supply voltage | 24 V DC |
| Supply | Power distribution module |
| Current consumption | 55 mA 5 V DC logic bus |
| Marking | CE |
| Overvoltage category | II |
| Status LED | 1 LED (Green) module status (RDY) 1 LED per channel (Green) channel status (OUT1 to OUT2) 1 LED (Red) module error (ERR) |
| Height | 0.7 in (18.4 mm) |
| Depth | 2.8 in (70 mm) |
| Width | 5.05 in (128.3 mm) |
| Product Weight | 0.29 lb(US) (0.13 kg) |
