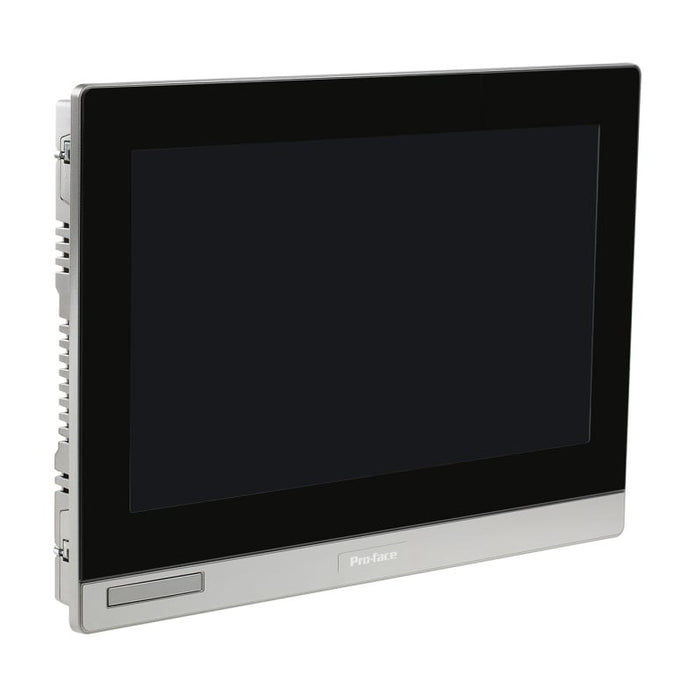

The PFXSP5700WCD is a premium 15.6-inch widescreen HMI display module from Pro-face's modular SP5000 Smart Portal series. It features a high-resolution TFT color LCD with 1366x768 pixels FWXGA resolution, capable of displaying 16 million colors. The display incorporates a 5-point multi-touch projected capacitive touchscreen with 2048x2048 resolution, rated for over 50 million touches. Key features include auto-scaling functionality, ambient brightness sensor, glass top design with durable aluminum bezel, white LED backlight with adjustable brightness, front USB connectivity, and touch cancellation. Designed for flush mounting in industrial control panels, the unit is built to IP65/IP66/IP67 protection standards and meets NEMA 4X ratings. The modular architecture allows pairing with various Pro-face box modules for flexible configuration and future upgrades in industrial automation, manufacturing, and process control applications.
Item Details
- Brand Name: Pro-face
- Manufacturer: Pro-face (Schneider Electric)
- Item Type Name: HMI Display Module
- Product Family / Series: SP5000 Series
- Model Designation: SP-5700WC
- Product Category: Premium Display Module
Product Specifications
- display_type: TFT Color LCD
- display_size: 15.6 inch wide
- resolution: 1366 x 768 pixels (FWXGA)
- display_colors: 16 million colors
- effective_display_area: 344.2 x 193.5 mm
- touch_panel_type: Projected Capacitive (5 simultaneous touch)
- touch_panel_resolution: 2048 x 2048
- touch_panel_lifetime: 50,000,000 operations or more
- backlight_type: White LED (not user replaceable)
- backlight_service_life: 50,000 hours or more
- brightness_control: 0 to 100 (adjustable)
- brightness_sensor: Equipped
- auto_scaling: Equipped
- supply_voltage: 12 to 24 V DC (nominal), 10.8 to 28.8 V DC (range)
- power_consumption_maximum: 17 W
- power_consumption_typical: 14 W or less (no external devices)
- usb_interfaces: 2 (Type A + Mini-B)
- operating_temperature: 0 to 55 °C
- storage_temperature: -20 to 60 °C
- mounting_type: Flush mounting
- ip_rating: IP65, IP66, IP67
- nema_rating: NEMA 4X (Indoor Use Only)
- cooling_method: Natural air circulation
- vibration_resistance: IEC/EN 61131-2 compliant
- degree_of_pollution: 2
Additional Details
- Lifecycle Status: Commercialized
- Certifications / Approvals: IEC 61131-2, IEC 61000-4-2
- Structure: IP65F/IP67F with factory USB cover
Measurements
- Weight: 6.274 kg
- Dimensions: 414 x 69 x 295 mm (W x H x D)
