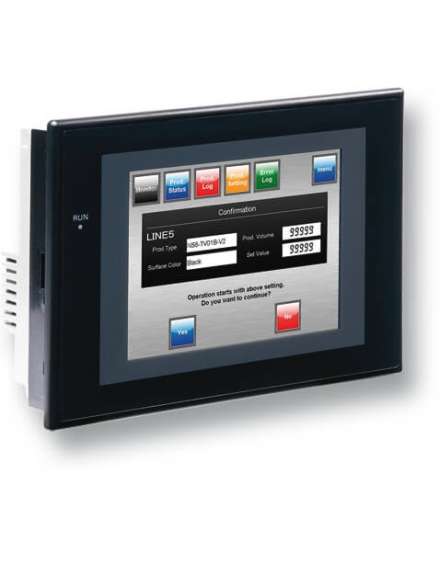

The NS5-SQ10B-V2 is a programmable terminal from Omron's NS5 Series, designed to provide a graphical touch screen interface for industrial automation systems and machines. It features a 5.7-inch TFT color LCD touchscreen with 320x240 pixel resolution and LED backlight. The device connects to Omron PLCs via RS-232C serial communication at speeds up to 115 Kbps, delivering high-speed response to system events and user input. With 60 MB of image memory, two RS-232 serial ports, and a black case design, this compact HMI is suitable for machine control, process monitoring, and operator interface applications in manufacturing environments. The unit operates on 24 VDC power supply and is built to industrial standards including UC1, CE, N, L, and UL Type 4 certifications.
Item Details
- Brand Name: Omron
- Manufacturer: Omron Automation and Safety
- Item Type Name: Human Machine Interface (HMI) Touchscreen
- Product Family / Series: NS5 Series
- Model Number: NS5-SQ10B-V2
- Case Color: Black
Product Specifications
- display_size: 5.7 inch
- display_type: TFT LCD Color
- backlight_type: LED
- resolution: 320 x 240 pixels
- display_area: 88.4 mm x 117.7 mm
- touchscreen: Yes
- memory: 60 MB
- communication_ports: 2 x RS-232
- communication_speed: Up to 115 Kbps
- supply_voltage_nominal: 24 V DC
- supply_voltage_min: 20.4 V DC
- supply_voltage_max: 27.6 V DC
- operating_temperature_min: 0 °C
- operating_temperature_max: 50 °C
- ethernet: No
Additional Details
- Lifecycle Status: Obsolete
- Certifications / Approvals: UC1, CE, N, L, UL Type 4
Measurements
- Weight: 1.0 kg
