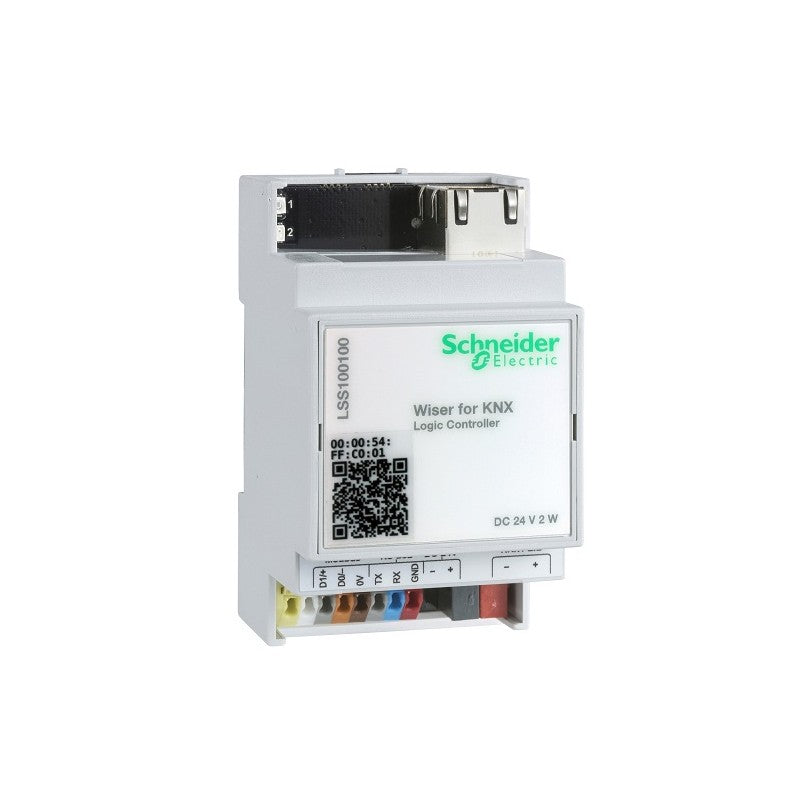

Wiser for KNX. Wiser for KNX (formerly know as homeLYnk) is the easiest way to visualise and control a complete Home Automation Solution in a KNX and Modbus networks. Wiser for KNX can be used in several ways: As an user interface to display and control relevant informations on mobile devices. As a gateway to translate and enable communication between different products. As an aggregator to stock, analyze, and send the data (.csv file for example). As an event controler that sends email in case of issues. Applications: Logical functions. WEB SCADA visualization for PC and touch-devices. Cross-standard gateway between KNX and Modbus RTU/TCP. BACnet Server (150 points). Integration with third party devices over RS-232 (IR, AV). Scheduling. Camera streaming. Data logger with trends. Pre-made Modbus templates. Easy bloc programming. Up to 8 users with different login and password. BACnet certified BACnet Application Specific Controller (B-ASC). New icons. Supply voltage: 24 V DC. Power consumption: 2 W. LED indicator 1: Green LED (CPU load). LED indicator 2: Green LED (Operation) or Red LED (Reset). Interface: 1x KNX, 1x10BaseT/100BaseTX, 1x RS-485 (incl. Polarization resistors 47 k Ohm, no termination). 1x RS-232, 1x USB2.0, 1x Reset push button. Terminal: KNX bus: Bus connecting terminal 2 x 0.8 mm. Power supply: Clamp, 0.5 mm²-1.5 mm². Serial: Clamp, 0.5 mm²-1.5 mm². Operation: -5°C to +45°C. Environment: Can be used at elevations up to 2000 m above sea level (MSL). Max. humidity: 93 %, no condensation. Dimension: 90 x 52 x 58 mm (HxWxD). Device width: 3 modules, approx. 54 mm. Visualisations can be generated automatically for smartphone, tablet and touch panels using the EConfigure KNX Lite (LSS900100) software.
Main
| Characteristic | Value(s) |
|---|---|
| product name | Wiser for KNX |
| Product or component type | Logic controller |
Complementary
| Characteristic | Value(s) |
|---|---|
| Communication port protocol | BACnet KNX IP (Internet Protocol) Modbus |
| [Us] rated supply voltage | 24 V DC |
| Power consumption in W | 2 W |
| LED indicator | LED (green) for CPU load LED (green/red) for KNX powered/reset |
| Physical interface | 1 x RJ45 1 x RS485 1 x RS232 1 x TP-UART2 |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Integrated connection type | 1 USB 2.0 port |
| control type | RESET push-button |
| Connections - terminals | KNX bus: bus terminal 2 cable(s) 0.8 mm² Power supply: clamp terminal1.5 mm² Serial: clamp terminal1.5 mm² |
| Mounting support | DIN rail |
| Height | 90 mm |
| Width | 52 mm |
| Depth | 58 mm |
