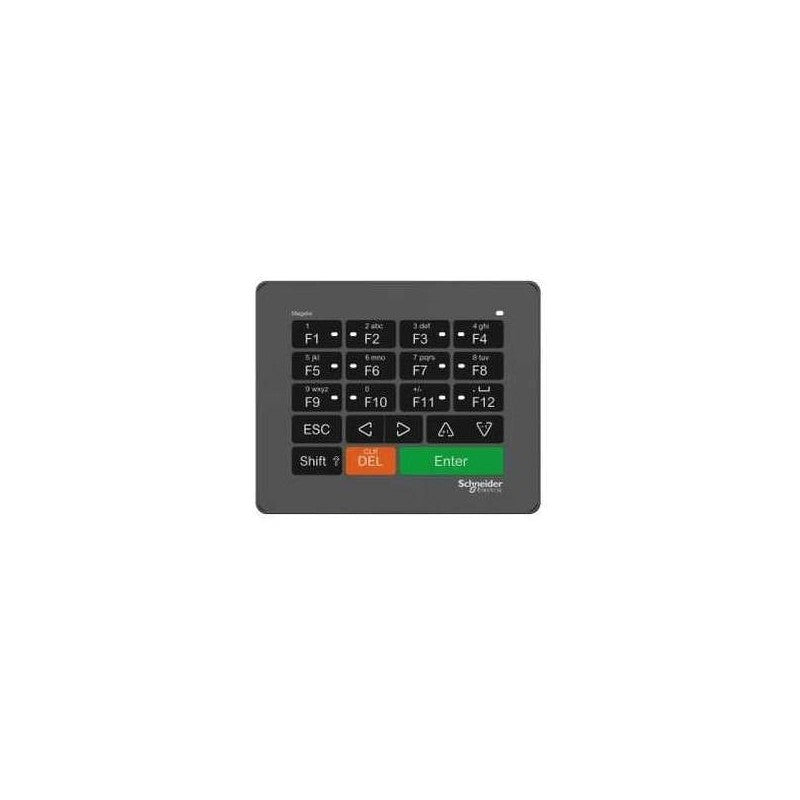

This USB keypad accessory is connected via a USB cable and compatible with Harmony HMI range terminals. HMIZKB1 is ideally used as function keys together with an HMI terminal where repetitive and reliable operations in dirty environments are required, while keeping the touch panel clean and protected. It is IP65 protected and has 12 function keys. The Keyboard keys can be used in two modes namely the function key mode and the entry mode with alphanumeric. It enables operators to have continuous control on the process without finger contact on potentially contaminated screens in industries such as food & beverage. It offers water-resistance and can operate in harsh environments. The users can select small size HMIs and use USB Keyboard to save the control panel space. It weighs 0.150Kg. It is intended for use in industrial applications like food and beverage, machine tool, and packaging. It is compatible with HMIGTO, HMIGXO, HMISTU, and HMISCU terminals. It is an Ideal complement to Harmony HMI series for direct access to functions without the need to touch the screen.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Harmony HMIZ |
| Product or Component Type | Keyboard |
| Product Compatibility | HMIGXO HMISTU HMISTO HMIGTO HMISCU |
| Device Application | Industrial machines Food and beverage |
| Provided equipment | 1 x User Manual 1 x tightening wrench 1 x anti-rotation tee 1 x USB cable type A/mini-B 5.9 ft (1.8 m) 1 x USB type mini-B cable clamp 1 x fixing nut 1 x replaceable label for function keys |
Complementary
| Characteristic | Value(s) |
|---|---|
| Software designation | Vijeo Designer >= V6.2 |
| Connector Type | Mini B USB |
| Number of key | 20 |
| Number of customisable keys | 12 with integrated LEDs |
| Colour of cover | Front dark grey |
| [Us] rated supply voltage | 5 V DC USB 2.0 |
| Supply voltage limits | 4.75â¦5.25 V DC |
| Power Consumption in W | 0.75 W |
| Shock resistance | 147 m/s²3 chocks in each direction X, Y and Z IEC 61131-2 |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4 |
| Mounting Location | Flat surface |
| Quantity per Set | 1 piece |
| Height | 3.1 in (80 mm) |
| Width | 3.8 in (97.6 mm) |
| Depth | 1.2 in (31.5 mm) |
| Product Weight | 0.33 lb(US) (0.15 kg) |
