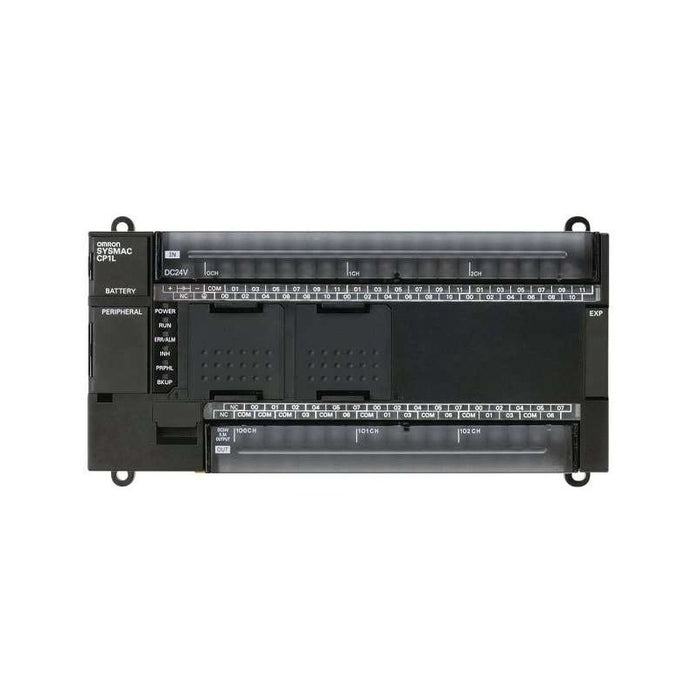

The Omron CP1L-M60DR-A is a compact high-performance PLC CPU unit from the CP1L series, designed for industrial machine automation and control applications. This unit features 36 digital inputs operating at 24 V DC, 24 relay outputs with normally-open contacts rated at 2 A, and a universal 100-240 V AC power supply. It offers 10K steps of program capacity and 32K words of data memory, with support for up to three CP1W expansion modules for enhanced I/O flexibility. The controller includes a peripheral USB port for programming and configuration, four high-speed counters up to 100 kHz, pulse output capability for two-axis positioning control, and six interrupt inputs. Programming is accomplished using Omron's CX-One software suite, with support for ladder logic and Structured Text languages. The unit features battery backup for memory retention and is suitable for DIN rail or chassis mounting.
Item Details
- Brand Name: Omron
- Manufacturer: Omron Industrial Automation
- Item Type Name: Programmable Logic Controller CPU Unit
- Product Family / Series: CP1L Series
- Model Number: CP1L-M60DR-A
- Series: SYSMAC CP1L
Product Specifications
- digital_inputs: 36 (24 V DC)
- digital_outputs: 24 (Relay, NO contact type)
- relay_output_rating: 2 A
- power_supply: 100-240 V AC (50/60 Hz)
- program_memory: 10K steps
- data_memory: 32K words
- high_speed_counters: 4 axes, 100 kHz (single-phase)
- pulse_output: 2 axes
- interrupt_inputs: 6
- instruction_execution_time: 0.55 µs (minimum, basic instructions)
- total_io_points: 60 built-in
- max_io_expansion: 180 I/O points
- expandable_modules: 3 modules maximum
- communication_interface: USB (peripheral port)
- optional_communication: RS-232C or RS-485 via option boards
- operating_temperature: 0°C to 55°C
- mounting_type: DIN rail or chassis mount
Additional Details
- Certifications / Approvals: CE, cULus, Lloyd, NK
- Memory Backup: Battery backup
- Programming Software: CX-One
- Programming Languages: Ladder logic, Structured Text (ST)
- Rohs Compliant: Yes
- Product Status: Active
Measurements
- Weight: 820 g
- Dimensions: 195 mm (W) × 110 mm (H) × 85 mm (D)
