Main
| Characteristic | Value(s) |
|---|---|
| Range Compatibility | Lexium 32i |
| Device short name | BMI |

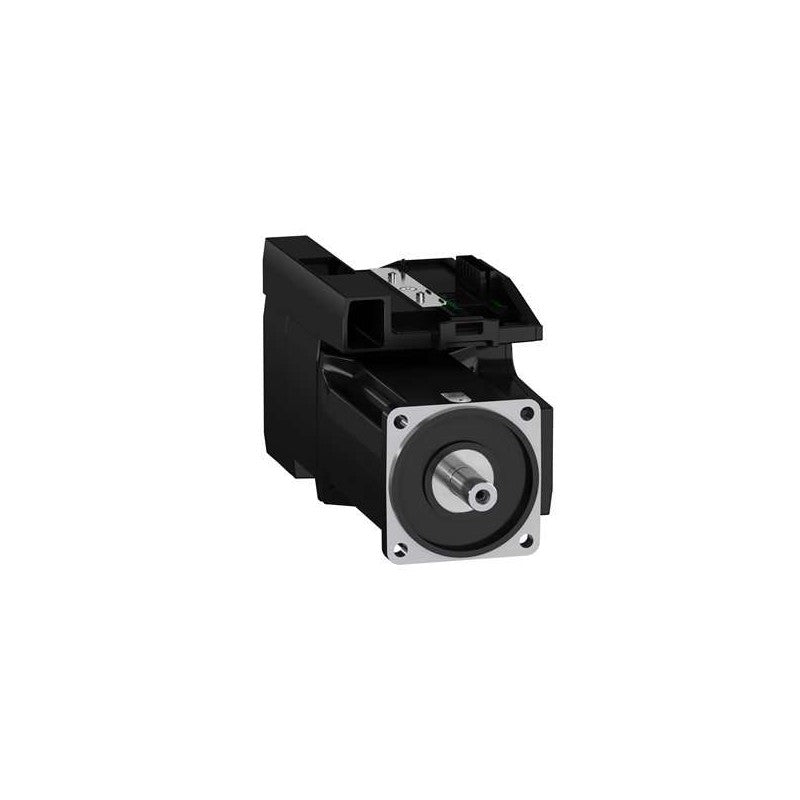

| Product or Component Type | Servo motor with power stage |
Complementary
| Characteristic | Value(s) |
|---|---|
| Maximum mechanical speed | 6000 rpm |
| [Us] rated supply voltage | 208...480 V - 15...10 % |
| Supply voltage limits | 208â¦480 V |
| Phase | Three phase |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network frequency limits | 47.5â¦63 Hz |
| EMC filter | Integrated |
| Continuous output current | 4 A 8 kHz |
| Output current 3s peak | 12 A 400 V 3 s |
| Continuous stall current | 4 A |
| Continuous stall torque | 75.2 lbf.in (8.5 N.m) 208...480 V three phase |
| Peak stall torque | 169.9 lbf.in (19.2 N.m) 400 V three phase 169.9 lbf.in (19.2 N.m) 480 V three phase 169.9 lbf.in (19.2 N.m) 208 V three phase |
| Nominal output power | 1000 W 208 V three phase 2000 W 400 V three phase 2100 W 480 V three phase |
| Nominal torque | 63.7 lbf.in (7.2 N.m) 208 V three phase 60.2 lbf.in (6.8 N.m) 400 V three phase 49.6 lbf.in (5.6 N.m) 480 V three phase |
| Nominal speed | 1500 rpm 208 V three phase 3000 rpm 400 V three phase 3700 rpm 480 V three phase |
| Maximum current Irms | 26.7 A 208 V, three phase 26.7 A 400 V, three phase 26.7 A 480 V, three phase |
| Product compatibility | Drive control unit LXM32i CANopen Drive control unit LXM32i EtherCAT |
| Shaft end | Keyed |
| Second shaft | Without second shaft end |
| Shaft diameter | 0.7 in (19 mm) |
| Shaft length | 1.6 in (40 mm) |
| key width | 0.2 in (6 mm) |
| Feedback type | Absolute single turn SinCos Hiperface |
| Speed feedback resolution | 32768 points/turn |
| Holding brake | Without |
| Mounting Support | International standard flange |
| Motor flange size | 3.9 in (100 mm) |
| Electrical Connection | Printed circuit board connector |
| Torque constant | 1.7 N.m/A 68 °F (20 °C) |
| Back emf constant | 112 V/krpm 68 °F (20 °C) |
| Number of motor poles | 10 |
| Rotor inertia | 9.37 kg.cm² |
| Stator resistance | 2.31 Ohm 68 °F (20 °C) |
| Stator inductance | 11.43 mH 68 °F (20 °C) |
| Stator electrical time constant | 4.95 ms 68 °F (20 °C) |
| Maximum radial force Fr | 1050 N 1000 rpm 830 N 2000 rpm 730 N 3000 rpm 660 N 4000 rpm 610 N 5000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| type of cooling | Natural convection |
| Length | 11.8 in (299 mm) |
| Number of motor stacks | 3 |
| Centring collar diameter | 3.7 in (95 mm) |
| centring collar depth | 0.1 in (3.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.4 in (9 mm) |
| Circle diameter of the mounting holes | 4.5 in (115 mm) |
| Distance shaft shoulder-flange | 0.1 in (3.5 mm) |
