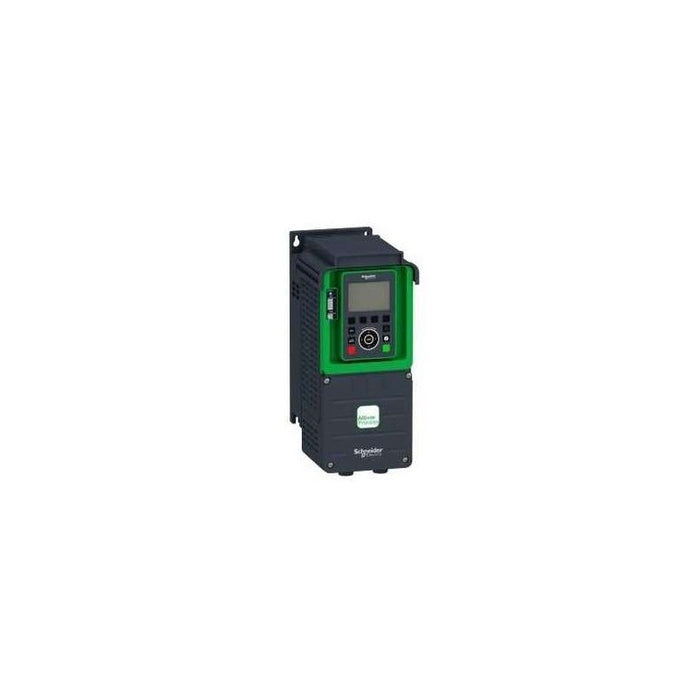

The Schneider Electric ATV930U55N4 is a 5.5 kW variable speed drive from the Altivar Process ATV900 series, engineered for precision control of three-phase asynchronous and synchronous motors in demanding industrial environments. This drive features an integrated braking chopper unit and category C2/C3 EMC filter, ensuring compliance with electromagnetic compatibility standards. Designed specifically for process industries including oil and gas, mining, minerals and metals, food and beverage, and water and wastewater applications, it offers advanced connectivity via integrated dual-port Ethernet/IP and Modbus TCP protocols with Achilles Level 2 cybersecurity certification. The drive supports multiple control modes including sensorless vector control, flux vector control, and V/Hz operation, with switching frequencies adjustable from 2 to 16 kHz. Key features include embedded web server for remote monitoring, data logging for predictive maintenance, energy monitoring and optimization capabilities, configurable analog and digital I/O, and wall-mount installation with IP21 environmental protection rating.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: Variable Speed Drive
- Product Family / Series: Altivar Process ATV900
- Model Series: ATV930
- Device Application: Industrial process automation
- Upc: 3606480883309
Product Specifications
- motor_power_normal_duty: 5.5 kW / 7.5 HP
- motor_power_heavy_duty: 4.0 kW / 5 HP
- supply_voltage: 380-480 V AC, 3-phase, 50/60 Hz
- voltage_tolerance: -15% to +10%
- input_current_380v_normal: 10.4 A
- input_current_480v_normal: 9.1 A
- input_current_380v_heavy: 8.0 A
- input_current_480v_heavy: 7.2 A
- output_current_normal_duty: 12.7 A at 4 kHz
- output_current_heavy_duty: 9.3 A at 4 kHz
- overload_capacity_normal: 120%
- overload_capacity_heavy: 150%
- switching_frequency: 2-16 kHz adjustable, default 4 kHz
- output_frequency_range: 0-599 Hz
- apparent_power_480v_normal: 7.6 kVA
- apparent_power_480v_heavy: 6.0 kVA
- control_modes: Sensorless vector, flux vector, V/Hz, synchronous motor control
- communication_protocols: Ethernet/IP, Modbus TCP, Modbus serial (integrated)
- optional_protocols: Profibus DP V1, PROFINET, DeviceNet, EtherCAT, CANopen
- analog_inputs: 3 x software-configurable (0-10 V DC / 0-20 mA / 4-20 mA), 12-bit resolution
- digital_inputs: 8 x configurable (DI1-DI8)
- protection_rating: IP21 / NEMA 1
- cooling_method: Forced convection (fan)
- operating_temperature: -15°C to +50°C (no derating)
- emc_compliance: Integrated EMC filter category C2/C3
- environmental_class: 3C3 (chemical pollution), 3S3 (dust pollution) per IEC 60721-3-3
- power_dissipation_natural: 36 W at 380 V, 4 kHz
- power_dissipation_forced: 145 W at 380 V, 4 kHz
Additional Details
- Certifications / Approvals: CE marking, IEC 61508 SIL1, EN 954-1 Category 1
- Integrated Features: Braking chopper unit, EMC filter, web server, data logging, energy monitoring
- Cybersecurity: Achilles Level 2 certified
- Mounting Orientation: Vertical (±10°)
- Display: LED graphic display terminal
Measurements
- Weight: 4.7 kg
- Width: 144 mm
- Height: 350 mm
- Depth: 203-206 mm
