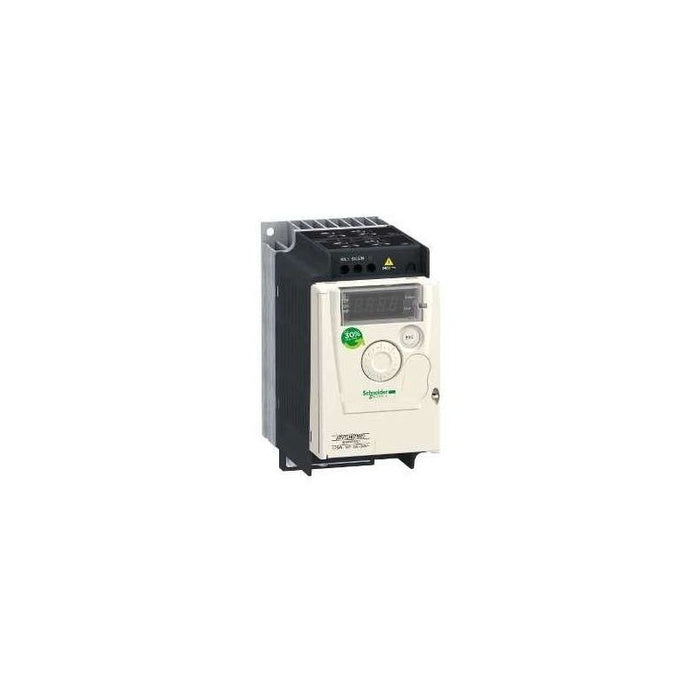

The Schneider Electric ATV12H075M3 is a compact three-phase AC variable speed drive from the Altivar 12 series, designed for controlling asynchronous induction motors in commercial equipment and simple industrial machinery. Rated at 0.75 kW (1 hp) with a supply voltage range of 200-240V AC and a maximum output current of 4.2 A, this drive features an integrated heatsink for efficient thermal management in normal operating environments. It incorporates Modbus serial communication protocol as standard, enabling seamless integration with machine control systems. The drive includes advanced functionality such as integrated PID control, multi-speed operation, and catch-on-the-fly motor restart capability. Designed for applications including conveyors, pumps, extractors, ventilation fans, access barriers, and HVAC systems, the ATV12H075M3 offers adjustable switching frequency from 2 to 16 kHz and supports output frequencies up to 400 Hz. Its compact form factor and IP20 protection rating make it suitable for panel mounting in industrial automation environments.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: Variable Speed Drive
- Product Family / Series: Altivar 12
- Model Number: ATV12H075M3
- Product Line: Square D
Product Specifications
- power_rating: 0.75 kW / 1 hp
- supply_voltage: 200-240V AC
- phase: Three-phase
- output_current: 4.2 A
- supply_frequency: 50/60 Hz
- output_frequency_range: 0.5-400 Hz
- switching_frequency: 2-16 kHz (adjustable, 4 kHz default)
- communication_protocol: Modbus
- compatible_motor_type: Induction / Asynchronous Motors
- control_type: Variable Speed Drive
- ambient_temperature_range: -10 to +40 °C
- cooling_method: Heatsink
Additional Details
- Lifecycle Status: Production
- Certifications / Approvals: IEC, UL compliant
- Enclosure Rating: IP20
- Software Compatibility: SoMove configuration software
- Rosh Compliant: No
Measurements
- Width: 72 mm / 2.83 in
- Depth: 131 mm / 5.17 in
- Height: 143 mm / 5.63 in
