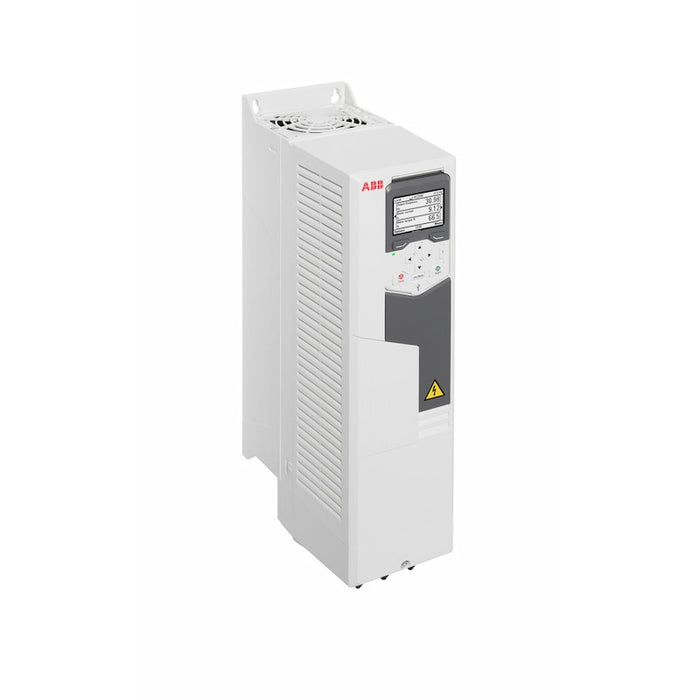

The ABB ACS580-01-026A-4 is an 11 kW wall-mounted variable frequency drive designed for general-purpose motor control in industrial applications. It is a three-phase AC drive operating at 400 V nominal voltage with a rated output current of 25 A. The drive is suitable for controlling pumps, fans, conveyors, mixers, compressors, centrifuges, and other constant or variable torque applications. Built with an IP21 enclosure for wall mounting, it features integrated control functions, dual-duty capacity supporting both light-duty and heavy-duty operation, and comprehensive built-in I/O including analog and digital inputs/outputs, relay contacts, and communication interfaces. The ACS580-01 series offers plug-and-play simplicity with intuitive setup menus, energy optimization functions, and robust construction for reliable performance in various industrial environments including food and beverage, plastics, textiles, material handling, and agriculture sectors.
Item Details
- Brand Name: ABB
- Manufacturer: ABB
- Item Type Name: Variable Frequency Drive (VFD)
- Product Family / Series: ACS580-01
- Manufacturer Part Number: 3AXD50000038960
- Frame Size: R2
Product Specifications
- power_rating_light_duty: 11 kW
- power_rating_heavy_duty: 7.5 kW
- nominal_voltage: 400 V AC
- voltage_range: 380-500 V
- output_current_light_duty: 23.8 A
- output_current_normal: 25 A
- output_current_heavy_duty: 17 A
- phases: 3-phase
- frequency_range: 0-500 Hz
- overload_capacity_light_duty: 110% for 1 minute every 5 minutes
- overload_capacity_heavy_duty: 150% for 1 minute every 5 minutes
- control_modes: Scalar (V/f), Sensorless Vector, Closed-loop Vector (with optional encoder)
- analog_inputs: 2
- digital_inputs: 6
- analog_outputs: 2
- relay_outputs: 3 contact sets
- communication_interfaces: RS-485/Modbus RTU
- safety_function: SIL 3 Safe Torque Off (STO), dual channel
- auxiliary_power_input: 24 V AC/DC
- braking_resistor_compatibility: 16-37 Ohm external resistor (not supplied)
- emc_classification: C2
- protection_rating: IP21
- power_dissipation: 322 W
- cooling_airflow: 128 m³/h (75 ft³/min)
- noise_level: 66 dBA
- recommended_fuses_iec: 32 A gG
- recommended_fuses_ul: 30 A UL Class T
Additional Details
- Mounting Type: Wall-mounted
- Enclosure Options: IP21 (standard), IP55 and flange mounting (optional)
- Operating Altitude: Sea level to 1000 m (3300 ft), derate 1% per 100 m up to 4000 m
- Typical Applications: Pumps, fans, conveyors, mixers, compressors, centrifuges, extruders, variable and constant torque applications
- Target Industries: Food and beverage, plastics, textiles, material handling, agriculture, light industry
Measurements
- Weight: 14.9 kg
- Width: 203 mm
- Depth: 229 mm
- Height: 490 mm
