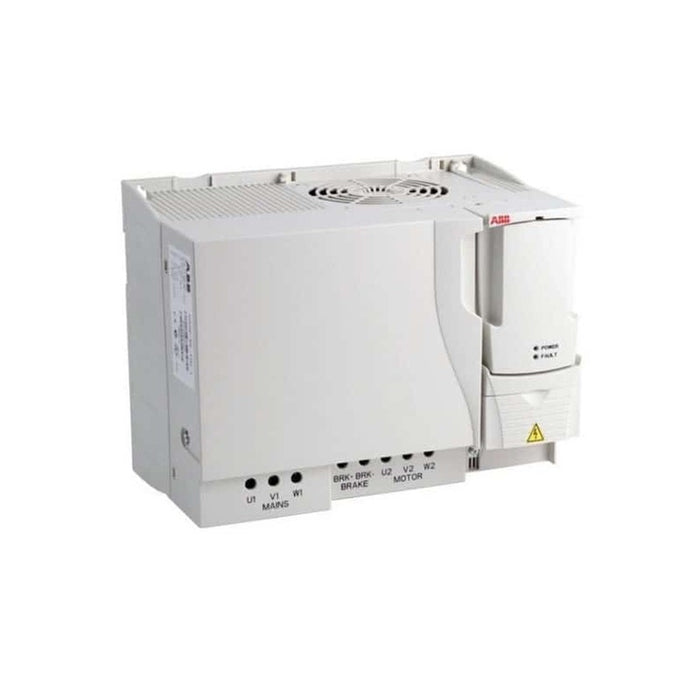

The ABB ACS355-03U-38A0-4 is a low-voltage AC machinery drive module designed for OEM machine builders, system integrators, and panel builders. It delivers 25 HP (18.7 kW) output with a rated current of 38 A, operating from a 3-phase 380-480 VAC input supply at 50/60 Hz. This compact R4 frame drive features IP20 protection and wall-mount capability. Engineered for fast installation and commissioning, the ACS355 supports sensorless vector control for both asynchronous AC induction motors and permanent magnet synchronous motors. It includes built-in features such as a brake chopper, EMC filter for second environment, Safe Torque Off function, and FlashDrop tool for rapid parameter setup without powering the drive. Typical applications span food and beverage, material handling, printing, rubber and plastics processing, and woodworking industries. The drive offers flexible connectivity options supporting industry-standard fieldbus protocols including PROFIBUS DP, CANopen, Modbus, EtherNet/IP, and PROFINET through optional adapters.
Item Details
- Brand Name: ABB
- Manufacturer: ABB
- Item Type Name: AC Machinery Drive
- Product Family / Series: ACS355
- Series: ACS355 Machinery Drives
- Model Number: ACS355-03U-38A0-4
- Frame Size: R4
- Enclosure Type: IP20 Open Type
Product Specifications
- power_rating_hp: 25 HP
- power_rating_kw: 18.7 kW
- output_current: 38 A
- input_voltage: 380-480 V AC
- input_phases: 3-phase
- output_phases: 3-phase
- frequency: 50/60 Hz
- control_method: Sensorless Vector Control
- apparent_power_output: 37 kVA
- control_supply_voltage: 24 V DC ±10%
- control_supply_current_max: 200 mA
- operating_temperature: -10 to 40 °C (50 °C with 10% derating)
- relative_humidity: <95% without condensation
- protection_class: IP20
- mounting_type: Wall-mount / Cabinet-mount
Additional Details
- Certifications / Approvals: UL, cUL, CE
- Built In Features: Brake chopper, EMC filter for 2nd environment, Safe Torque Off
- Communication Protocols: PROFIBUS DP, CANopen, Modbus, EtherNet/IP, PROFINET (via optional adapters)
- Application Macros: Up to 8 preset operating sequences
Measurements
- Weight: 4.4 kg (9.7 lb)
- Dimensions: 244 mm H × 260 mm W × 169 mm D (9.61 in × 10.24 in × 6.65 in)
