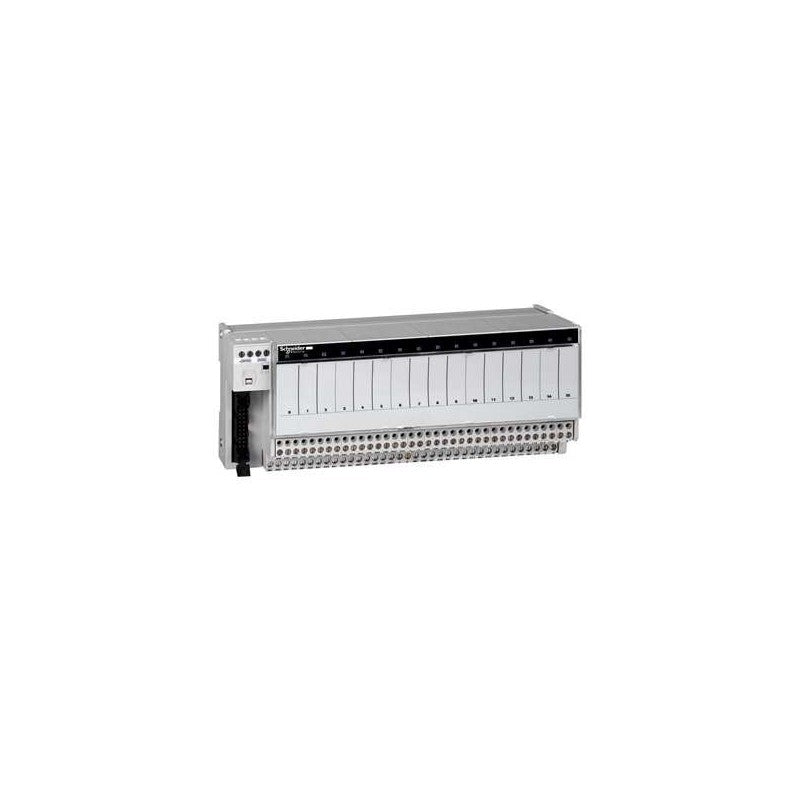

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This sub-base for plug-in relay, provides 16 channels. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.615kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. This sub-base is suitable for use with ABR7S2, ABS7SA2, ABS7SC2 and ABE7ACC20 connection sub-base accessory. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Sub-base for plug-in relay |
| Sub-base type | Output sub-base |
| [Us] rated supply voltage | 19...30 V IEC 61131-2 |
| Number of channels | 16 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
Complementary
| Characteristic | Value(s) |
|---|---|
| supply voltage type | DC |
| Product Compatibility | ABS7SC2. ABR7S2. ABS7SA2. ABE7ACC20 |
| Status LED | 1 LED per channel (Green) channel status 1 LED (Green) power ON |
| Polarity distribution | Volt-free |
| Short-circuit protection | 1 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 1 A |
| Voltage drop on power supply fuse | 0.3 V |
| Maximum current per output common | 16 A |
| [Ui] rated insulation voltage | 300 V coil circuit/contact circuits IEC 60947-1 2000 V terminals/mounting rails |
| [Uimp] rated impulse withstand voltage | 2.5 kV |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Product Weight | 1.356 lb(US) (0.615 kg) |
