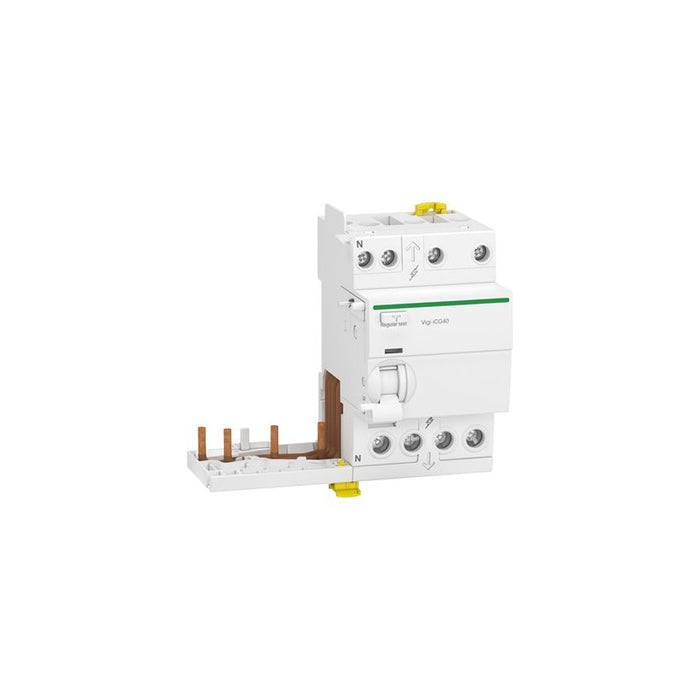

A9Y71725 Schneider Electric

A9Y71725 Schneider Electric

This Acti9 Vigi iCG40 is a modular add-on residual current devices. It is a 3P+N and rated current is 25A. The earth leakage protection class is A type with a sensitivity of 300mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. A VisiTrip window is here to indicate a fault tripping by a red mechanical indicator on the front face. This product is compliant with EN/IEC 61009-2-1 standard. Electrical endurance goes up to 10000 cycles. Mechanical endurance goes up to 20000 cycles. The Ue rated operational voltage is 400VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 4kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 6. The product color is white (RAL9003). The dimensions are (W) 108mm x (H) 99.5mm x (D) 74mm. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C.

Main

Characteristic Value(s)
Range Acti9
product name Acti9 Vigi iCG40
Product or component type Add-on residual current device
Device short name Vigi iCG40
Range compatibility Acti9 iC40
Poles description 3P + N
Neutral position Left
[In] rated current 25 A
Network type AC
Earth-leakage sensitivity 300 mA
Earth-leakage protection time delay Instantaneous
Earth-leakage protection class Type A
Standards EN/IEC 61009-2-1
Product certifications CE
Quality labels IMQ

Complementary

Characteristic Value(s)
Device location in system Group incomer
Network frequency 50/60 Hz
[Ue] rated operational voltage 400 V AC 50/60 Hz
Residual current tripping technology Voltage independent
[Ui] rated insulation voltage 440 V AC 50/60 Hz conforming to EN/IEC 61009-2-1
[Uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 61009-2-1
Local signalling Fault indication
Mounting mode Clip-on
Mounting support DIN rail
Electrical connection to mcb By screws
9 mm pitches 6
Height 99.5 mm
Width 108 mm
Depth 74 mm
Colour White
Mechanical durability 20000 cycles
Electrical durability 10000 cycles
Connections - terminals Tunnel type terminal top 1…16 mm² rigid
Tunnel type terminal top 1…10 mm² flexible
Wire stripping length 14 mm for top connection
Tightening torque 2 N.m top
Price on request
Ask for quote

Notify Me When Available

This Acti9 Vigi iCG40 is a modular add-on residual current devices. It is a 3P+N and rated current is 25A. The earth leakage protection class is A type with a sensitivity of 300mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. A VisiTrip window is here to indicate a fault tripping by a red mechanical indicator on the front face. This product is compliant with EN/IEC 61009-2-1 standard. Electrical endurance goes up to 10000 cycles. Mechanical endurance goes up to 20000 cycles. The Ue rated operational voltage is 400VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 4kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 6. The product color is white (RAL9003). The dimensions are (W) 108mm x (H) 99.5mm x (D) 74mm. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C.

Main

Characteristic Value(s)
Range Acti9
product name Acti9 Vigi iCG40
Product or component type Add-on residual current device
Device short name Vigi iCG40
Range compatibility Acti9 iC40
Poles description 3P + N
Neutral position Left
[In] rated current 25 A
Network type AC
Earth-leakage sensitivity 300 mA
Earth-leakage protection time delay Instantaneous
Earth-leakage protection class Type A
Standards EN/IEC 61009-2-1
Product certifications CE
Quality labels IMQ

Complementary

Characteristic Value(s)
Device location in system Group incomer
Network frequency 50/60 Hz
[Ue] rated operational voltage 400 V AC 50/60 Hz
Residual current tripping technology Voltage independent
[Ui] rated insulation voltage 440 V AC 50/60 Hz conforming to EN/IEC 61009-2-1
[Uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 61009-2-1
Local signalling Fault indication
Mounting mode Clip-on
Mounting support DIN rail
Electrical connection to mcb By screws
9 mm pitches 6
Height 99.5 mm
Width 108 mm
Depth 74 mm
Colour White
Mechanical durability 20000 cycles
Electrical durability 10000 cycles
Connections - terminals Tunnel type terminal top 1…16 mm² rigid
Tunnel type terminal top 1…10 mm² flexible
Wire stripping length 14 mm for top connection
Tightening torque 2 N.m top
Characteristic Value(s)
Device location in system Group incomer
Network frequency 50/60 Hz
[Ue] rated operational voltage 400 V AC 50/60 Hz
Residual current tripping technology Voltage independent
[Ui] rated insulation voltage 440 V AC 50/60 Hz conforming to EN/IEC 61009-2-1
[Uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 61009-2-1
Local signalling Fault indication
Mounting mode Clip-on
Mounting support DIN rail
Electrical connection to mcb By screws
9 mm pitches 6
Height 99.5 mm
Width 108 mm
Depth 74 mm
Colour White
Mechanical durability 20000 cycles
Electrical durability 10000 cycles
Connections - terminals Tunnel type terminal top 1…16 mm² rigid
Tunnel type terminal top 1…10 mm² flexible
Wire stripping length 14 mm for top connection
Tightening torque 2 N.m top
