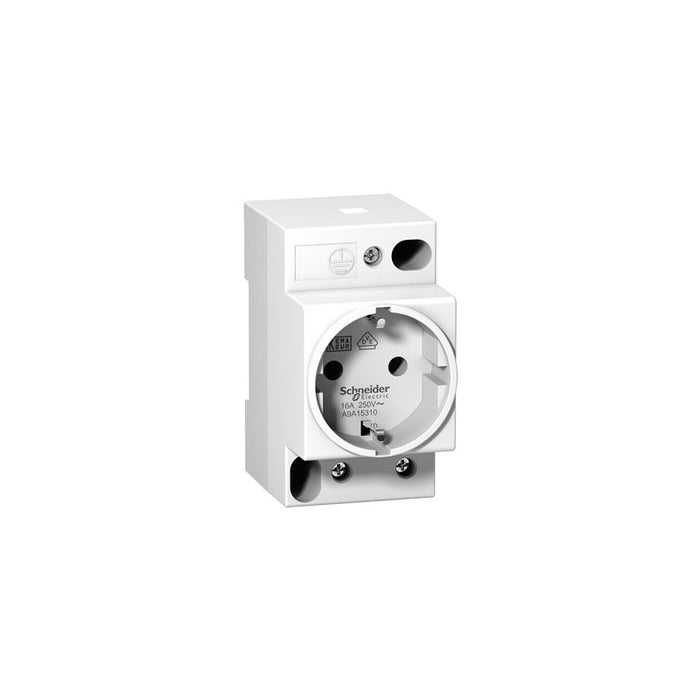

This Acti9 iPC product is a modular power socket allow low-voltage device to be connected to the electrical network. It is a standard 16A 2P+E power socket with protective cover on poles. It is compliant with KEMA VDE 0620 german standard. The tightening torque of connection is 1.2N.m for PZ2 screwdriver type. The connection allows rigid copper cables between 1 to 10mm². The connection allows flexible or with ferrule copper cables between 1 to 6mm². The width in 9mm pitches is 5. The product color is white (RAL9003). The dimensions are (W) 45mm x (H) 81mm x (D) 55mm. The weight is 100g. The degree of protection is IP20 at terminals and IP40 in enclosure. The operating temperature is -25°C to +70°C. The storage temperature is -40°C to +80°C. It complies with VDE 0620 standard, UNE_20315-1-1 and NEN 1020.
Main
| Characteristic | Value(s) |
|---|---|
| range of product | Acti9 |
| product name | Acti9 iPC |
| Product or component type | Modular socket-outlet |
| Device short name | iPC |
| Poles description | 2P + E |
Complementary
| Characteristic | Value(s) |
|---|---|
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 250 V AC 50/60 Hz |
| Mounting mode | Fixed |
| Mounting support | Symmetrical DIN rail |
| 9 mm pitches | 5 |
| Height | 81 mm |
| Width | 45 mm |
| Depth | 55 mm |
| Product weight | 100 g |
| Colour | White |
| Connections - terminals | Tunnel type terminal1 cable(s) 1â¦6 mm² flexible Tunnel type terminal1 cable(s) 1â¦10 mm² rigid |
| Wire stripping length | 13 mm |
| Tightening torque | 1.2 N.m |
