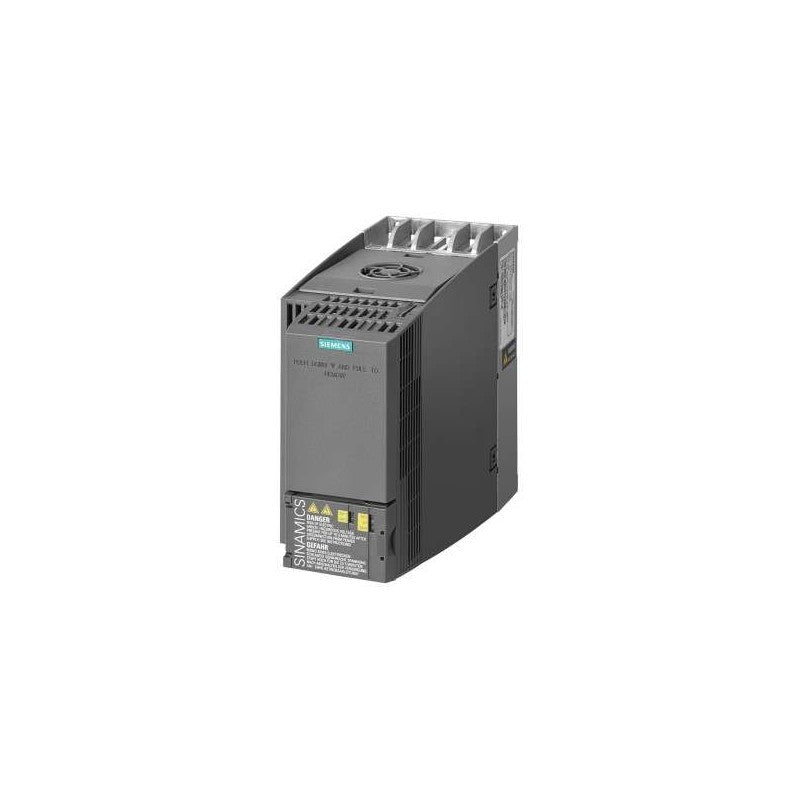

The Siemens SINAMICS G120C 6SL3210-1KE21-7AF1 is a compact AC drive designed for three-phase motor control in industrial automation applications. This variable frequency drive operates from a 380-480V AC three-phase supply with a tolerance of +10/-20% at 47-63 Hz. It provides a rated power output of 7.5 kW under low overload conditions (150% for 3 seconds) or 5.5 kW under high overload conditions (200% for 3 seconds). The unit features an integrated Class A EMC filter, PROFINET fieldbus communication, and Safe Torque Off (STO) functionality for safety applications. The I/O interface includes 6 digital inputs, 2 digital outputs, 1 analog input, and 1 analog output, plus a motor temperature sensor input supporting PTC, KTY, and Thermo-Click sensors. The drive features air cooling with an integrated fan and achieves IP20 protection rating in a compact FSB frame size.
Item Details
- Brand Name: Siemens
- Manufacturer: Siemens AG
- Item Type Name: AC Drive / Variable Frequency Drive
- Product Family / Series: SINAMICS G120C
- Frame Size: FSB
Product Specifications
- rated_power_low_overload: 7.5 kW
- rated_power_high_overload: 5.5 kW
- input_voltage: 380-480 V AC 3-phase
- voltage_tolerance: +10/-20%
- frequency_range: 47-63 Hz
- overload_capacity_low: 150% for 3s, 110% for 57s, 100% for 240s
- overload_capacity_high: 200% for 3s, 150% for 57s, 100% for 240s
- digital_inputs: 6
- digital_outputs: 2 (1 transistor, 1 relay)
- analog_inputs: 1 (differential)
- analog_outputs: 1
- motor_temperature_sensor_input: 1 (PTC/KTY/Thermo-Click, ±5°C accuracy)
- fieldbus_interface: PROFINET
- emc_filter: Class A (integrated)
- safety_function: Safe Torque Off (STO)
- cooling_method: Air cooling with integrated fan
- cooling_air_requirement: 0.009 m³/s
- degree_of_protection: IP20 / UL Open Type
- operating_temperature: -10 to +40 °C
- storage_temperature: -25 to +55 °C
- transport_temperature: -40 to +70 °C
- relative_humidity_max: 95% at 40°C (non-condensing)
- installation_altitude_max: 1000 m
- power_cable_conductor_cross_section: 4.0 to 6.0 mm² (AWG 12 to AWG 10)
- signal_cable_conductor_cross_section: 0.15 to 1.5 mm² (AWG 24 to AWG 16)
- external_power_supply_required: 24 V DC
Additional Details
- Country of Origin*: GB
- Certifications / Approvals: UL, cUL, CE, C-Tick (RCM)
- Compliance Standards: EMC Directive 2004/108/EC, Low-Voltage Directive 2006/95/EC
- Ean: 4042948663851
- Customs Tariff Number: 85044095
*Country of origin may vary.
Measurements
- Weight: 3 kg
- Dimensions: 196 x 100 x 225.4 mm (H x W x D)
