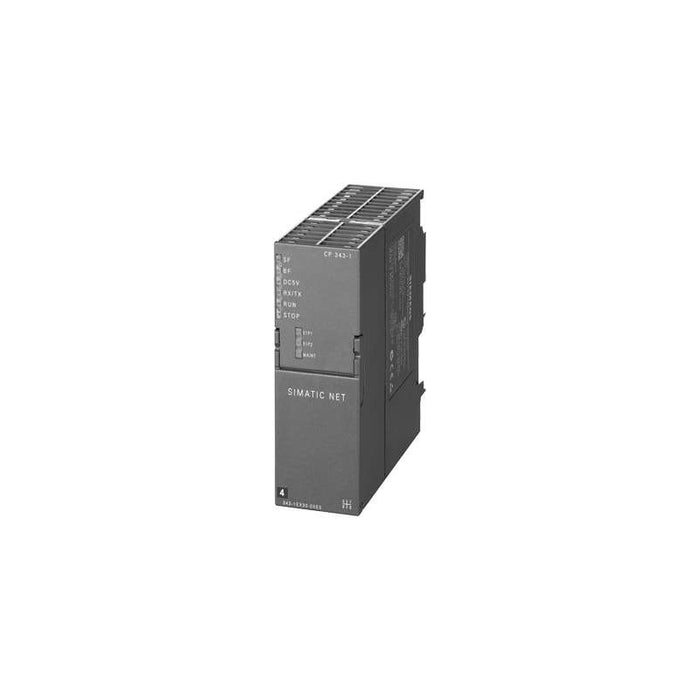

The Siemens 6GK7343-1EX30-0XE0 CP 343-1 is an advanced Industrial Ethernet communication processor designed for SIMATIC S7-300 programmable logic controllers. This module connects S7-300 PLCs to Industrial Ethernet networks via ISO and TCP/IP protocols, functioning as both a PROFINET IO controller and PROFINET IO device. It features an integrated 2-port switch with ERTEC 200 chipset and dual RJ45 connectors supporting 10/100 Mbit/s Ethernet communication. The processor supports S7 communication, fetch/write operations, send/receive with and without RFC1006, multicast, DHCP, NTP time synchronization, and comprehensive diagnostics. The module enables up to 32 active connections for open communication using SEND/RECEIVE blocks and supports standard IT functions including HTTP, FTP, SNMP, and DCP protocols. Configuration is performed via STEP 7 or TIA Portal software, and the module can be initialized via LAN for flexible commissioning.
Item Details
- Brand Name: Siemens
- Manufacturer: Siemens AG
- Item Type Name: Communication Processor Module
- Product Family / Series: SIMATIC NET CP 343-1
- Model Designation: CP 343-1
- Article Number: 6GK7343-1EX30-0XE0
Product Specifications
- supply_voltage: 24 V DC
- power_consumption: 5.8 W
- ethernet_ports: 2x RJ45
- network_speed: 10/100 Mbit/s
- switch_type: Integrated 2-port ERTEC 200
- profinet_io_controller: Yes
- profinet_io_device: Yes
- max_open_connections: 16
- max_iso_connection_data: 8 KiByte
- max_pn_io_input_data_per_device: 1433 byte
- max_pn_io_output_data_per_device: 1433 byte
- protocols_supported: ISO, TCP/IP, UDP, RFC1006, S7 communication, DHCP, multicast, SNMP, LLDP, NTP, DCP
- operating_temperature: 0 to 60 °C
- storage_temperature: -40 to +70 °C
- relative_humidity_max: 95% at 25 °C without condensation
- protection_rating: IP20
Additional Details
- Mounting Type: S7-300 rail mounting
- Configuration Software: STEP 7 / TIA Portal
- Diagnostics: Advanced diagnostics with and without CPU sync
Measurements
- Weight: 0.22 kg
- Width: 40 mm
- Height: 125 mm
- Depth: 120 mm
