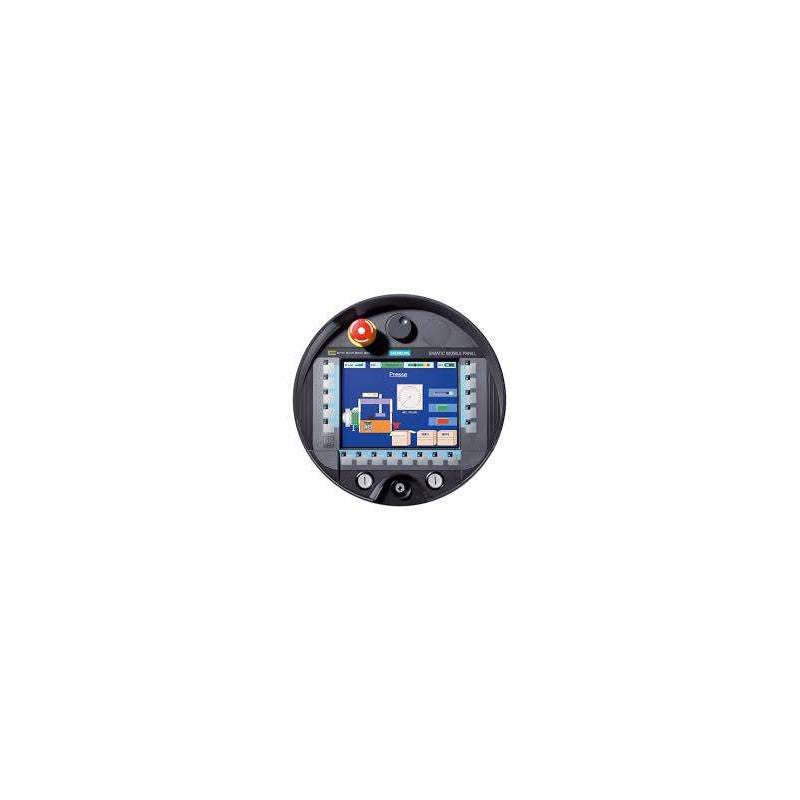

The Siemens SIMATIC Mobile Panel 277 IWLAN V2 is a wireless handheld human-machine interface device designed for mobile operation and monitoring of industrial automation systems. It features a 7.5-inch TFT touchscreen display with 640x480 pixel resolution and 65,536 colors, enabling operators to control and monitor production processes wirelessly via PROFINET over WLAN. The device is battery-powered for mobile use and includes an integrated handwheel, key-operated switch, and two illuminated pushbuttons for enhanced operator control. It supports zone recognition functionality for location-specific process visualization and is configurable using WinCC flexible Standard Version 2008 or higher, or TIA Portal V11 SP2 and higher. The panel communicates wirelessly in the 2.4 GHz band and is suitable for maintenance, diagnostics, and flexible operation in industrial plants. Power supply components including charging station and external power supply unit must be ordered separately.
Item Details
- Brand Name: Siemens
- Manufacturer: Siemens AG
- Item Type Name: Mobile HMI Panel
- Product Family / Series: SIMATIC HMI Mobile Panel 277 IWLAN
- Model Designation: Mobile Panel 277 IWLAN V2
- Part Number: 6AV6645-0DE01-0AX1
Product Specifications
- display_size: 7.5 in
- display_type: TFT touchscreen
- display_resolution: 640 x 480 pixels
- color_depth: 65,536 colors
- function_keys: 18 with LED
- wireless_interface: IWLAN (2.4 GHz band)
- communication_protocol: PROFINET
- battery_voltage: 7.2 V DC
- user_memory: 6 MB
- operating_temperature: 0 to 40 °C
- configuration_software: WinCC flexible Standard Version 2008 or higher, TIA Portal V11 SP2 or higher
Additional Details
- Country of Origin*: Germany
- Lifecycle Status: Product cancellation (PM410)
- Certifications / Approvals: UL 60950-1, CSA C22.2 No. 60950-1
- Regional Compliance: For use outside the EU
- Ean: 4025515079194
- Upc: 040892631517
- Commodity Code: 85371098
*Country of origin may vary.
Measurements
- Weight: 3.34 kg
- Dimensions: 290 mm diameter x 103 mm depth
- Screen Dimensions: 182 mm x 138 mm
