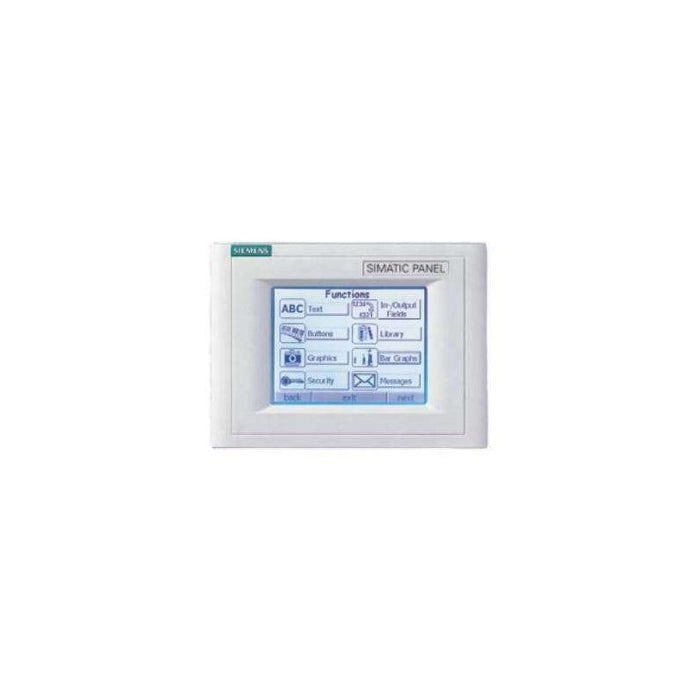

The Siemens 6AV6545-0BA15-2AX0 is a SIMATIC TP 170A touch panel designed for industrial automation and process control applications. This compact HMI features a 5.7-inch STN display with 320 x 240 pixel resolution and blue level monochrome graphics, providing clear visualization of operational data. The device is equipped with a resistive analog touchscreen for intuitive operator interaction with SIMATIC controllers. It supports MPI/PROFIBUS-DP communication interfaces with transmission rates up to 1.5 Mbit/s, and optional TTY, RS232, RS422, and RS485 connectivity. Powered by a RISC 32-bit processor running Windows CE operating system, the TP 170A offers 320 kbyte data memory with Flash/RAM storage. The panel is configurable using ProTool/Lite software from Version V5.2 onwards. Designed for vertical mounting in control panels, it meets CE, UL, CSA, cULus, FM Class I Div. 2, and NEMA 4 certifications with IP20 rear protection. This model has been discontinued with TP177A or TP177B as successors.
Item Details
- Brand Name: Siemens
- Manufacturer: Siemens AG
- Item Type Name: Human Machine Interface Touch Panel
- Product Family / Series: SIMATIC HMI
- Model: TP 170A
- Part Number: 6AV6545-0BA15-2AX0
Product Specifications
- display_type: STN (Super Twisted Nematic)
- display_size: 5.7 inches
- resolution: 320 x 240 pixels
- color_type: Blue levels (monochrome)
- touchscreen_type: Resistive analog
- processor: RISC 32-bit
- operating_system: Windows CE
- data_memory: 320 kbyte
- memory_type: Flash/RAM
- communication_interfaces: MPI/PROFIBUS-DP, optional TTY, 1x RS232, 1x RS422, 1x RS485
- transmission_rate_max: 1.5 Mbit/s
- power_supply: 24 V DC
- voltage_range: 18-30 V DC
- rated_current: 0.24 A (240 mA)
- backlighting_mtbf: 50,000 hours at 25°C
- mounting_type: Vertical
- ip_rating_rear: IP20
- configuration_software: ProTool/Lite from Version V5.2
Additional Details
- Lifecycle Status: Discontinued
- Certifications / Approvals: CE, FM Class I Div. 2, UL, CSA, cULus, NEMA 4
- Successor Models: TP177A or TP177B
- Warranty Period: 1 year
- Backup Battery: No
- Pc Card Slot: No
- Cf Card Slot: No
- Usb: No
