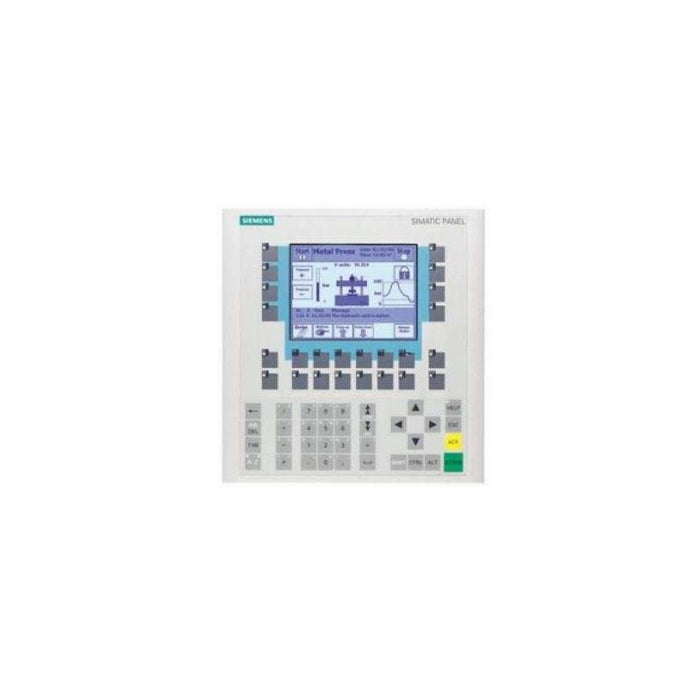

The Siemens 6AV6542-0BB15-2AX0 is a SIMATIC HMI OP170B operator panel designed for human-machine interaction in industrial automation applications. It features a 5.7-inch STN LCD color display with 320 x 240 pixel resolution and four blue levels, providing clear visualization and process monitoring. The panel includes a robust membrane keyboard with 24 function keys (18 with LEDs), 35 system keys, and numeric, alphanumeric, and hexadecimal input capabilities. Powered by a 32-bit RISC processor running at 66 MHz with 768 kB of user memory (expandable via CF card slot), it supports up to 1,000 variables, 2,000 messages, and 100 configurable images. The unit provides comprehensive connectivity through MPI/PROFIBUS-DP, RS232, RS422, and RS485 interfaces with transmission rates up to 12 Mbit/s, ensuring compatibility with Siemens S7 series and third-party PLCs. It is configurable with ProTool/Lite software version V5.2+SP2 and higher.
Item Details
- Brand Name: Siemens
- Manufacturer: Siemens
- Item Type Name: Human Machine Interface Operator Panel
- Product Family / Series: SIMATIC HMI
- Model: OP170B
Product Specifications
- display_type: STN LCD, 4 blue levels
- screen_size: 5.7 in
- resolution_horizontal: 320 pixels
- resolution_vertical: 240 pixels
- backlighting_mtbf: 50,000 h at 25°C
- processor: 32-bit RISC, 66 MHz
- user_memory: 768 kB
- memory_expansion: CF card slot
- function_keys: 24 (18 with LEDs)
- system_keys: 35
- communication_interfaces: MPI/PROFIBUS-DP, 2x RS232, 1x RS422, 1x RS485
- transmission_rate: up to 12 Mbit/s
- plc_compatibility: Siemens S7-200, S7-300/400, S5; Allen Bradley, Mitsubishi, Modicon
- max_variables: 1,000
- max_messages: 2,000
- max_configurable_images: 100
- front_protection_rating: IP65
- rear_protection_rating: IP20
- configuration_software: ProTool/Lite V5.2+SP2 or higher
Additional Details
- Lifecycle Status: Discontinued by manufacturer (April 1, 2019)
- Certifications / Approvals: CE, UL, CSA, FM Class I Div. 2
Measurements
- Weight: 1.31 kg
- Membrane Keypad Dimensions: 206.5 mm x 235.5 mm
