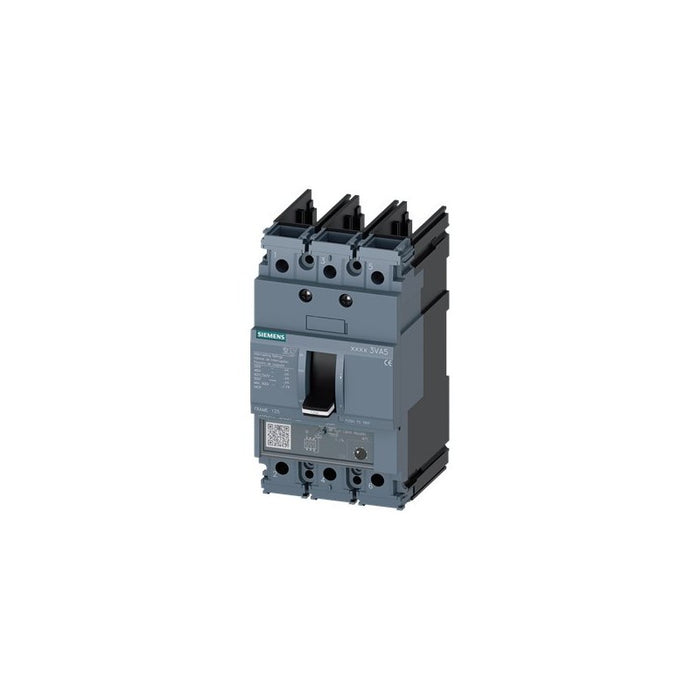

The Siemens 3VA51106EC311AA0 is a low-voltage molded case circuit breaker from the SENTRON 3VA5 series designed for industrial and commercial power distribution applications. This 3-pole circuit breaker features a UL frame 125 with Class H breaking capacity rated at 65 kA at 480V and 25 kA at 600Y/347V. It is equipped with a TM230 thermal-magnetic trip unit providing overload protection with a fixed thermal setting at 100A and adjustable instantaneous short-circuit protection ranging from 5 to 10 times the rated current. The breaker supports AC and DC applications up to 690V AC and 500V DC. Its compact fixed-mount design features IP40 enclosure rating and operates across a wide temperature range. The device complies with both IEC 60947-2 and UL489 standards, making it suitable for global deployment.
Item Details
- Brand Name: Siemens
- Manufacturer: Siemens
- Item Type Name: Molded Case Circuit Breaker
- Product Family / Series: SENTRON 3VA5
- Frame Size: 125A UL frame
- Breaking Capacity Class: Class H
Product Specifications
- poles: 3
- rated_current: 100 A
- voltage_rating_ac: 690 V AC
- voltage_rating_dc: 500 V DC
- frequency: 50/60 Hz
- breaking_capacity_480v: 65 kA
- breaking_capacity_600v: 25 kA
- trip_unit_type: TM230 Thermal Magnetic
- overload_protection: Ir = 100A (fixed)
- short_circuit_protection: Ii = 5-10 x In (adjustable)
- trip_function: Fixed Thermal, Adjustable Magnetic (FTAM)
- enclosure_rating: IP40
- operating_temperature: -25 to 70 °C
- mounting_type: Fixed
Additional Details
- Standards Compliance: IEC 60947-2, UL489
- Suitable For Reverse Feed: Yes
- Connection Type: Without lugs
Measurements
- Weight: 0.96 kg (2.116 lb)
- Dimensions: 76.2 mm W x 139.7 mm H x 93.5 mm D (3 in x 5.5 in x 3.7 in)
