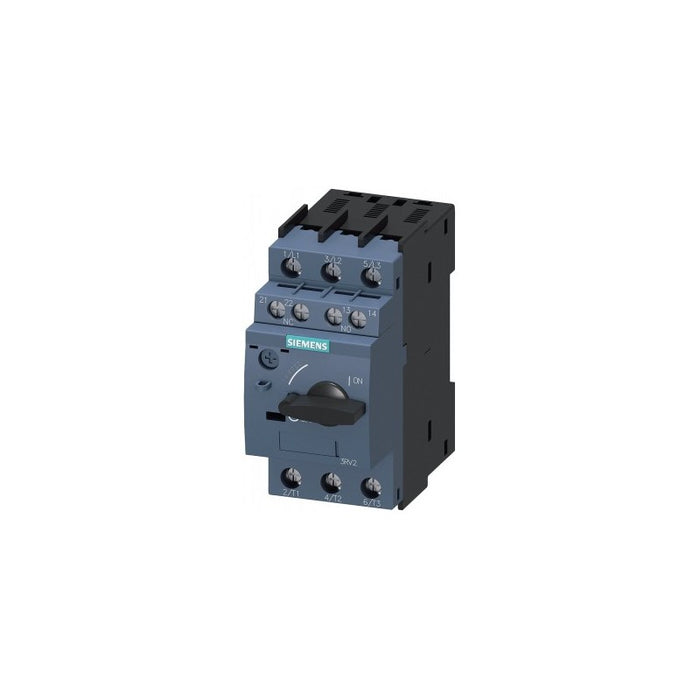

The Siemens 3RV2011-1CA15 is a SIRIUS 3RV2 series motor protection circuit breaker designed for switching and protecting three-phase motors and other electrical loads. This compact, current-limiting device features a size S00 frame with Class 10 trip characteristics and provides both thermal overload protection via adjustable release (1.8-2.5 A) and magnetic short-circuit protection (33 A instantaneous trip). It is equipped with screw terminals for easy installation and includes integrated transverse auxiliary switches (1 NO + 1 NC) for control circuit signaling. The breaker offers standard switching capacity and can be mounted on 35 mm DIN rail. It is suitable for motor applications up to 18.5 kW at 400 VAC and rated currents up to 2.5 A, with operating voltages from 220 to 690 VAC.
Item Details
- Brand Name: Siemens
- Manufacturer: Siemens
- Item Type Name: Motor Protection Circuit Breaker
- Product Family / Series: SIRIUS 3RV2
- Part Number: 3RV2011-1CA15
- Product Designation: Circuit Breaker
- Ean: 4011209841147
- Upc: 662643921892
Product Specifications
- frame_size: S00
- trip_class: Class 10
- thermal_release_adjustment_range: 1.8-2.5 A
- rated_current: 2.5 A
- short_circuit_release_current: 33 A
- rated_operational_voltage: 220-690 V AC
- short_circuit_breaking_capacity_at_240v: 100 kA
- short_circuit_breaking_capacity_at_400v: 100 kA
- short_circuit_breaking_capacity_at_500v: 100 kA
- short_circuit_breaking_capacity_at_690v: 10 kA
- operating_short_circuit_current_breaking_capacity_ics_at_240v: 100 kA
- operating_short_circuit_current_breaking_capacity_ics_at_400v: 100 kA
- operating_short_circuit_current_breaking_capacity_ics_at_500v: 100 kA
- operating_short_circuit_current_breaking_capacity_ics_at_690v: 10 kA
- number_of_poles: 3
- auxiliary_contacts: 1 NO + 1 NC (transverse auxiliary switch)
- terminal_type: Screw terminal
- switching_capacity: Standard
- power_loss_at_rated_current: 7.25 W
- protection_features: Thermal overload protection, magnetic short-circuit protection, phase failure sensitive
- mechanical_life: 100000 cycles
- motor_power_at_400v: up to 0.75 kW
- motor_power_at_480v_hp: 0.5 hp (3-phase)
- full_load_current_fla_at_480v: 2.5 A
- full_load_current_fla_at_600v: 2.5 A
- mounting: 35 mm DIN rail (snap-on and screw mounting)
- disconnector_functionality: Yes
Additional Details
- Operating Temperature Range: -50 to 80 °C
- Wire Size Range: (2) 18-14 AWG, (2) 12 AWG
Measurements
- Weight: 0.36 kg
