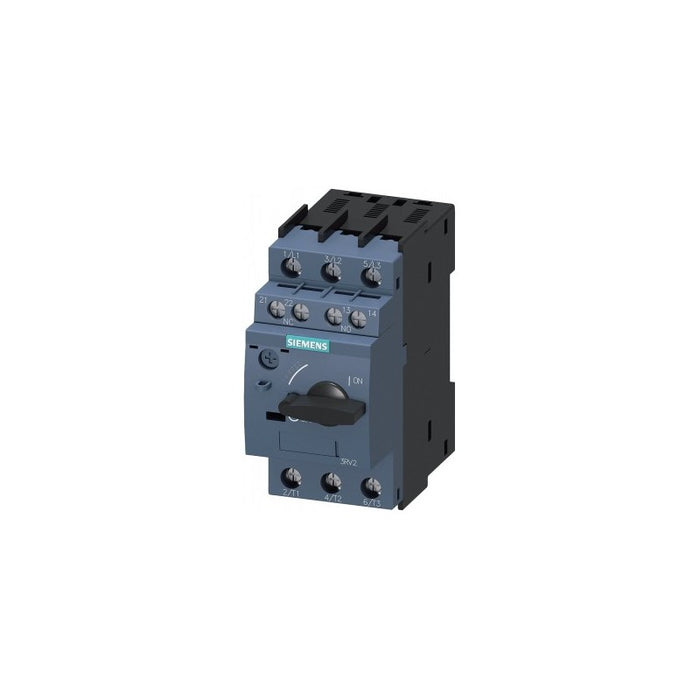

The Siemens 3RV2011-1AA15 is a SIRIUS motor protection circuit breaker designed for motor protection and load feeder applications. It features a compact S00 frame size with Class 10 thermal-magnetic trip protection, providing overload and short-circuit protection for three-phase motors. The adjustable overload release current setting ranges from 1.1 to 1.6 A, with an instantaneous short-circuit release at 21 A. The device includes integrated auxiliary contacts (1 NO + 1 NC) for control and signaling functions. It is suitable for use in AC circuits up to 690 V and offers screw terminal connections for easy installation on standard DIN rail mounting. The circuit breaker is phase failure sensitive and provides IP20 degree of protection, making it ideal for industrial motor control applications.
Item Details
- Brand Name: SIRIUS
- Manufacturer: Siemens
- Item Type Name: Motor Protection Circuit Breaker
- Product Family / Series: 3RV2
- Part Number: 3RV2011-1AA15
- Ean: 4011209841109
Product Specifications
- frame_size: S00
- trip_class: Class 10
- adjustable_overload_release: 1.1 - 1.6 A
- short_circuit_release: 21 A
- rated_operational_voltage: 690 V AC
- rated_uninterrupted_current: 1.6 A
- insulation_voltage: 690 V AC
- rated_power_at_400v_ac3: 0.55 kW
- rated_power_at_230v_ac3: 0.25 kW
- rated_power_at_460_480v: 1 hp
- rated_power_at_575_600v: 0.8 hp
- short_circuit_breaking_capacity_at_400v: 100 kA
- surge_voltage_resistance: 6 kV
- frequency: 50/60 Hz
- number_of_poles: 3
- auxiliary_contacts: 1 NO + 1 NC
- connection_type: Screw terminal
- wire_size: 20-16 AWG, 18-14 AWG
- power_loss_per_pole: 2.4 W
- total_power_loss: 7.25 W
- mounting: DIN rail (35 mm)
- degree_of_protection: IP20
- operating_temperature: -20 to +60 °C
- shock_resistance: 25 g / 11 ms
Additional Details
- Trip Mechanism: Thermal-magnetic
- Phase Failure Sensitivity: Yes
- Compatible Contactor Sizes: S00, S0
- Ul Contact Rating: C300 / R300
- Ul Ccn: E47705 (NLRV, NLRV7), E156943 (NKJH, NKJH7)
Measurements
- Weight: 361.8 g
- Dimensions: 97 mm H x 45 mm W x 91 mm D
