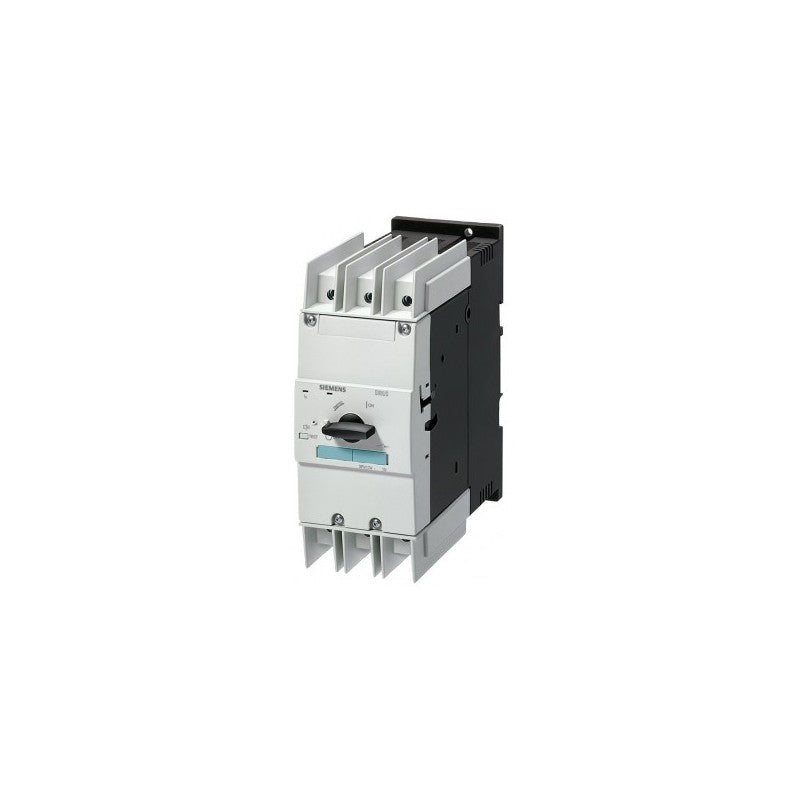

The Siemens 3RV1742-5JD10 is a 3-pole molded-case circuit breaker from the SIRIUS 3RV17 family, frame size S3, designed for plant and system protection in industrial applications. It is UL 489 and CSA C22.2 No. 5-02 approved, making it suitable for use as a branch circuit breaker in North American panels. The device features a fixed thermal overload (A) release set at 50 A and a fixed electromagnetic short-circuit (N) release at 650 A, providing both overload and short-circuit protection. It uses screw terminal connections and offers standard switching capacity. Typical applications include protecting feeders, distribution circuits, transformers, and motor branches in machine-tool, OEM, and industrial control panels. The device is DIN-rail or screw mountable and integrates with the broader SIRIUS modular system, including auxiliary contacts, shunt trips, and undervoltage releases.
Item Details
- Brand Name: Siemens
- Manufacturer: Siemens AG
- Item Type Name: Circuit Breaker (Motor Protection / Plant Protection)
- Product Family / Series: SIRIUS 3RV17 / Size S3
- Series: 3RV1
- Frame Size: S3
- Application: Plant / system protection (starter combination not required)
Product Specifications
- number_of_poles: 3
- rated_operating_voltage_Ue: 690 V AC
- thermal_overload_release_current_A_trigger: 50 A (fixed)
- magnetic_short_circuit_release_N_trigger: 650 A (fixed)
- operational_current_at_AC-3_400V: 50 A
- connection_type: Screw terminals
- short_circuit_breaking_capacity_Icu_at_400V: 100 kA
- short_circuit_breaking_capacity_Icu_at_480Y/277V_UL489: 65 kA
- switching_capacity_class: Standard switching capacity
- auxiliary_change-over_contacts: 0 (none integrated)
- mechanical_operating_cycles: 50,000
- switching_frequency_AC-3: 15 1/h
Additional Details
- Lifecycle Status: Active product
- Certifications / Approvals: UL 489, CSA C22.2 No. 5-02, IEC 60947-2
- Manufacturer Country: Made by Siemens (global manufacturing)
- Approvals: UL listed branch-circuit breaker; CSA certified
- Ambient Temperature Operating: -20 … +60 °C
- Ambient Temperature Storage Transport: -50 … +80 °C
- Installation Altitude Max: 2,000 m
Measurements
- Dimensions Hxwxd: 168 x 70 x 174 mm (6.61 x 2.75 x 6.85 in)
