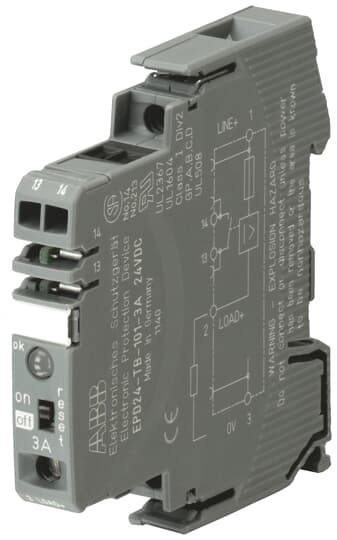

2CDE601101R2010 ABB - EPD24-TB-101-10A

2CDE601101R2010 ABB - EPD24-TB-101-10A

Technical

Product Compatibility:
Compatible with inductive load through suitable external free-wheeling circuit
Maximum Load Capacity:
20000 µF
Output Signal:
Operating condition: 13-14 closed Fault condition: 13; Potential-free auxiliary contact max. 30 V DC/0.5 A, min. 10 V DC/10 mA.
Number of Auxiliary Contacts NO:
1
Number of Channels:
1
Signal Indication Fault (LED):
Red
Tightening Torque:
Auxiliary Circuit 0.5 N·m
L/N Terminals 1.5-1.8_NU N·m
Auxiliary Circuit 0.5 N·m
L/N Terminals 1.5-1.8_NU N·m
Screw Terminal Type:
Cable Clamp
Trip Type:
Electronic
Status Indicator:
Yes
Additional Information:
Backup fuse for EPD24 not required
Recommended Screw Driver:
Screw Slot
Accessories Available:
Yes
Output:
Power MOSFET switching output (positive switching) without galvanic isolation
Remarks:
Parallel connection of outputs not permissible
Operating Humidity (RHamb):
96 hrs/95% RH/40 °C to IEC 60068-2-78, test Cab. climate class 3K3 to EN 60721

Electrical

Rated Voltage (Ur):
24 V DC
Operational Voltage:
Maximum 18..32 V DC
Rated Current (In):
10 A
Power Loss:
2.22 W

Design

Housing Material:
Moulded
RAL Number:
RAL 7012 - Basalt Grey
Color:
dark grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20191001
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Degree of Protection:
Housing IP20
Terminals IP20
Housing IP20
Terminals IP20
Pollution Degree:
2

Dimensions

Product Net Width:
12.5 mm
Product Net Height:
80 mm
Product Net Depth / Length:
83 mm
Product Net Weight:
65 g

Ordering

Package Level 1 Units:
box 4 piece
Package Level 1 Gross Weight:
0.366 kg
E-Number (Norway):
1655087
E-Number (Sweden):
2063007

Certificates and Declarations

Installation

Mounting on DIN Rail:
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

External Classifications and Standards

ETIM 9:
EC003538 - Device circuit breaker
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
UNSPSC:
39121636
eClass:
V11.0 : 27141901
IDEA Granular Category Code (IGCC):
4991 >> Current limiter
Object Classification Code:
F
Standards:
UL 2367 recognized
CSA 22.2
UL1604
UL 2367 recognized
CSA 22.2
UL1604
Certification Agency:
UKCA
Standardization Body:
CSA
Price on request
Ask for quote

Notify Me When Available

Technical

Product Compatibility:
Compatible with inductive load through suitable external free-wheeling circuit
Maximum Load Capacity:
20000 µF
Output Signal:
Operating condition: 13-14 closed Fault condition: 13; Potential-free auxiliary contact max. 30 V DC/0.5 A, min. 10 V DC/10 mA.
Number of Auxiliary Contacts NO:
1
Number of Channels:
1
Signal Indication Fault (LED):
Red
Tightening Torque:
Auxiliary Circuit 0.5 N·m
L/N Terminals 1.5-1.8_NU N·m
Auxiliary Circuit 0.5 N·m
L/N Terminals 1.5-1.8_NU N·m
Screw Terminal Type:
Cable Clamp
Trip Type:
Electronic
Status Indicator:
Yes
Additional Information:
Backup fuse for EPD24 not required
Recommended Screw Driver:
Screw Slot
Accessories Available:
Yes
Output:
Power MOSFET switching output (positive switching) without galvanic isolation
Remarks:
Parallel connection of outputs not permissible
Operating Humidity (RHamb):
96 hrs/95% RH/40 °C to IEC 60068-2-78, test Cab. climate class 3K3 to EN 60721

Electrical

Rated Voltage (Ur):
24 V DC
Operational Voltage:
Maximum 18..32 V DC
Rated Current (In):
10 A
Power Loss:
2.22 W

Design

Housing Material:
Moulded
RAL Number:
RAL 7012 - Basalt Grey
Color:
dark grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20191001
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Degree of Protection:
Housing IP20
Terminals IP20
Housing IP20
Terminals IP20
Pollution Degree:
2

Dimensions

Product Net Width:
12.5 mm
Product Net Height:
80 mm
Product Net Depth / Length:
83 mm
Product Net Weight:
65 g

Ordering

Package Level 1 Units:
box 4 piece
Package Level 1 Gross Weight:
0.366 kg
E-Number (Norway):
1655087
E-Number (Sweden):
2063007

Certificates and Declarations

Installation

Mounting on DIN Rail:
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

External Classifications and Standards

ETIM 9:
EC003538 - Device circuit breaker
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
UNSPSC:
39121636
eClass:
V11.0 : 27141901
IDEA Granular Category Code (IGCC):
4991 >> Current limiter
Object Classification Code:
F
Standards:
UL 2367 recognized
CSA 22.2
UL1604
UL 2367 recognized
CSA 22.2
UL1604
Certification Agency:
UKCA
Standardization Body:
CSA
ETIM 9:
EC003538 - Device circuit breaker
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
UNSPSC:
39121636
eClass:
V11.0 : 27141901
IDEA Granular Category Code (IGCC):
4991 >> Current limiter
Object Classification Code:
F
Standards:
UL 2367 recognized
CSA 22.2
UL1604
UL 2367 recognized
CSA 22.2
UL1604
Certification Agency:
UKCA
Standardization Body:
CSA
