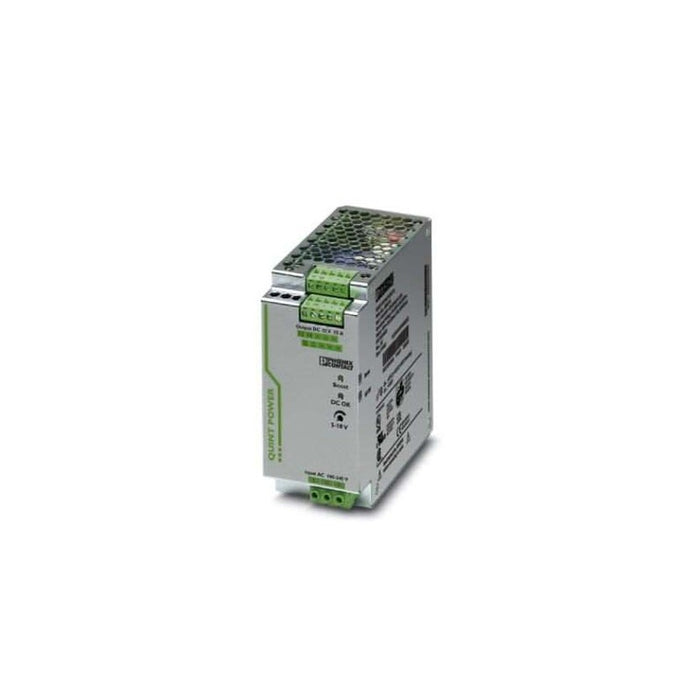

The Phoenix Contact QUINT-PS/1AC/12DC/15 is a primary-switched single-phase DIN rail power supply unit from the QUINT POWER series featuring SFB (Selective Fuse Breaking) Technology. This compact industrial power supply delivers a regulated 12 V DC output at 15 A with 180 W total power capacity. The unit accepts wide-range input voltage of 85-264 V AC or 90-350 V DC, making it suitable for diverse industrial environments. SFB technology provides six times the nominal current for 12 ms to reliably trip standard miniature circuit breakers for selective fault protection. The Power Boost power reserve ensures reliable starting of heavy loads with high inrush currents. Preventive function monitoring continuously monitors output voltage and current to diagnose critical operating states before failures occur. The adjustable output voltage ranges from 5-18 V DC, providing flexibility for various applications. Remote monitoring is enabled through an active transistor switching output and floating relay contact.
Item Details
- Brand Name: Phoenix Contact
- Manufacturer: Phoenix Contact
- Item Type Name: DIN Rail Power Supply
- Product Family / Series: QUINT POWER
- Model Number: QUINT-PS/1AC/12DC/15
- Part Number: 2866718
- Mounting Type: DIN Rail
- Connection Type: Pluggable screw connection
Product Specifications
- output_voltage_nominal: 12 V DC
- output_voltage_range_adjustable: 5-18 V DC
- output_current_nominal: 15 A
- output_current_with_power_boost: 16 A
- output_power: 180 W
- number_of_outputs: 1
- input_voltage_ac_nominal: 100-240 V AC
- input_voltage_ac_range: 85-264 V AC
- input_voltage_dc_range: 90-350 V DC
- input_frequency_range: 45-65 Hz
- input_phases: 1-phase
- efficiency: > 89%
- residual_ripple: < 10 mVPP
- control_deviation_load_change: < 1% (static), < 2% (dynamic)
- control_deviation_input_voltage: < 0.1%
- overvoltage_protection: < 25 V DC
- rise_time: < 0.5 ms
- power_loss_nominal_load: 21 W
- no_load_power_dissipation: 5 W
- insulation_voltage_input_output: 4 kV AC (type test)
- insulation_voltage_input_pe: 3.5 kV AC (type test)
- dc_ok_relay_max_switching_voltage_ac: 30 V AC
- dc_ok_relay_max_switching_voltage_dc: 24 V DC
- dc_ok_relay_continuous_load_current: 1 A
- protection_class: Class I
- degree_of_protection: IP20
Additional Details
- Country of Origin*: TH
- Certifications / Approvals: UL 508, ISA G3 Harsh Group A
- Sfb Technology: Selective Fuse Breaking - 6x nominal current for 12 ms
- Short Circuit Proof: Yes
- Parallel Connection: Yes, for redundancy and increased capacity
- Series Connection: Yes
- Climatic Class: 3K3 (EN 60721)
- Pollution Degree: 2
- Rohs Compliant: Yes
*Country of origin may vary.
Measurements
- Weight: 1.1 kg
- Dimensions: 130 x 125 x 60 mm
- Ambient Temperature Operation: -25 to 70 °C (> 60 °C Derating: 2.5%/K)
- Ambient Temperature Storage: -40 to 85 °C
- Ambient Temperature Startup: -40 °C
- Max Installation Height: 5000 m
- Max Relative Humidity: ≤ 95% at 25 °C (non-condensing)
