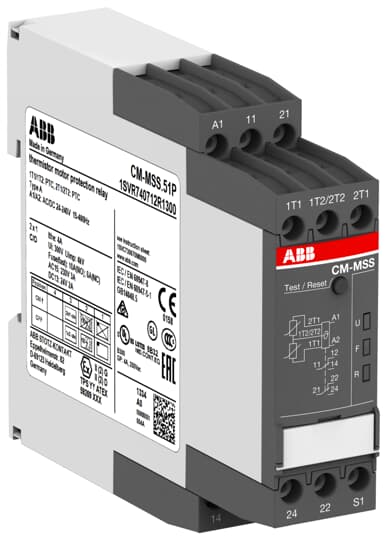

1SVR740712R1300 ABB - CM-MSS.51P

Ordering

EAN:
4013614496554
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
103.7 mm
Product Net Weight:
0.135 kg

Technical

Function:
2 sensor circuits
Auto, manual or remote reset
ATEX approved
Dynamic interrupted wire detection
Short-circuit detection, configurable
Non-volatile fault storage, configurable
Single or accumulative evalutation, configurable
2 sensor circuits
Auto, manual or remote reset
ATEX approved
Dynamic interrupted wire detection
Short-circuit detection, configurable
Non-volatile fault storage, configurable
Single or accumulative evalutation, configurable
Rated Control Supply Voltage (Us):
24 ... 240 V AC/DC
Rated Operational Voltage:
Auxiliary Circuit 250 V AC
Rated Frequency (f):
Supply Circuit 15 ... 400 Hz
Output:
2 x 1 c/o or 1 x 2 c/o contacts, configurable
Terminal Type:
Screwless Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
24 V
10 mA
24 V
10 mA
Rated Impulse Withstand Voltage (Uimp):
Output Circuit 1 / Output Circuit 2 4 kV
Output Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Output Circuit 4 kV
Rated Insulation Voltage (Ui):
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 300 V
Supply Circuit / Output Circuit 300 V
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 300 V
Supply Circuit / Output Circuit 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 30000000 cycle
Connecting Capacity:
Flexible 2x 0.5 ... 1.5 mm²
Rigid 2x 0.5 ... 1.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length:
8 mm
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
EN 50495
IEC/EN 63000
IEC/EN 60079-7
IEC/EN 60947-5-1
IEC/EN 60947-8
UL 508
CAN/CSA C22.2 No.14
EN 50495
IEC/EN 63000
IEC/EN 60079-7
IEC/EN 60947-5-1
IEC/EN 60947-8
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 2x 18-16 AWG
Rigid 2x 20-16 AWG
Flexible 2x 18-16 AWG
Rigid 2x 20-16 AWG
Pilot Duty UL/CSA:
B300
Flammability According to UL94:
V-0

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
72263a1c-d796-496d-8d10-370e90f82306 Germany
Simplified SCIP:
78c346c0-6ab5-47e8-ad23-ff9a8ef9295b Germany
7d158fa9-00c2-4c3b-a5eb-46dcebd0ac66 Germany
65952ee6-e26a-4800-9e68-950c7a88473c Czech Republic
4fb79991-76c1-4303-93b7-41121b31afff Germany
63899def-f0ae-4cd0-acc1-b848d3162b27 Croatia
956e7d92-966c-4944-b5ab-0c241f823787 Italy
ff707719-9242-4ff4-8254-e3a724a6b70e Denmark
3640cd49-5f7e-4763-ac66-ba7e76a029f0 Poland
0e62ec43-2a90-4d3e-9dc6-e19b6a9bb5cb Belgium
591f7088-3450-477b-8cd5-b48167ac2e7d Norway
0ef29f5f-dc0b-41f9-938c-8a5a8f0eed29 Finland
a3ffd1cc-0cb5-47e0-aa99-7b40d21a798d Belgium
b6e21481-e39a-4e0a-9561-4ea0d23d3a7b Hungary
0ef23a88-7944-4458-81d9-e499510be4c1 Spain
be39a70e-f7c5-4cdc-baf9-aa6152f6ceef Poland
6927fefc-f417-4d39-899a-10db44679463 France
d5a4dc3f-6467-4212-9255-ed9c2849a12f Bulgaria
4f11596c-5b7d-41b1-8651-71d2b8e6a1b6 Portugal
765db79d-4f4e-40fd-9d92-586ccd31a968 Germany
08e051d6-5175-4a0e-be9a-d045fc2ec01b Sweden
7a23abcc-b1cf-44b6-b12f-00f6c3a43e8f Sweden
20319828-6e31-4e4d-b6d9-77c7c8faad9b France
8e38caf8-f7ec-4dd4-a366-41b4f6df4fdf Hungary
26f96139-7e51-4548-9533-83b1d48730a7 Greece
4d1c971b-322c-4a16-946b-cd25d34ab9d8 Estonia
42dc2418-1e22-49b1-93e2-1ef9eeb0a7da Poland
2dad3e6f-80cb-49c7-8d4b-37f8f6e1b683 Netherlands
78c346c0-6ab5-47e8-ad23-ff9a8ef9295b Germany
7d158fa9-00c2-4c3b-a5eb-46dcebd0ac66 Germany
65952ee6-e26a-4800-9e68-950c7a88473c Czech Republic
4fb79991-76c1-4303-93b7-41121b31afff Germany
63899def-f0ae-4cd0-acc1-b848d3162b27 Croatia
956e7d92-966c-4944-b5ab-0c241f823787 Italy
ff707719-9242-4ff4-8254-e3a724a6b70e Denmark
3640cd49-5f7e-4763-ac66-ba7e76a029f0 Poland
0e62ec43-2a90-4d3e-9dc6-e19b6a9bb5cb Belgium
591f7088-3450-477b-8cd5-b48167ac2e7d Norway

ABB EcoSolutions

Certificates and Declarations

CB Certificate:
cULus Certificate:
Declaration of Conformity - UKCA:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.161 kg
Package Level 1 EAN:
4013614496554

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC002568 - Relay for thermistor protection (PTC)
ETIM 8:
EC002568 - Relay for thermistor protection (PTC)
ETIM 9:
EC002568 - Relay for thermistor protection (PTC)
eClass:
V11.0 : 27371503
UNSPSC:
39122331
E-Number (Finland):
2712513
E-Number (Norway):
4188169
E-Number (Sweden):
3860739
Price on request
Ask for quote


Notify Me When Available
