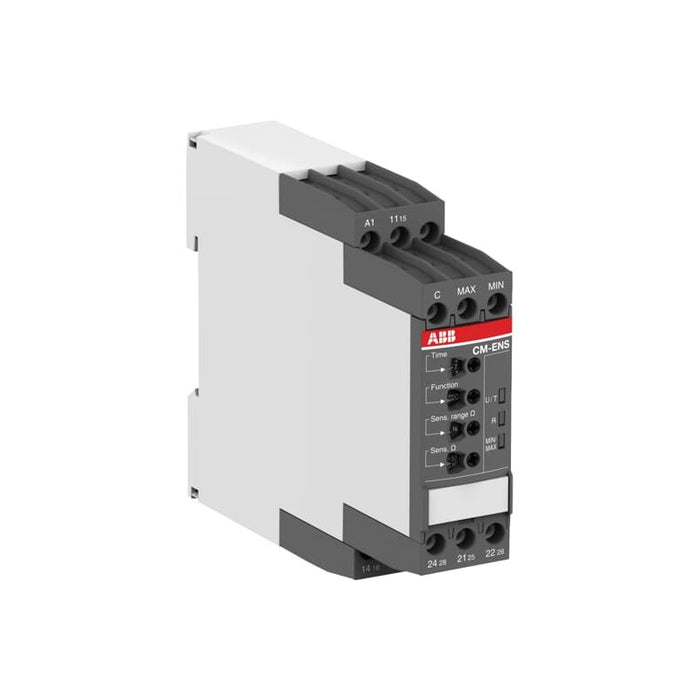

1SVR730850R0300 ABB - CM-ENS.31S

1SVR730850R0300 ABB - CM-ENS.31S

Ordering

EAN:
4013614502910
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
103.7 mm
Product Net Weight:
0.143 kg

Technical

Function:
Filling or draining monitoring
Number of Electrodes:
3
Measuring Range:
0
1 ... 1000 kΩ
0
1 ... 1000 kΩ
Time Range:
0 s or 0.1 ... 30 s tripping delay (ON or OFF)
Rated Control Supply Voltage (Us):
24 ... 240 V AC/DC
Rated Frequency (f):
Supply Circuit 50/60 Hz
Output:
2 c/o (SPDT) contacts
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
12 V
10 mA
12 V
10 mA
Rated Impulse Withstand Voltage (Uimp):
Measuring Circuit / Output Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Supply Circuit / Measuring Circuit 4 kV
Supply Circuit / Output Circuit 4 kV
Measuring Circuit / Output Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Supply Circuit / Measuring Circuit 4 kV
Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui):
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 300 V
Supply Circuit / Output Circuit 300 V
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 300 V
Supply Circuit / Output Circuit 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 1000000 cycle
Connecting Capacity:
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Control Circuit 0.9 N·m
Main Circuit 1 N·m
0.6 ... 0.8 N·m
Control Circuit 0.9 N·m
Main Circuit 1 N·m
Wire Stripping Length:
8 mm
Main Circuit 10 mm
8 mm
Main Circuit 10 mm
Recommended Screw Driver:
0.8 x 4
4.5
Pozidriv 1
0.8 x 4
4.5
Pozidriv 1
Mounting Position:
1 ... 5
1 ... 6
1 ... 5
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60255-27
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60255-27
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Tightening Torque UL/CSA:
7.08 in·lb
Pilot Duty UL/CSA:
B300

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
caf0b68d-c966-42e1-a8fa-d9203618300c Germany
Simplified SCIP:
07adcee4-df2f-4c7d-9f20-255738ec6f58 Germany
a2cc42ac-18d7-43b0-8be8-957e7d219a90 Bulgaria
34400e2c-a222-4f59-8cef-ca15c13cb57d Poland
e1e6146d-4669-4e95-8168-45e9fad1b553 Croatia
a16fc8b2-5e69-4755-820f-413e486d2ca9 Germany
7cb0dc3b-b122-4224-8058-5c7f4b297f91 Denmark
e84f4dca-6dbe-40df-968b-0003a9e3466a Czech Republic
5981233e-e655-423f-b13f-3834a3827264 Poland
6f9d8a0b-2b07-4e15-aa8c-b889fa5b3292 Portugal
f0f2d57d-06ae-4598-94f8-402b5ed76c5f Netherlands
4f686a13-3a15-4b1d-993e-484cf71ad0b6 Estonia
f358c8a7-1587-40ef-89e0-3700eaece314 Sweden
e11c13ec-233c-4974-92b8-14e9925c1dcd Spain
4302e289-dd89-4572-9d68-b15cf2ddb528 Hungary
cf4041ba-bed4-4a0c-a9e5-7062ff3b7ae0 Belgium
630d3c65-1721-4ec4-96fe-66b207a8a5b4 Sweden
168fc025-98c4-48eb-bb56-ec3650ac5e79 France
31c271b6-d3b5-47de-9dc8-7bd269a19374 France
ae1465c6-cd07-4b4f-aab0-decb680918f9 Hungary
d348b9d0-b96a-4c58-9543-9ebb41a9949f Greece
94ff343e-95ca-47fb-90f8-3cc17f5b9827 Italy
9221ace2-fe48-4d82-8f4d-2613de30c1ec Germany
2c9c1e34-9891-4b3d-8d0b-cdc1060a14a4 Belgium
be63cbb6-4dc8-4ad9-ac62-1d174c9b37fe Poland
ffffc28f-7881-42d0-a55e-6dc8a9548a6e Norway
f96fa66a-8282-4bff-bc3d-a2923681e429 Germany
0218b18b-6c6c-499e-b22f-786f2ec9313c Finland
07adcee4-df2f-4c7d-9f20-255738ec6f58 Germany
a2cc42ac-18d7-43b0-8be8-957e7d219a90 Bulgaria
34400e2c-a222-4f59-8cef-ca15c13cb57d Poland
e1e6146d-4669-4e95-8168-45e9fad1b553 Croatia
a16fc8b2-5e69-4755-820f-413e486d2ca9 Germany
7cb0dc3b-b122-4224-8058-5c7f4b297f91 Denmark
e84f4dca-6dbe-40df-968b-0003a9e3466a Czech Republic
5981233e-e655-423f-b13f-3834a3827264 Poland
6f9d8a0b-2b07-4e15-aa8c-b889fa5b3292 Portugal
f0f2d57d-06ae-4598-94f8-402b5ed76c5f Netherlands

ABB EcoSolutions

ABB EcoSolutions:
Yes

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.168 kg
Package Level 1 EAN:
4013614502910

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC001447 - (Fill) level monitoring relay
ETIM 8:
EC001447 - (Fill) level monitoring relay
ETIM 9:
EC001447 - (Fill) level monitoring relay
eClass:
V11.0 : 27371813
UNSPSC:
39122331
E-Number (Finland):
2712568
E-Number (Norway):
4189435
Price on request
Ask for quote

Notify Me When Available
