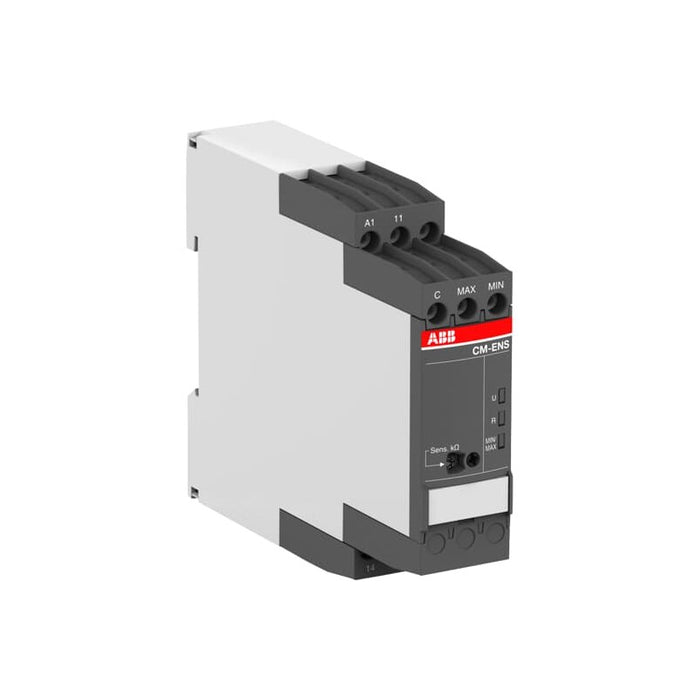

1SVR730850R0100 ABB - CM-ENS.11S

1SVR730850R0100 ABB - CM-ENS.11S

Ordering

EAN:
4013614502934
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
103.7 mm
Product Net Weight:
0.124 kg

Technical

Function:
Filling or draining monitoring
Number of Electrodes:
3
Measuring Range:
5 ... 100 kΩ
Rated Control Supply Voltage (Us):
24 ... 240 V AC/DC
Rated Frequency (f):
Supply Circuit 50/60 Hz
Output:
1 c/o (SPDT) contact
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
12 V
10 mA
12 V
10 mA
Rated Impulse Withstand Voltage (Uimp):
Measuring Circuit / Output Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Supply Circuit / Measuring Circuit 4 kV
Supply Circuit / Output Circuit 4 kV
Measuring Circuit / Output Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Supply Circuit / Measuring Circuit 4 kV
Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui):
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 300 V
Supply Circuit / Output Circuit 300 V
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 300 V
Supply Circuit / Output Circuit 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 1000000 cycle
Connecting Capacity:
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Control Circuit 0.9 N·m
Main Circuit 1 N·m
0.6 ... 0.8 N·m
Control Circuit 0.9 N·m
Main Circuit 1 N·m
Wire Stripping Length:
8 mm
Main Circuit 10 mm
8 mm
Main Circuit 10 mm
Recommended Screw Driver:
0.8 x 4
4.5
Pozidriv 1
0.8 x 4
4.5
Pozidriv 1
Mounting Position:
1 ... 5
1 ... 6
1 ... 5
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60255-27
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60255-27
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Tightening Torque UL/CSA:
7.08 in·lb
Pilot Duty UL/CSA:
B300

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
4ba8788c-849d-4398-9b5b-a49a558758f3 Germany
Simplified SCIP:
f0cfe18f-553d-4647-b6b6-e2f24549a7a9 Belgium
2edfe2ec-ec32-439c-9eb0-0d22acd0d991 Germany
090efef3-0fe0-4c77-8546-1660c9a22189 Finland
49e236f7-62f3-4331-888c-91a0ff810cda Germany
fb67750a-2ebe-4411-a05f-ee75e51c00fe Norway
2a091dc3-c6ba-4cb9-afab-0d00bc385e1a Poland
e7274378-6e04-4759-83dc-d87b17cc0891 Italy
a029d6cb-83be-4fd4-b5f7-e32b4504f1e2 Poland
ef6aad7b-2017-4f7c-87e4-39d7d87e6a37 Poland
f2c43e3d-773e-4db2-a9f9-97359ffe565e Denmark
54aae020-7711-441e-88f8-0f1cbf34bbb5 Spain
ae5078f4-abee-4d3f-8e01-8478da97a3fc Germany
c1a7db82-aad7-481d-932b-b641a3f35f76 Sweden
05e3b622-4ea4-49e1-975c-30b66d573bf1 Sweden
ab6b2277-2b1c-4e28-b46c-5e72bf4c91de France
afe38d37-5616-4cd3-ae8c-f044d1913451 France
14ff2a23-8921-4cf6-9ecf-5e2c7b257870 Hungary
2f6ca320-28dc-4ea7-8366-2c345355e4c7 Belgium
c7487365-b4e9-48c9-995e-bbe6627e6175 Bulgaria
d147c270-006d-4453-a677-69559269944a Portugal
5e894537-d6b1-4d81-acfc-f989190cc093 Hungary
3d37ab07-97ce-4280-93a8-96c1417067f2 Greece
8f008e53-5bc8-4762-8648-96c863018818 Netherlands
1e823c29-573f-4643-8e1d-3501d1892105 Germany
62f059e9-4f18-40e0-92f9-a176451b2ba2 Czech Republic
f2013fb5-ba48-42fd-9400-eaff505f4402 Croatia
6c46ba48-192f-4acc-ab54-c55ec1540658 Estonia
f0cfe18f-553d-4647-b6b6-e2f24549a7a9 Belgium
2edfe2ec-ec32-439c-9eb0-0d22acd0d991 Germany
090efef3-0fe0-4c77-8546-1660c9a22189 Finland
49e236f7-62f3-4331-888c-91a0ff810cda Germany
fb67750a-2ebe-4411-a05f-ee75e51c00fe Norway
2a091dc3-c6ba-4cb9-afab-0d00bc385e1a Poland
e7274378-6e04-4759-83dc-d87b17cc0891 Italy
a029d6cb-83be-4fd4-b5f7-e32b4504f1e2 Poland
ef6aad7b-2017-4f7c-87e4-39d7d87e6a37 Poland
f2c43e3d-773e-4db2-a9f9-97359ffe565e Denmark

ABB EcoSolutions

ABB EcoSolutions:
Yes

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.148 kg
Package Level 1 EAN:
4013614502934

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC001447 - (Fill) level monitoring relay
ETIM 8:
EC001447 - (Fill) level monitoring relay
ETIM 9:
EC001447 - (Fill) level monitoring relay
eClass:
V11.0 : 27371813
UNSPSC:
39122331
E-Number (Finland):
2712566
E-Number (Norway):
4189433
