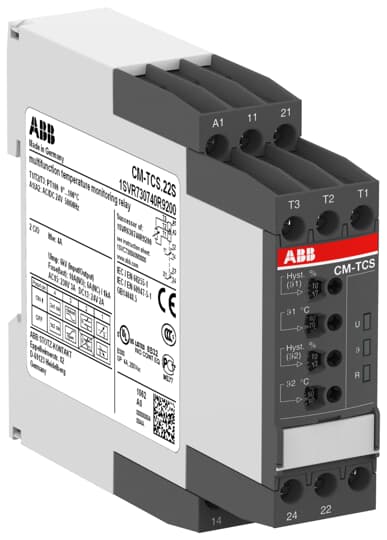

1SVR730740R9200 ABB - CM-TCS.22S

1SVR730740R9200 ABB - CM-TCS.22S

Ordering

EAN:
4016779852753
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
103.7 mm
Product Net Weight:
0.138 kg

Technical

Function:
Overtemperature monitoring
Undertemperature monitoring
Over- and undertemperature monitoring
Overtemperature monitoring
Undertemperature monitoring
Over- and undertemperature monitoring
Measuring Range:
0 ... 100 °C
Sensor Type:
PT100
Rated Control Supply Voltage (Us):
24 V AC/DC
Rated Frequency (f):
Supply Circuit 50 Hz
Supply Circuit 60 Hz
Supply Circuit DC
Supply Circuit 50 Hz
Supply Circuit 60 Hz
Supply Circuit DC
Output:
2 x 1 c/o or 1 x 2 c/o contacts, configurable
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
24 V
10 mA
24 V
10 mA
Rated Impulse Withstand Voltage (Uimp):
Measuring Circuit / Output Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Supply Circuit / Measuring Circuit 4 kV
Supply Circuit / Output Circuit 4 kV
Measuring Circuit / Output Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Supply Circuit / Measuring Circuit 4 kV
Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui):
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 300 V
Supply Circuit / Output Circuit 300 V
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 300 V
Supply Circuit / Output Circuit 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 30000000 cycle
Connecting Capacity:
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Wire Stripping Length:
8 mm
Recommended Screw Driver:
0.8 x 4
4.5
Pozidriv 1
0.8 x 4
4.5
Pozidriv 1
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.60947-5-1
IEC/EN 60255-26
IEC/EN 60255-27
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/EN 63000
UL 60947-5-1
IEC/EN 60947-5-1
CAN/CSA C22.2 No.60947-5-1
IEC/EN 60255-26
IEC/EN 60255-27
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/EN 63000
UL 60947-5-1
IEC/EN 60947-5-1

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Tightening Torque UL/CSA:
7.08 in·lb
Pilot Duty UL/CSA:
B300

Environmental

Ambient Air Temperature:
Operation -40 ... +60 °C
Storage -40 ... +85 °C
Operation -40 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
d1bbb93c-6f10-4e8e-afbe-58404a28d151 Germany
Simplified SCIP:
541d90ac-527f-41df-8deb-70eb5966b0a5 Bulgaria
84c2d170-6f5b-4132-bc87-4cc0815f84f4 Poland
3134ba56-3370-4178-9dc6-be1763a56fd1 Germany
88207ca0-d39c-42d6-a413-273711c3d34c Denmark
5b31847b-2066-4a0a-8fba-399af9b79ae6 Germany
34dc8606-4a0b-4689-a426-857331e12ddb Czech Republic
3b67ebaf-0dc2-4707-90a2-946baed6653c Belgium
1e9131e8-a809-4487-afed-2e0da7737a2f France
efb4ed09-25bd-4900-b10f-629d791b941b Poland
1aff6a15-a5db-4ebb-8dad-fe2a9b4a478d Estonia
5873297a-dc87-4ef4-887d-52fda8d967ec Sweden
d486148e-3d8c-494c-aaeb-960f08ab19d7 Belgium
a0882774-ff16-4090-99a1-00e0065b938e Spain
d94c6873-aba8-47bf-9515-617a8e726b1f Hungary
f23565fc-8dcc-4490-a75b-b74443e01f4c France
54b24a5a-a448-444a-b269-820ddf45a4c2 Finland
7f2c1529-2bf2-4f10-b04d-883ed733015f Italy
9a4c1cbe-1cd8-4283-bdd4-7d8c30f10373 Germany
62f65b34-846a-451e-b2a1-bd10dd312602 Netherlands
75beb7fe-6840-4b39-9a41-ae8899327706 Norway
b15cd15c-97fc-428b-b9cf-fc8b7e3310c2 Croatia
95c450d1-e33b-4b0d-a7a7-5e89e7937d7f Greece
4c723056-b28d-4ce1-9338-47f2b27bf8df Sweden
250d10af-701a-47d2-bdab-1dd622b3c6be Portugal
7d72f08b-60a5-4d36-b9c5-438c9ed73155 Hungary
3107356d-6037-4966-9959-6d45f9b69b6e Germany
38d58061-7cf8-4cc6-bf54-ab6c2c96d91e Poland
541d90ac-527f-41df-8deb-70eb5966b0a5 Bulgaria
84c2d170-6f5b-4132-bc87-4cc0815f84f4 Poland
3134ba56-3370-4178-9dc6-be1763a56fd1 Germany
88207ca0-d39c-42d6-a413-273711c3d34c Denmark
5b31847b-2066-4a0a-8fba-399af9b79ae6 Germany
34dc8606-4a0b-4689-a426-857331e12ddb Czech Republic
3b67ebaf-0dc2-4707-90a2-946baed6653c Belgium
1e9131e8-a809-4487-afed-2e0da7737a2f France
efb4ed09-25bd-4900-b10f-629d791b941b Poland
1aff6a15-a5db-4ebb-8dad-fe2a9b4a478d Estonia

ABB EcoSolutions

ABB EcoSolutions:
Yes

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.163 kg
Package Level 1 EAN:
4016779852753

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC001446 - Temperature monitoring relay
ETIM 8:
EC001446 - Temperature monitoring relay
ETIM 9:
EC001446 - Temperature monitoring relay
eClass:
V11.0 : 27371810
UNSPSC:
39122331
E-Number (Finland):
2712330
E-Number (Norway):
4187812
E-Number (Sweden):
3860667
