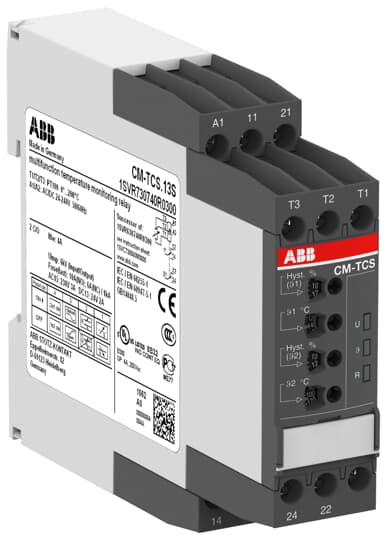

1SVR730740R0300 ABB - CM-TCS.13S

1SVR730740R0300 ABB - CM-TCS.13S

Ordering

EAN:
4016779852739
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
103.7 mm
Product Net Weight:
0.151 kg

Technical

Function:
Overtemperature monitoring
Undertemperature monitoring
Over- and undertemperature monitoring
Overtemperature monitoring
Undertemperature monitoring
Over- and undertemperature monitoring
Measuring Range:
0 ... 200 °C
Sensor Type:
PT100
Rated Control Supply Voltage (Us):
24 ... 240 V AC/DC
Rated Frequency (f):
Supply Circuit 50 Hz
Supply Circuit 60 Hz
Supply Circuit DC
Supply Circuit 50 Hz
Supply Circuit 60 Hz
Supply Circuit DC
Output:
2 x 1 c/o or 1 x 2 c/o contacts, configurable
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
24 V
10 mA
24 V
10 mA
Rated Impulse Withstand Voltage (Uimp):
Measuring Circuit / Output Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Supply Circuit / Measuring Circuit 4 kV
Supply Circuit / Output Circuit 4 kV
Measuring Circuit / Output Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Supply Circuit / Measuring Circuit 4 kV
Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui):
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 300 V
Supply Circuit / Output Circuit 300 V
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 300 V
Supply Circuit / Output Circuit 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 30000000 cycle
Connecting Capacity:
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Wire Stripping Length:
8 mm
Recommended Screw Driver:
0.8 x 4
4.5
Pozidriv 1
0.8 x 4
4.5
Pozidriv 1
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.60947-5-1
IEC/EN 60255-26
IEC/EN 60255-27
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/EN 63000
UL 60947-5-1
IEC/EN 60947-5-1
CAN/CSA C22.2 No.60947-5-1
IEC/EN 60255-26
IEC/EN 60255-27
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/EN 63000
UL 60947-5-1
IEC/EN 60947-5-1

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Tightening Torque UL/CSA:
7.08 in·lb
Pilot Duty UL/CSA:
B300

Environmental

Ambient Air Temperature:
Operation -40 ... +60 °C
Storage -40 ... +85 °C
Operation -40 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
2ed6192a-d071-4fe0-8850-e6299e4928cd Germany
Simplified SCIP:
f49a649d-f527-49b4-916e-3db5b066bc72 Italy
a0ec96e2-8624-4576-84c5-c2cf609ca06c Belgium
ba2f8808-f2e9-4f67-b1b7-fb170147bd7c Hungary
da51220f-76d8-4cc9-84f6-819578acef28 Spain
d5a891ab-3ca0-4f14-a4eb-71755f90b0e3 Estonia
ef0cb510-4696-4c4a-9801-68db4b59d2b6 Poland
5030a36a-bdbe-4b5b-bd6e-e46e855ae360 Netherlands
00cf8063-65bb-4553-a8ba-99458985d51e Portugal
36b3f65a-2947-41cd-89b9-edbe5b8f8ccf Hungary
ba16262c-11c8-44b1-ae8c-d209d4419059 Greece
06b93c3d-926e-46da-bc36-0bb9dceb2210 Sweden
fc4961cf-fd86-4a13-94a5-575da3907c41 Bulgaria
1a051d11-9dd7-44f7-8d49-bb1da95e0b0c France
481dc0ac-3562-4e3a-b651-73a9126eb53d Poland
10566f2b-5828-4a98-9f6f-3faca96e6672 Sweden
23949fcf-add9-4206-87d5-f8ea912c9d50 Germany
ba2cccb5-e38d-43fa-baa8-116f8a2d9a79 Germany
dc9e38c9-4b81-47b7-8ebd-aff1ea09e620 France
60ccdc39-7fe7-4d01-9378-641f853f1df9 Croatia
6e5c6e4d-ec41-4a14-a48b-cf6b48ce026b Czech Republic
4db759f7-6fb0-4ecf-94b1-bc24d2a4234d Germany
b6783975-0208-4e81-81b9-df73c064f14f Belgium
890ca41c-7d59-4cbc-811e-7c13f2b9c42a Poland
3b36f806-ed58-4537-9cf7-62495e193937 Norway
a1590ff4-2a7a-4ef9-85f2-6c411207b83d Denmark
a0dfb82f-54c2-4c9f-a2ce-cbecbd06dd88 Finland
fdfac905-7958-4db5-9ee5-2606d6540286 Germany
f49a649d-f527-49b4-916e-3db5b066bc72 Italy
a0ec96e2-8624-4576-84c5-c2cf609ca06c Belgium
ba2f8808-f2e9-4f67-b1b7-fb170147bd7c Hungary
da51220f-76d8-4cc9-84f6-819578acef28 Spain
d5a891ab-3ca0-4f14-a4eb-71755f90b0e3 Estonia
ef0cb510-4696-4c4a-9801-68db4b59d2b6 Poland
5030a36a-bdbe-4b5b-bd6e-e46e855ae360 Netherlands
00cf8063-65bb-4553-a8ba-99458985d51e Portugal
36b3f65a-2947-41cd-89b9-edbe5b8f8ccf Hungary
ba16262c-11c8-44b1-ae8c-d209d4419059 Greece

ABB EcoSolutions

ABB EcoSolutions:
Yes

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.176 kg
Package Level 1 EAN:
4016779852739

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC001446 - Temperature monitoring relay
ETIM 8:
EC001446 - Temperature monitoring relay
ETIM 9:
EC001446 - Temperature monitoring relay
eClass:
V11.0 : 27371810
UNSPSC:
39122331
E-Number (Finland):
2712326
E-Number (Norway):
4187810
E-Number (Sweden):
3860665
