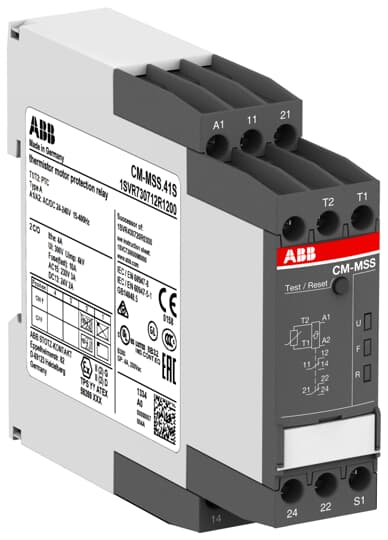

1SVR730712R1200 ABB - CM-MSS.41S

Ordering

EAN:
4013614496677
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
103.7 mm
Product Net Weight:
0.141 kg

Technical

Function:
1 sensor circuit
Auto, manual or remote reset
ATEX approved
Dynamic interrupted wire detection
Short-circuit detection, configurable
Non-volatile fault storage, configurable
1 sensor circuit
Auto, manual or remote reset
ATEX approved
Dynamic interrupted wire detection
Short-circuit detection, configurable
Non-volatile fault storage, configurable
Rated Control Supply Voltage (Us):
24 ... 240 V AC/DC
Rated Operational Voltage:
Auxiliary Circuit 250 V AC
Rated Frequency (f):
Supply Circuit 15 ... 400 Hz
Output:
2 c/o (SPDT) contacts
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
24 V
10 mA
24 V
10 mA
Rated Impulse Withstand Voltage (Uimp):
Output Circuit 1 / Output Circuit 2 4 kV
Output Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Output Circuit 4 kV
Rated Insulation Voltage (Ui):
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 300 V
Supply Circuit / Output Circuit 300 V
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 300 V
Supply Circuit / Output Circuit 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 10 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 10 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 30000000 cycle
Connecting Capacity:
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Wire Stripping Length:
8 mm
Recommended Screw Driver:
4.5
0.8 x 4
Pozidriv 1
4.5
0.8 x 4
Pozidriv 1
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
EN 50495
IEC/EN 63000
IEC/EN 60079-7
IEC/EN 60947-5-1
IEC/EN 60947-8
UL 508
CAN/CSA C22.2 No.14
EN 50495
IEC/EN 63000
IEC/EN 60079-7
IEC/EN 60947-5-1
IEC/EN 60947-8
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 2x 20-14 AWG
Rigid 1x 20-12 AWG
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 2x 20-14 AWG
Rigid 1x 20-12 AWG
Tightening Torque UL/CSA:
7.08 in·lb
Pilot Duty UL/CSA:
B300
Flammability According to UL94:
V-0

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
d4dbc433-2a16-40d0-8ee2-d005b9e2fea2 Germany
Simplified SCIP:
97fdf0e9-e196-4fa0-8b24-f288fe8e9aea France
5191e536-19e2-42c2-8888-343710fc4118 Sweden
5d6c5da3-8f68-42fd-9452-cf86ffc3d84d Germany
0579a862-9a96-4513-8980-cd4c82f17264 Sweden
0c255667-c4e9-4c28-9eb0-619a2a8c134a Poland
e47abcda-c347-4b9a-8de6-255a532151d6 France
6c416bdf-8553-4a46-81af-af49326e8d14 Hungary
ac7fed6b-1252-450f-b2e1-67786a5c142b Belgium
6ababbce-f6ab-49c4-8797-e0a3f2f21de1 Spain
85fb3565-2def-4c91-8fb1-afebf0692157 Bulgaria
ea3fb2c1-a709-4fa1-a37e-a9002337e517 Netherlands
95d5aebf-caea-4a1a-bed0-558c46030260 Estonia
9a041399-78a0-4b77-9ada-d82e3356bec9 Poland
4c7702b2-4eff-4547-ba87-e6ee9575694a Hungary
2c2ea1a2-b79e-420e-a57c-d37acf25df90 Portugal
0020ec2f-b7df-48d8-8fce-e791b7da1069 Greece
a4801e96-395e-4492-bfd7-4210043288ab Germany
abb6a722-0c77-48a9-ad1c-b5266d9b9708 Czech Republic
e54804b2-476f-4c71-82ce-52accc36c3f3 Germany
aec3a7c8-eef9-4d1b-8cdd-f86a48a801a1 Croatia
da4ef4be-a365-467b-b662-882c7a29d45d Germany
535ca094-48b0-488b-90a6-7f2dd88abbed Italy
ee217793-1566-48f9-b125-2c8fad4b9f66 Denmark
401e70ee-8d39-45c4-8a10-391b95410818 Poland
1c31e64e-be0c-44f3-9263-d14274188b4b Norway
161de862-9a33-4035-94b7-de947bffc6c0 Finland
e68db441-f9c9-40d4-9477-b376a0e8ad8f Belgium
97fdf0e9-e196-4fa0-8b24-f288fe8e9aea France
5191e536-19e2-42c2-8888-343710fc4118 Sweden
5d6c5da3-8f68-42fd-9452-cf86ffc3d84d Germany
0579a862-9a96-4513-8980-cd4c82f17264 Sweden
0c255667-c4e9-4c28-9eb0-619a2a8c134a Poland
e47abcda-c347-4b9a-8de6-255a532151d6 France
6c416bdf-8553-4a46-81af-af49326e8d14 Hungary
ac7fed6b-1252-450f-b2e1-67786a5c142b Belgium
6ababbce-f6ab-49c4-8797-e0a3f2f21de1 Spain
85fb3565-2def-4c91-8fb1-afebf0692157 Bulgaria

ABB EcoSolutions

ABB EcoSolutions:
Yes

Certificates and Declarations

CB Certificate:
cULus Certificate:
Declaration of Conformity - UKCA:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.167 kg
Package Level 1 EAN:
4013614496677

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC002568 - Relay for thermistor protection (PTC)
ETIM 8:
EC002568 - Relay for thermistor protection (PTC)
ETIM 9:
EC002568 - Relay for thermistor protection (PTC)
eClass:
V11.0 : 27371503
UNSPSC:
39122331
E-Number (Finland):
2712512
E-Number (Norway):
4187717
E-Number (Sweden):
3860738
Est. delivery between and
Estimated delivery dates are estimates only. Int'l customers allow a few more days. For more precise delivery estimates, please contact us at support@plc-direct.com. Contact us in advance for expedited shipping options.
Sale price$205.92
1-year warranty
FREE WORDWIDE SHIPPING
Condition:
$205.92
$0.00
$0.00
